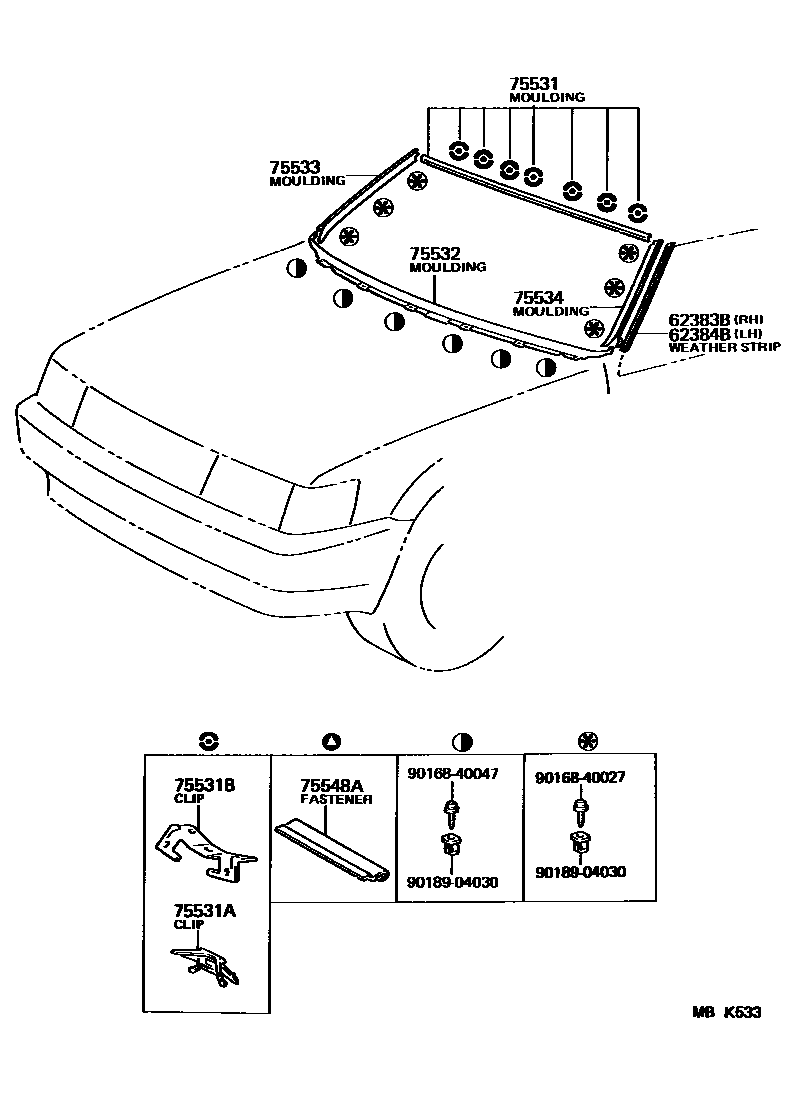

FRONT MOULDING

0001 1 0002 1

62383BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62383-12010iAE86198308-198707

62384BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62383-12010iAE86198407-198707

main62384-12010iAE86198308-198407

sub62383-12010

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12270iAE86198308-198508

main75531-12271iAE86198508-198707

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-12050iAE86198308-198707

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-12030iAE86198308-198607

sub75546-14080

main75546-14080iAE86198607-198707

75532MOULDING, WINDSHIELD, LOWER

main75535-12160iAE86198308-198707

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12240iAE86198308-198707

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12170iAE86198308-198707

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-12060iAE86198308-198707

9016840027

main90168-40027

9016840047

main90168-40047

9018904030

main90189-04030

12 parts on this diagram · 2 diagrams in section
