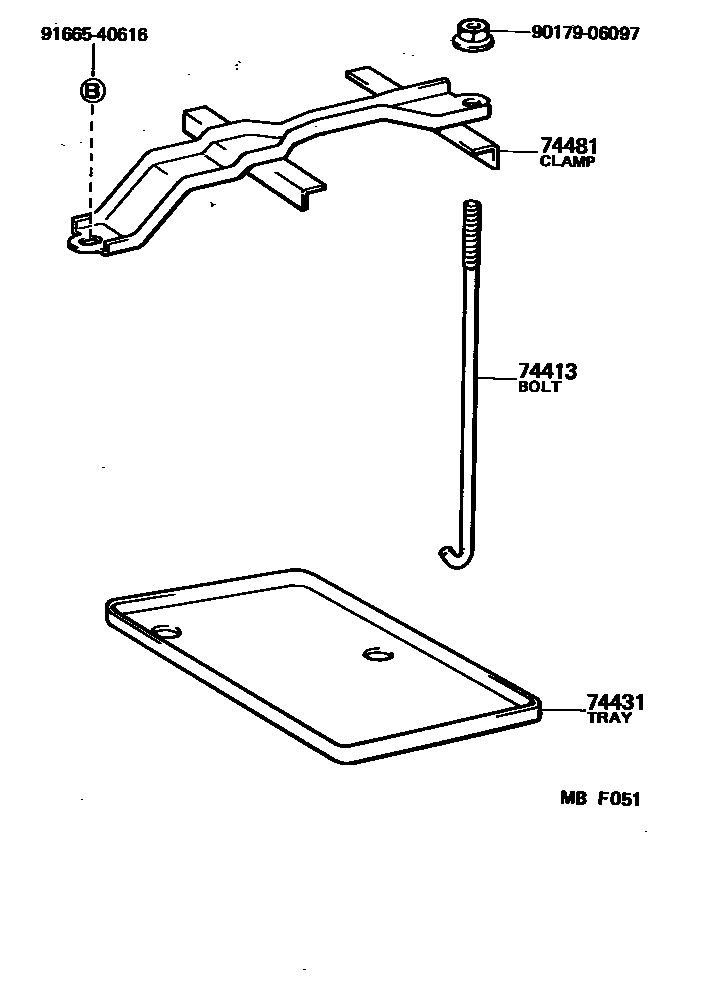

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-14010iAE86198308-198707

74431TRAY, BATTERY

main74431-14020iAE86..USA198308-198707

32C24L(N40L)

main74431-14030iAE86198308-198707

50D20L,55D23L

sub74431-52040

74481CLAMP, BATTERY HOLD DOWN

main74404-12200iAE86..USA198308-198707

32C24L(N40L)

main74404-12210iAE86198308-198707

50D20L,55D23L

9017906097

main90179-06097

9166540616

main91665-40616

5 parts on this diagram · 1 diagram in section
