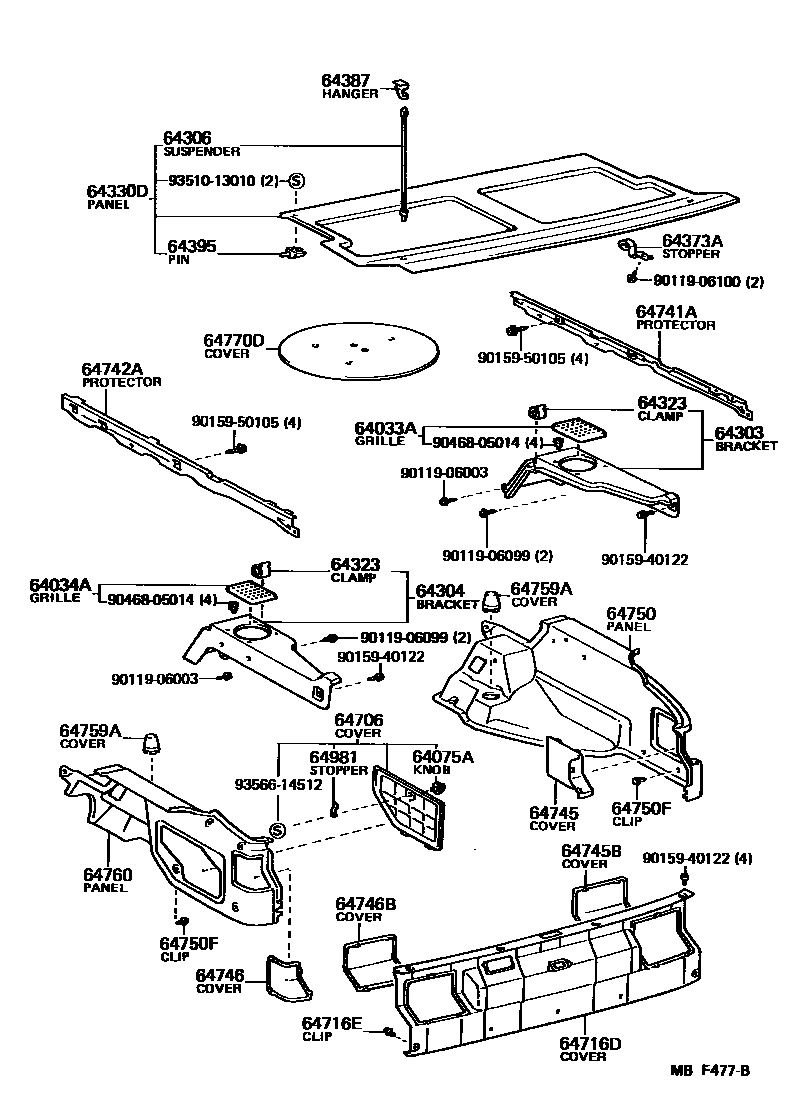

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
64075AKNOB, DECK TRIM WASHER COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323CLAMP, PACKAGE TRAY TRIM, NO.1
RH
LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64373ASTOPPER, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64706COVER SUB-ASSY, QUARTER TRIM, JACK
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
64750PANEL ASSY, DECK SIDE TRIM, RH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64759ACOVER, SHOCK ABSORBER HEAD
64760PANEL ASSY, DECK SIDE TRIM, LH
64770DCOVER ASSY, SPARE WHEEL
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
64981STOPPER, WASHER TANK COVER
9011906003
main90119-06003
9011906099
main90119-06099
9011906100
main90119-06100
9015940122
main90159-40122
9015950105
main90159-50105
9046805014
main90468-05014
9351013010
main93510-13010
9356614512
main93566-14512
34 parts on this diagram · 1 diagram in section
