INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

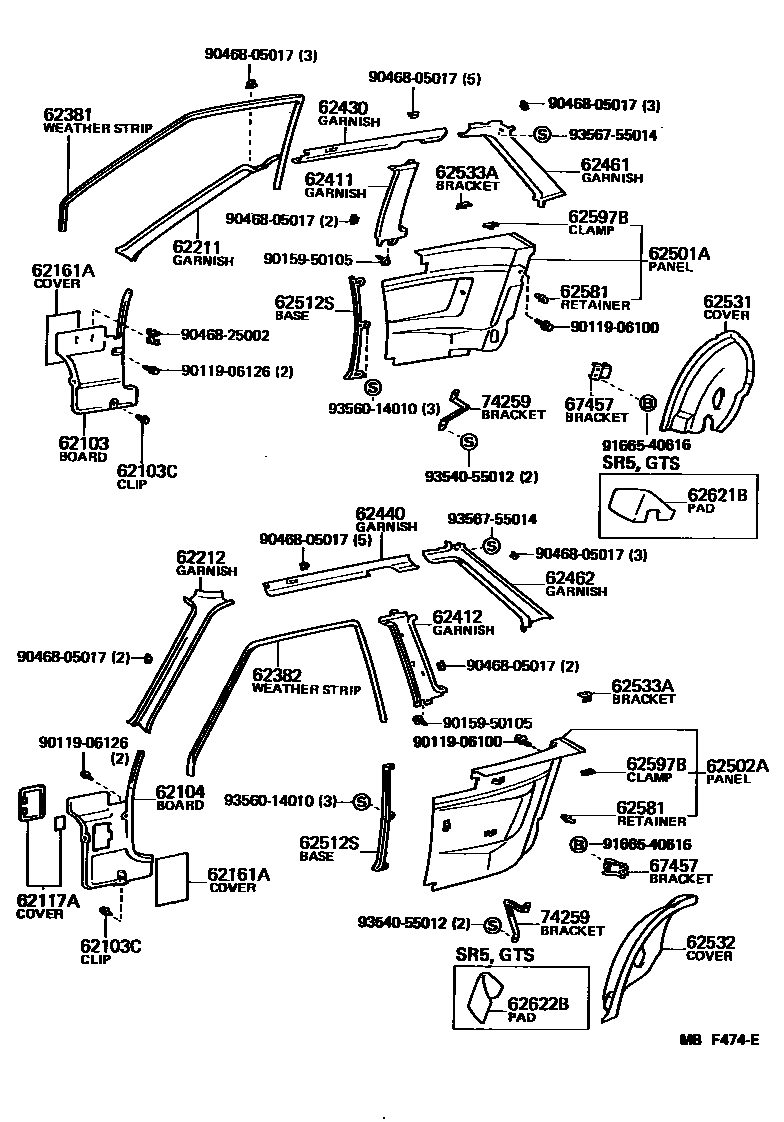

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-12110-01i198508-198707
BLACK,BLACK
sub62101-12110
main62101-12110-02i198308-198508
DEEP MAROON,RED/MAROON
sub62101-12110
main62101-12110-03i198408-198508
GRAY,GRAY
sub62101-12110
main62101-12110-04i198308-198707
BLUE,BLUE
sub62101-12110
main62101-12110-12i198508-198707
MAROON,MAROON
sub62101-12110
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-07041-01i198508-198707
BLACK,BLACK
sub90467-07041
main90467-07041-02i198308-198508
DEEP MAROON,RED/MAROON
sub90467-07041
main90467-07041-03i198408-198508
GRAY,GRAY
sub90467-07041
main90467-07041-04i198308-198707
BLUE,BLUE
sub90467-07041
main90467-07041-12i198508-198707
MAROON,MAROON
sub90467-07041
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-12110-01i198508-198707
BLACK,BLACK
sub62102-12110
main62102-12110-02i198308-198508
DEEP MAROON,RED/MAROON
sub62102-12110
main62102-12110-03i198408-198508
GRAY,GRAY
sub62102-12110
main62102-12110-04i198308-198707
BLUE,BLUE
sub62102-12110
main62102-12110-12i198508-198707
MAROON,MAROON
sub62102-12110
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12050-02i198308-198508
DEEP MAROON,RED/MAROON
sub62117-12050
main62117-12050-03i198408-198508
GRAY,GRAY
sub62117-12050
main62117-12050-04i198308-198508
BLUE,BLUE
sub62117-12050
main62117-12070-01i198508-198707
BLACK,BLACK
sub62117-12070
main62117-12070-02i198508-198707
MAROON,DEEP MAROON
sub62117-12070
main62117-12070-04i198508-198707
BLUE,BLUE
sub62117-12070
62161ACOVER, COWL SIDE TRIM SERVICE HOLE
main62161-12050i198308-198707
62211GARNISH, FRONT PILLAR, RH
main62211-12140-01i198508-198707
BLACK,BLACK
sub62211-12140
main62211-12140-02i198308-198508
DEEP MAROON,RED/MAROON
sub62211-12140
main62211-12140-03i198408-198508
GRAY,GRAY
sub62211-12140
main62211-12140-04i198308-198707
BLUE,BLUE
sub62211-12140
main62211-12140-12i198508-198707
MAROON,MAROON
sub62211-12140
62212GARNISH, FRONT PILLAR, LH
main62212-12150-01i198508-198707
BLACK,BLACK
sub62212-12150
main62212-12150-02i198308-198508
DEEP MAROON,RED/MAROON
sub62212-12150
main62212-12150-03i198408-198508
GRAY,GRAY
sub62212-12150
main62212-12150-04i198308-198707
BLUE,BLUE
sub62212-12150
main62212-12150-12i198508-198707
MAROON,MAROON
sub62212-12150
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-12160i198308-198707
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-12170i198308-198707
62411GARNISH, CENTER PILLAR, RH
main62411-12250-02i198308-198311
DEEP MAROON,RED/MAROON
sub62411-12320
main62411-12250-04i198308-198311
BLUE,BLUE
sub62411-12320
main62411-12270-02i198308-198309
DEEP MAROON,RED/MAROON
sub62411-12330
main62411-12270-04i198308-198309
BLUE,BLUE
sub62411-12330
main62411-12320-01i198508-198707
BLACK,BLACK
sub62411-12320
main62411-12320-02i198311-198508
DEEP MAROON,RED/MAROON
sub62411-12320
main62411-12320-03i198408-198508
GRAY,GRAY
sub62411-12320
main62411-12320-04i198311-198707
BLUE,BLUE
sub62411-12320
main62411-12320-12i198508-198707
MAROON,MAROON
sub62411-12320
main62411-12330-01i198508-198707
BLACK,BLACK
sub62411-12330
main62411-12330-02i198309-198508
DEEP MAROON,RED/MAROON
sub62411-12330
main62411-12330-03i198408-198508
GRAY,GRAY
sub62411-12330
main62411-12330-04i198309-198707
BLUE,BLUE
sub62411-12330
main62411-12330-12i198508-198707
MAROON,MAROON
sub62411-12330
62412GARNISH, CENTER PILLAR, LH
main62412-12250-02i198308-198311
DEEP MAROON,RED/MAROON
sub62412-12320
main62412-12250-04i198308-198311
BLUE,BLUE
sub62412-12320
main62412-12270-02i198308-198309
DEEP MAROON,RED/MAROON
sub62412-12330
main62412-12270-04i198308-198309
BLUE,BLUE
sub62412-12330
main62412-12320-01i198508-198707
BLACK,BLACK
sub62412-12320
main62412-12320-02i198311-198508
DEEP MAROON,RED/MAROON
sub62412-12320
main62412-12320-03i198408-198508
GRAY,GRAY
sub62412-12320
main62412-12320-04i198311-198707
BLUE,BLUE
sub62412-12320
main62412-12320-12i198508-198707
MAROON,MAROON
sub62412-12320
main62412-12330-01i198508-198707
BLACK,BLACK
sub62412-12330
main62412-12330-02i198309-198508
DEEP MAROON,RED/MAROON
sub62412-12330
main62412-12330-03i198408-198508
GRAY,GRAY
sub62412-12330
main62412-12330-04i198309-198707
BLUE,BLUE
sub62412-12330
main62412-12330-12i198508-198707
MAROON,MAROON
sub62412-12330
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-12040-01i198508-198707
BLACK,BLACK
sub62431-12040
main62431-12040-02i198308-198508
DEEP MAROON,RED/MAROON
sub62431-12040
main62431-12040-03i198408-198508
GRAY,GRAY
sub62431-12040
main62431-12040-04i198308-198707
BLUE,BLUE
sub62431-12040
main62431-12040-12i198508-198707
MAROON,MAROON
sub62431-12040
main62431-12060-01i198508-198707
BLACK,BLACK
sub62431-12060
main62431-12060-02i198308-198508
DEEP MAROON,RED/MAROON
sub62431-12060
main62431-12060-03i198408-198508
GRAY,GRAY
sub62431-12060
main62431-12060-04i198308-198707
BLUE,BLUE
sub62431-12060
main62431-12060-12i198508-198707
MAROON,MAROON
sub62431-12060
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-12030-01i198508-198707
BLACK,BLACK
sub62432-12030
main62432-12030-02i198308-198508
DEEP MAROON,RED/MAROON
sub62432-12030
main62432-12030-03i198408-198508
GRAY,GRAY
sub62432-12030
main62432-12030-04i198308-198707
BLUE,BLUE
sub62432-12030
main62432-12030-12i198508-198707
MAROON,MAROON
sub62432-12030
main62432-12050-01i198508-198707
BLACK,BLACK
sub62432-12050
main62432-12050-02i198308-198508
DEEP MAROON,RED/MAROON
sub62432-12050
main62432-12050-03i198408-198508
GRAY,GRAY
sub62432-12050
main62432-12050-04i198308-198707
BLUE,BLUE
sub62432-12050
main62432-12050-12i198508-198707
MAROON,MAROON
sub62432-12050
62461GARNISH, ROOF SIDE TRIM, RH
main62471-12140-01i198508-198707
BLACK,BLACK
sub62471-12140
main62471-12140-02i198308-198508
DEEP MAROON,RED/MAROON
sub62471-12140
main62471-12140-03i198408-198508
GRAY,GRAY
sub62471-12140
main62471-12140-04i198308-198707
BLUE,BLUE
sub62471-12140
main62471-12140-12i198508-198707
MAROON,MAROON
sub62471-12140
main62471-12230-01i198508-198707
W/SUN ROOF,BLACK,BLACK
sub62471-12230
main62471-12230-02i198308-198508
W/SUN ROOF,DEEP MAROON,RED/MAROON
sub62471-12230
main62471-12230-03i198408-198508
W/SUN ROOF,GRAY,GRAY
sub62471-12230
main62471-12230-04i198308-198707
W/SUN ROOF,BLUE,BLUE
sub62471-12230
main62471-12230-12i198508-198707
W/SUN ROOF,MAROON,MAROON
sub62471-12230
main62471-12250-01i198508-198707
BLACK,BLACK
sub62471-12250
main62471-12250-02i198308-198508
DEEP MAROON,RED/MAROON
sub62471-12250
main62471-12250-03i198408-198508
GRAY,GRAY
sub62471-12250
main62471-12250-04i198308-198707
BLUE,BLUE
sub62471-12250
main62471-12250-12i198508-198707
MAROON,MAROON
sub62471-12250
62462GARNISH, ROOF SIDE TRIM, LH
main62472-12140-01i198508-198707
BLACK,BLACK
sub62472-12140
main62472-12140-02i198308-198508
DEEP MAROON,RED/MAROON
sub62472-12140
main62472-12140-03i198408-198508
GRAY,GRAY
sub62472-12140
main62472-12140-04i198308-198707
BLUE,BLUE
sub62472-12140
main62472-12140-12i198508-198707
MAROON,MAROON
sub62472-12140
main62472-12160-01i198508-198707
BLACK,BLACK
sub62472-12160
main62472-12160-02i198308-198508
DEEP MAROON,RED/MAROON
sub62472-12160
main62472-12160-03i198408-198508
GRAY,GRAY
sub62472-12160
main62472-12160-04i198308-198707
BLUE,BLUE
sub62472-12160
main62472-12160-12i198508-198707
MAROON,MAROON
sub62472-12160
main62472-12240-01i198508-198707
W/SUN ROOF,BLACK,BLACK
sub62472-12240
main62472-12240-02i198308-198508
W/SUN ROOF,DEEP MAROON,RED/MAROON
sub62472-12240
main62472-12240-03i198408-198508
W/SUN ROOF,GRAY,GRAY
sub62472-12240
main62472-12240-04i198308-198707
W/SUN ROOF,BLUE,BLUE
sub62472-12240
main62472-12240-12i198508-198707
W/SUN ROOF,MAROON,MAROON
sub62472-12240
62501APANEL ASSY, QUARTER TRIM, RH
main62510-12680-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main62510-12680-12i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main62510-12720-02i198308-198408
DEEP MAROON,RED/MAROON
main62510-12720-04i198308-198508
BLUE,BLUE
main62510-12720-12i198408-198508
DEEP MAROON,DEEP MAROON
main62510-12730-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main62510-12730-12i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main62510-12740-02i198308-198408
DEEP MAROON,RED/MAROON
main62510-12740-04i198308-198408
BLUE,BLUE
main62510-12750-02i198308-198408
W/VL COVER,DEEP MAROON,RED/MAROON
main62510-12750-04i198308-198408
W/VL COVER,BLUE,BLUE
main62510-12770-02i198308-198408
DEEP MAROON,RED/MAROON
main62510-12770-04i198308-198408
BLUE,BLUE
main62510-12870-02i198408-198508
DEEP MAROON,DEEP MAROON
main62510-12870-03i198408-198508
GRAY,GRAY
main62510-12870-04i198408-198508
BLUE,BLUE
main62510-12880-02i198408-198508
DEEP MAROON,DEEP MAROON
main62510-12880-03i198408-198508
GRAY,GRAY
main62510-12880-04i198408-198508
BLUE,BLUE
main62510-12890-02i198408-198508
DEEP MAROON,DEEP MAROON
main62510-12890-03i198408-198508
GRAY,GRAY
main62510-1A010-02i198408-198508
DEEP MAROON,DEEP MAROON
main62510-1A010-03i198408-198508
GRAY,GRAY
main62510-1A030-01i198508-198608
BLACK,BLACK
main62510-1A030-04i198508-198608
BLUE,BLUE
main62510-1A050-01i198508-198707
BLACK,BLACK
main62510-1A050-02i198508-198707
MAROON,MAROON
main62510-1A050-04i198508-198707
BLUE,BLUE
main62510-1A070-02i198608-198707
MAROON,MAROON
main62510-1A070-04i198608-198707
BLUE,BLUE
main62510-1A070-11i198608-198707
BLACK,BLACK
main62510-1A080-01i198508-198608
BLACK,BLACK
main62510-1A080-04i198508-198608
BLUE,BLUE
main62510-1A100-01i198508-198608
BLACK,BLACK
main62510-1A100-02i198508-198608
MAROON,MAROON
main62510-1A100-04i198508-198608
BLUE,BLUE
main62510-1A101-01i198608-198707
BLACK,BLACK
main62510-1A101-02i198608-198707
MAROON,MAROON
main62510-1A101-04i198608-198707
BLUE,BLUE
main62510-1A110-01i198508-198608
BLACK,BLACK
main62510-1A110-02i198508-198608
MAROON,MAROON
main62510-1A110-04i198508-198608
BLUE,BLUE
main62510-1A150-01i198608-198707
BLACK,BLACK
main62510-1A150-04i198608-198707
BLUE,BLUE
main62510-1A160-01i198608-198707
BLACK,BLACK
main62510-1A160-04i198608-198707
BLUE,BLUE
main62510-1A170-01i198608-198707
W/SPORTS SEAT,BLACK,BLACK
main62510-1A170-04i198608-198707
W/SPORTS SEAT,BLUE,BLUE
main62510-1A180-01i198608-198707
W/SPORTS SEAT,BLACK,BLACK
main62510-1A180-04i198608-198707
W/SPORTS SEAT,BLUE,BLUE
62502APANEL ASSY, QUARTER TRIM, LH
main62520-12660-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main62520-12660-12i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main62520-12700-02i198308-198408
DEEP MAROON,RED/MAROON
main62520-12700-04i198308-198508
BLUE,BLUE
main62520-12700-12i198408-198508
DEEP MAROON,DEEP MAROON
main62520-12710-04i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main62520-12710-12i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main62520-12720-02i198308-198408
DEEP MAROON,RED/MAROON
main62520-12720-04i198308-198408
BLUE,BLUE
main62520-12730-02i198308-198408
W/VL COVER,DEEP MAROON,RED/MAROON
main62520-12730-04i198308-198408
W/VL COVER,DEEP MAROON,BLUE
main62520-12750-02i198308-198408
DEEP MAROON,RED/MAROON
main62520-12750-04i198308-198408
BLUE,BLUE
main62520-12850-02i198408-198508
DEEP MAROON,DEEP MAROON
main62520-12850-03i198408-198508
GRAY,GRAY
main62520-12850-04i198408-198508
BLUE,BLUE
main62520-12860-02i198408-198508
DEEP MAROON,DEEP MAROON
main62520-12860-03i198408-198508
GRAY,GRAY
main62520-12860-04i198408-198508
BLUE,BLUE
main62520-12870-02i198408-198508
DEEP MAROON,DEEP MAROON
main62520-12870-03i198408-198508
GRAY,GRAY
main62520-12880-02i198408-198508
DEEP MAROON,DEEP MAROON
main62520-12880-03i198408-198508
GRAY,GRAY
main62520-1A010-01i198508-198608
BLACK,BLACK
main62520-1A010-04i198508-198608
BLUE,BLUE
main62520-1A030-01i198508-198707
BLACK,BLACK
main62520-1A030-02i198508-198707
MAROON,MAROON
main62520-1A030-04i198508-198707
BLUE,BLUE
main62520-1A050-02i198608-198707
MAROON,MAROON
main62520-1A050-04i198608-198707
BLUE,BLUE
main62520-1A050-11i198608-198707
BLACK,BLACK
main62520-1A060-01i198508-198608
BLACK,BLACK
main62520-1A060-04i198508-198608
BLUE,BLUE
main62520-1A080-01i198508-198608
BLACK,BLACK
main62520-1A080-02i198508-198608
MAROON,MAROON
main62520-1A080-04i198508-198608
BLUE,BLUE
main62520-1A081-01i198608-198707
BLACK,BLACK
main62520-1A081-02i198608-198707
MAROON,MAROON
main62520-1A081-04i198608-198707
BLUE,BLUE
main62520-1A090-01i198508-198608
BLACK,BLACK
main62520-1A090-02i198508-198608
MAROON,MAROON
main62520-1A090-04i198508-198608
BLUE,BLUE
main62520-1A130-01i198608-198707
BLACK,BLACK
main62520-1A130-04i198608-198707
BLUE,BLUE
main62520-1A140-01i198608-198707
BLACK,BLACK
main62520-1A140-04i198608-198707
BLUE,BLUE
main62520-1A150-01i198608-198707
W/SPORTS SEAT,,BLACK
main62520-1A150-04i198608-198707
W/SPORTS SEAT,,BLUE
main62520-1A160-01i198608-198707
W/SPORTS SEAT,BLACK,BLACK
main62520-1A160-04i198608-198707
W/SPORTS SEAT,BLUE,BLUE
62512SBASE, QUARTER TRIM, FRONT
main62517-12120-01i198508-198707
RH,BLACK,BLACK
sub62517-12120
main62517-12120-02i198308-198508
RH,DEEP MAROON,RED/MAROON
sub62517-12120
main62517-12120-03i198408-198508
RH,GRAY,GRAY
sub62517-12120
main62517-12120-04i198308-198707
RH,BLUE,BLUE
sub62517-12120
main62517-12120-12i198508-198707
RH,MAROON,MAROON
sub62517-12120
main62518-12060-01i198508-198707
LH,BLACK,BLACK
sub62518-12060
main62518-12060-02i198308-198508
LH,DEEP MAROON,RED/MAROON
sub62518-12060
main62518-12060-03i198408-198508
LH,GRAY,GRAY
sub62518-12060
main62518-12060-04i198308-198707
LH,BLUE,BLUE
sub62518-12060
main62518-12060-12i198508-198707
LH,MAROON,MAROON
sub62518-12060
62531COVER, WHEEL HOUSE TRIM, RH
main62610-12070-01i198508-198707
BLACK,BLACK
sub62610-12070
main62610-12070-02i198308-198508
DEEP MAROON,RED/MAROON
sub62610-12070
main62610-12070-03i198408-198508
GRAY,GRAY
sub62610-12070
main62610-12070-04i198308-198707
BLUE,BLUE
sub62610-12070
main62610-12070-12i198508-198707
MAROON,MAROON
sub62610-12070
main62610-12090-01i198508-198707
BLACK,BLACK
main62610-12090-02i198308-198508
DEEP MAROON,RED/MAROON
main62610-12090-03i198408-198508
GRAY,GRAY
main62610-12090-04i198308-198707
BLUE,BLUE
main62610-12090-12i198508-198707
MAROON,MAROON
62532COVER, WHEEL HOUSE TRIM, LH
main62620-12060-01i198508-198707
BLACK,BLACK
sub62620-12060
main62620-12060-02i198308-198508
DEEP MAROON,RED/MAROON
sub62620-12060
main62620-12060-03i198408-198508
GRAY,GRAY
sub62620-12060
main62620-12060-04i198308-198707
BLUE,BLUE
sub62620-12060
main62620-12060-12i198508-198707
MAROON,MAROON
sub62620-12060
main62620-12070-01i198508-198707
BLACK,BLACK
main62620-12070-02i198308-198508
DEEP MAROON,RED/MAROON
main62620-12070-03i198408-198508
GRAY,GRAY
main62620-12070-04i198308-198707
BLUE,BLUE
main62620-12070-12i198508-198707
MAROON,MAROON
62533ABRACKET, QUARTER TRIM CLAMP
main62533-12100i198308-198707
62581RETAINER, QUARTER TRIM
main67771-12020i198408-198707
main67771-12020i198308-198408
W/SPORTS SEAT
main67771-16020i198308-198707
main67771-22010i198508-198707
62597BCLAMP, QUARTER TRIM
main62597-12030i198308-198707
62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
main62621-12040i198308-198707
62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
main62622-12010i198308-198707
sub62621-12040
67457BRACKET, QUARTER REAR GUIDE, UPPER
main67457-12040i198308-198707
74259BRACKET, REAR SIDE ARMREST SUPPORT
main74259-12010i198308-198707
9011906100
main90119-06100
9011906126
main90119-06126
9015950105
main90159-50105
9046805017
main90468-05017
9046825002
main90468-25002
9166540616
main91665-40616
9354055012
main93540-55012
9356014010
main93560-14010
9356755014
main93567-55014

36 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
