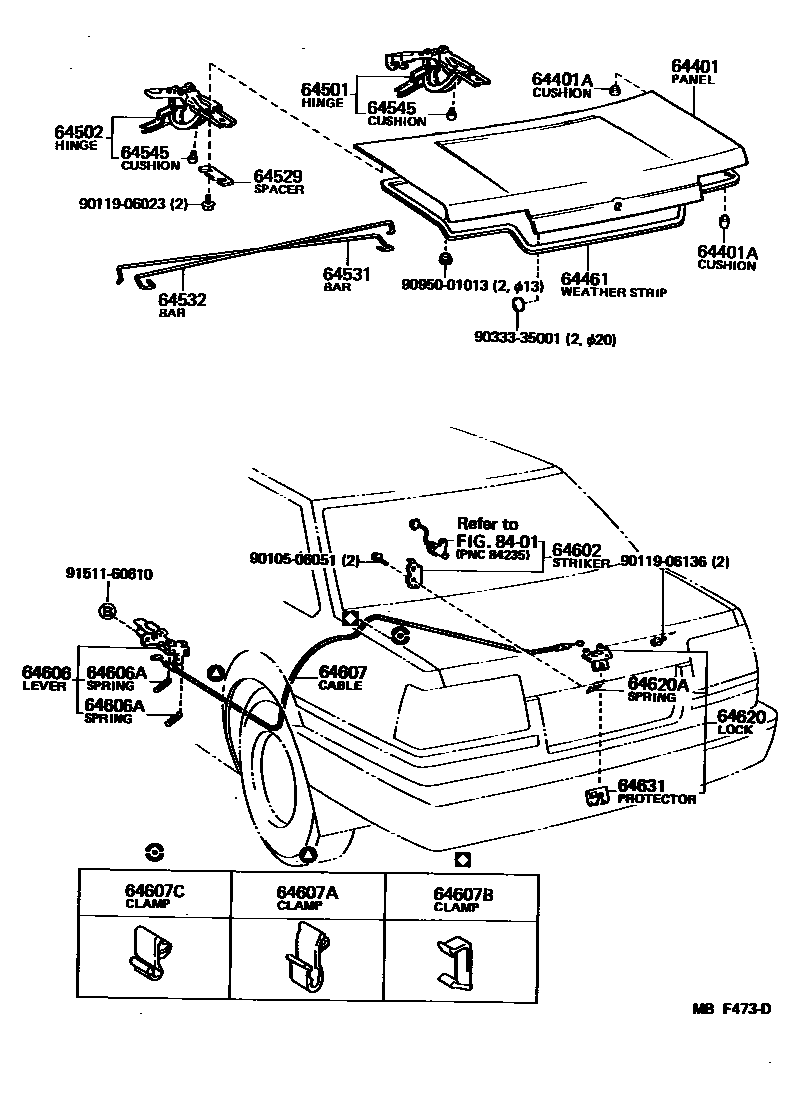

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12570iAE86..2D198308-198608

main64401-1A280iAE86..2D198608-198707

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iAE86..2D198308-198707

FR

sub90541-06056

main90541-09035iAE86..2D198308-198707

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12230iAE86..2D198308-198707

main64461-12340iAE86..2D198506-198508

sub64461-12230

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12190iAE86..2D198308-198707

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12180iAE86..2D198308-198707

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAE86..2D198308-198707

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12150iAE86..2D198308-198707

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12140iAE86..2D198308-198707

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iAE86..2D198308-198707

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAE86..2D..(GTS,SR5)198308-198707

sub64621-12060

sub84231-12030

main64621-12060iAE86..DX198308-198707

W/O LAMP

sub64621-12070

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12070iAE86..2D..(GTS,SR5)198308-198707

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iAE86..2D..(GTS,SR5)198308-198707

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12270iAE86..2D198308-198707

sub64607-22080

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-12009iAE86..2D..(GTS,SR5)198308-198707

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main82711-16180iAE86..2D..(GTS,SR5)198308-198707

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAE86..2D198308-198707

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12090iAE86..DX198308-198408

sub64610-20080

main64610-20070iAE86..2D198408-198707

main64610-20080iAE86..DX198408-198508

main64610-30060iAE86..2D..SR5198308-198408

sub64610-20070

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAE86..2D198308-198707

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAE86..DX198308-198707

8401

9010506051

main90105-06051

9011906023

main90119-06023

9011906136

main90119-06136

9033335001

main90333-35001

9095001013

main90950-01013

9151160610

main91511-60610

26 parts on this diagram · 1 diagram in section
