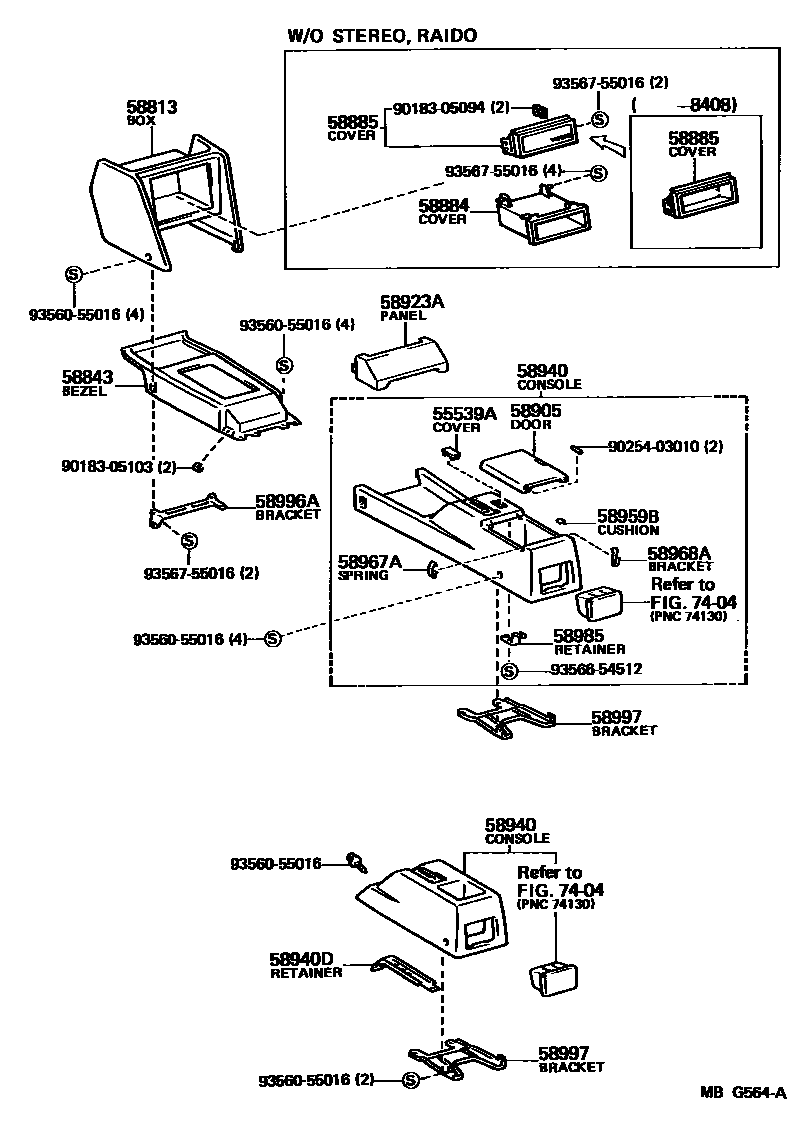

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58813BOX, CONSOLE, UPPER
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
58843BEZEL, SHIFTING HOLE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
58884COVER, STEREO OPENING
sub55521-16030
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58923APANEL, CONSOLE REAR END
58940CONSOLE ASSY, REAR
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
58940DRETAINER, PARKING BRAKE HOLE COVER
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58967ASPRING, CONSOLE DOOR STOPPER
58968ABRACKET, CONSOLE DOOR STOPPER
58985RETAINER, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404
9018305094
main90183-05094
9018305103
main90183-05103
9025403010
main90254-03010
9356055016
main93560-55016
9356654512
main93566-54512
9356755016
main93567-55016
22 parts on this diagram · 1 diagram in section
