COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iAE86198308-198707

5501

55076COVER, HEATER AIR DUCT HOLE

main55077-12050iAE86..USA198308-198707

55701PANEL SUB-ASSY, COWL

main55700-12240iAE86..5F198308-198506

sub55700-12420

main55700-12250iAE86..4FC198308-198506

sub55700-12240

main55700-12420iAE86198506-198707

55713APANEL, COWL TOP SIDE, RH

main55713-12050iAE86198308-198707

55714APANEL, COWL TOP SIDE, LH

main55714-12050iAE86198308-198707

55734APLATE, WATER GUARD, RH

main55734-12060iAE86198308-198707

55735APLATE, WATER GUARD, LH

main55735-12060iAE86198308-198707

55781DLOUVER, COWL TOP VENTILATOR, RH

main55783-12150iAE86198308-198610

sub55783-12180

main55783-12180iAE86..CND198604-198610

COLD SPEC

main55783-12180iAE86198610-198707

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-12010iAE86198308-198610

sub55782-12040

main55782-12040iAE86..CND198604-198610

COLD SPEC

main55782-12040iAE86198610-198707

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55784-12020iAE86198308-198707

sub55784-12050

main55784-12050iAE86..CND198604-198707

COLD SPEC

55799COVER, WIPER MOTOR

main55793-24010iAE86198308-198707

55799BCLIP, WIPER MOTOR COVER, OUTER

main90467-08023iAE86198308-198707

55950NOZZLE ASSY, DEFROSTER

main55950-12090iAE86198308-198707

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12060iAE86198308-198707

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12050iAE86198308-198707

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iAE86..USA198308-198707

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55959-14010iAE86..USA198308-198707

56111GLASS, WINDSHIELD

main56111-12490iAE86..DX198308-198707

*TL,T=5.3

sub56111-12500

main56111-12500iAE86..GTS,SR5198308-198707

*TL,T=5.3,W/SUN SHADE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12020iAE86198308-198707

9011906120

main90119-06120

9015960025

main90159-60025

9095001356

main90950-01356

9356755016

main93567-55016

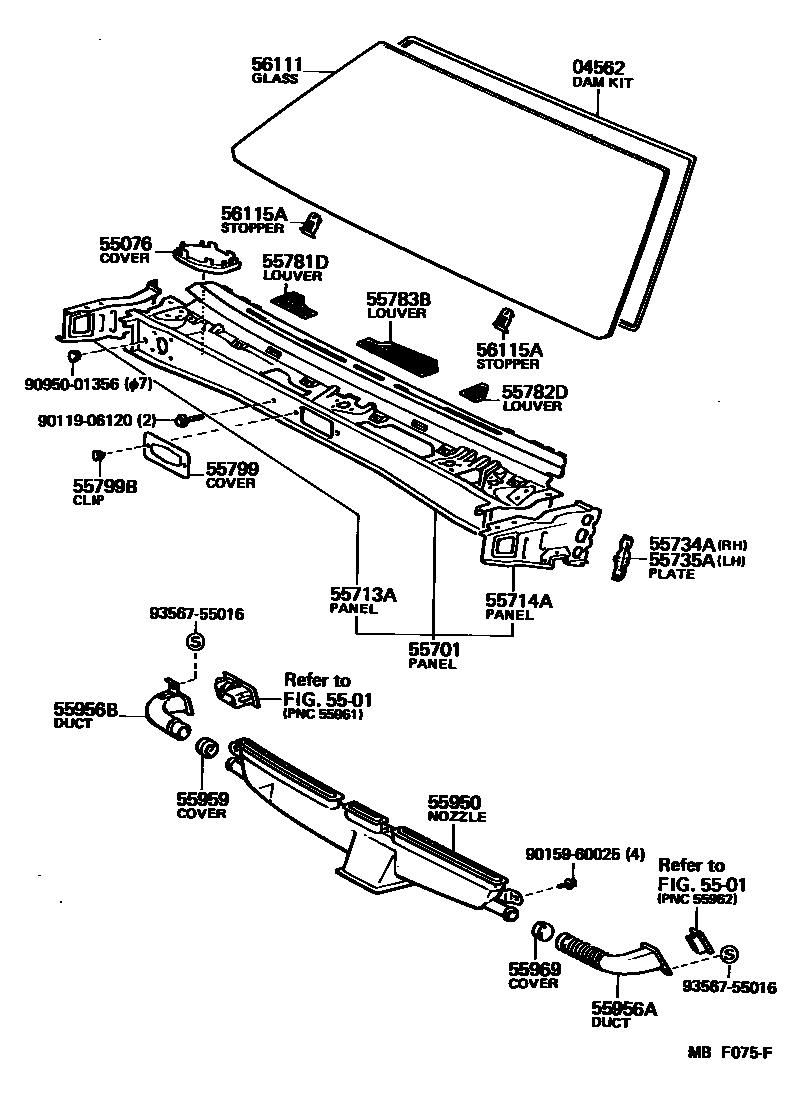

24 parts on this diagram · 1 diagram in section
