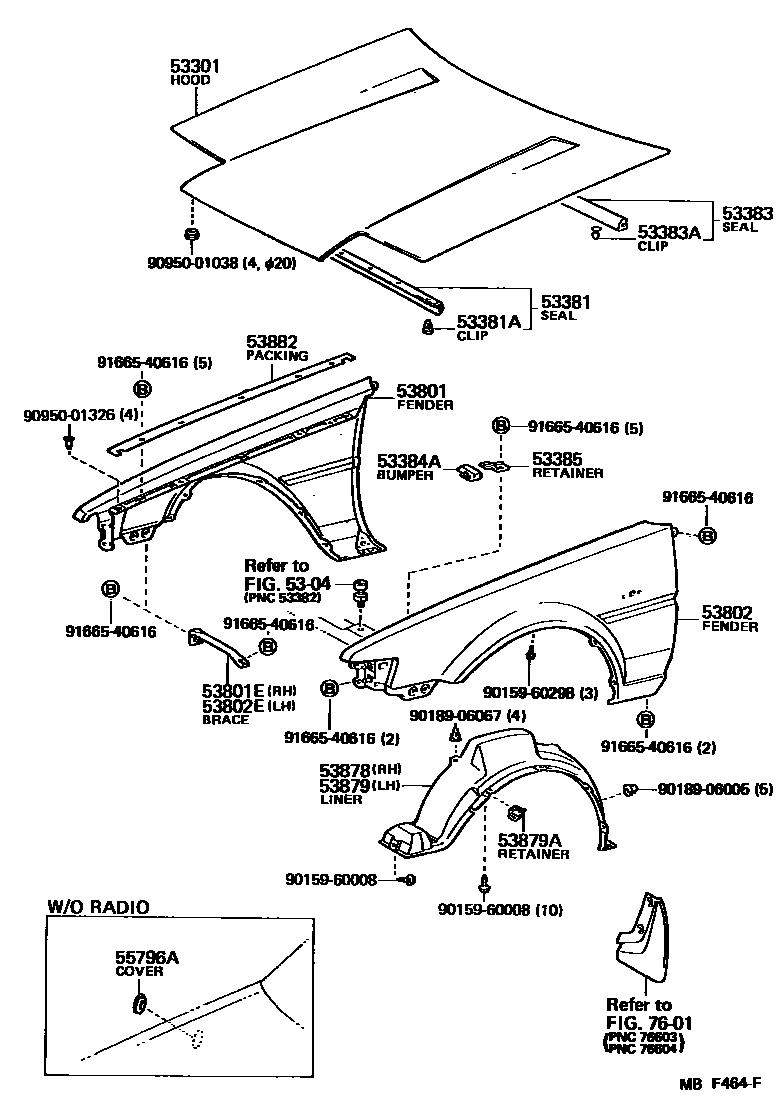

HOOD & FRONT FENDER

5304

53301HOOD SUB-ASSY

main53301-12390iAE86198308-198605

sub53301-12392

sub90950-01038

main53301-12392iAE86198605-198707

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12120iAE86198308-198707

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAE86198308-198707

53383SEAL, HOOD TO COWL TOP

main53383-12050iAE86198308-198707

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iAE86198308-198707

53384ABUMPER, FENDER TO HOOD

main53384-14010iAE86198308-198707

53385RETAINER, HOOD, BUMPER

main53385-14010iAE86198308-198707

RH

main53386-14010iAE86198308-198707

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-1A670iAE86198308-198506

sub53801-1A770

main53801-1A770iAE86198506-198707

main53801-1E370iAE86..GTS198508-198603

sub53801-1A770

53801EBRACE, FRONT FENDER TO APRON, RH

main53835-12030iAE86198308-198707

53802FENDER SUB-ASSY, FRONT LH

main53802-1A630iAE86198308-198506

sub53802-1A860

main53802-1A750iAE86..GTS198508-198603

sub53802-1A760

main53802-1A760iAE86198506-198707

53802EBRACE, FRONT FENDER TO APRON, LH

main53835-12030iAE86198308-198707

53878LINER, FRONT FENDER, RH

main53875-12060iAE86198308-198508

sub53875-12140

main53875-12061iAE86198508-198707

53879LINER, FRONT FENDER, LH

main53876-12060iAE86198308-198508

sub53876-12130

main53876-12061iAE86198508-198707

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE86198308-198707

53882PACKING, FRONT FENDER MAIN

main53882-12060iAE86198308-198707

55796ACOVER, RADIO ANTENNA HOLE

main55796-12060iAE86..DX,SR5198308-198707

7601

9015960008

main90159-60008

9015960298

main90159-60298

9018906005

main90189-06005

9018906067

main90189-06067

9095001038

main90950-01038

9095001326

main90950-01326

9166540616

main91665-40616

25 parts on this diagram · 1 diagram in section
