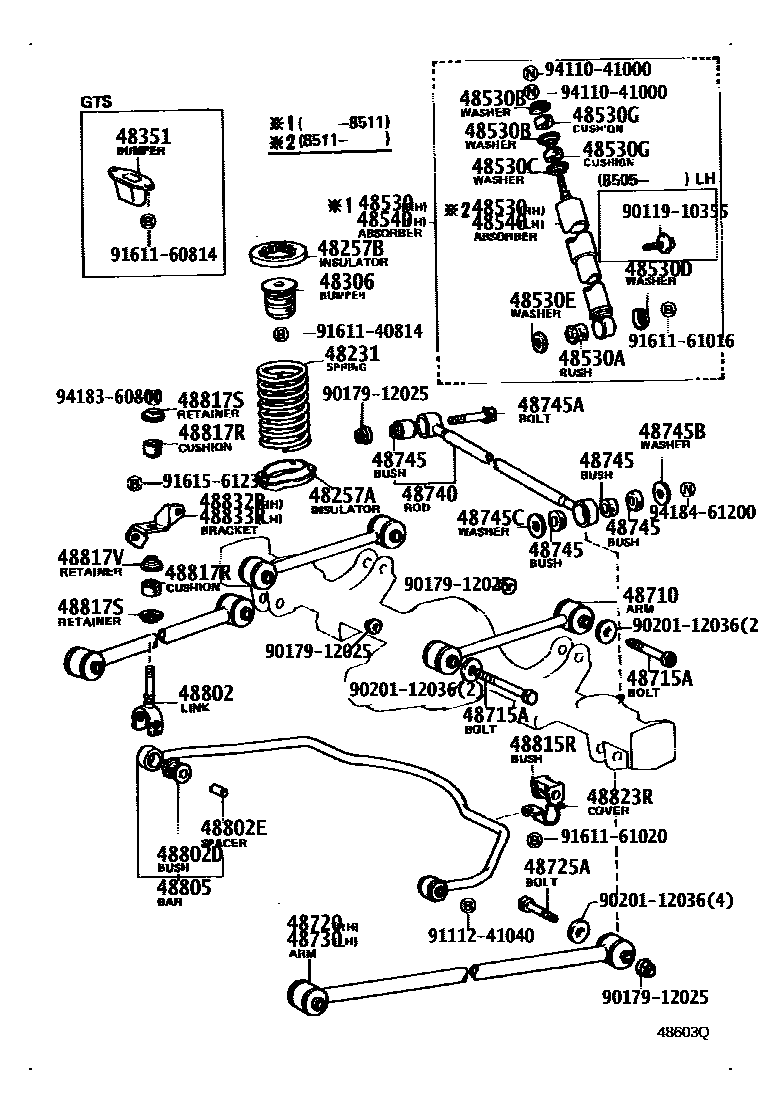

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257AINSULATOR, REAR COIL SPRING, LOWER
48257BINSULATOR, REAR COIL SPRING, UPPER
48306BUMPER SUB-ASSY, REAR SPRING
sub48306-12070
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
RH
RH
LH
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
UPR
LWR
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
*12-1.25PX77-22
*12-1.25PX149-23
48720ARM ASSY, LOWER CONTROL, RH
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
ROD X BODY
L=15,ROD X HOUSING
L=12,ROD X HOUSING
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823RCOVER, STABILIZER LINK(FOR REAR)
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9011910355
main90119-10355
9017912025
main90179-12025
9020112036
main90201-12036
9111241040
main91112-41040
9161140814
main91611-40814
9161160814
main91611-60814
9161161016
main91611-61016
9161161020
main91611-61020
9161561230
main91615-61230
9411041000
main94110-41000
9418360800
main94183-60800
9418461200
main94184-61200
46 parts on this diagram · 1 diagram in section
