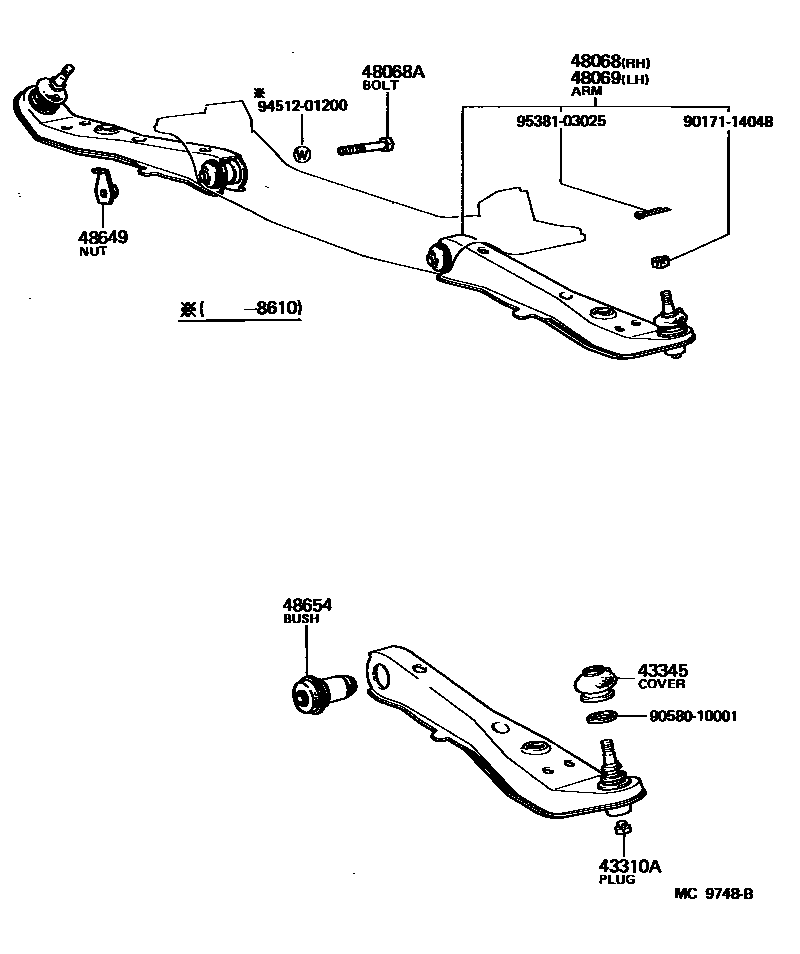

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iAE86198308-198707

43345COVER, LOWER BALL JOINT DUST

main43345-14020iAE86198308-198707

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19125iAE86198308-198707

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iAE86198308-198610

main90119-12083iAE86198610-198707

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19105iAE86198308-198707

48649NUT, LOWER ARM SHAFT

main48649-12040iAE86198308-198707

48654BUSH, LOWER ARM

main48654-12010iAE86198308-198707

9017114048

main90171-14048

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

11 parts on this diagram · 1 diagram in section
