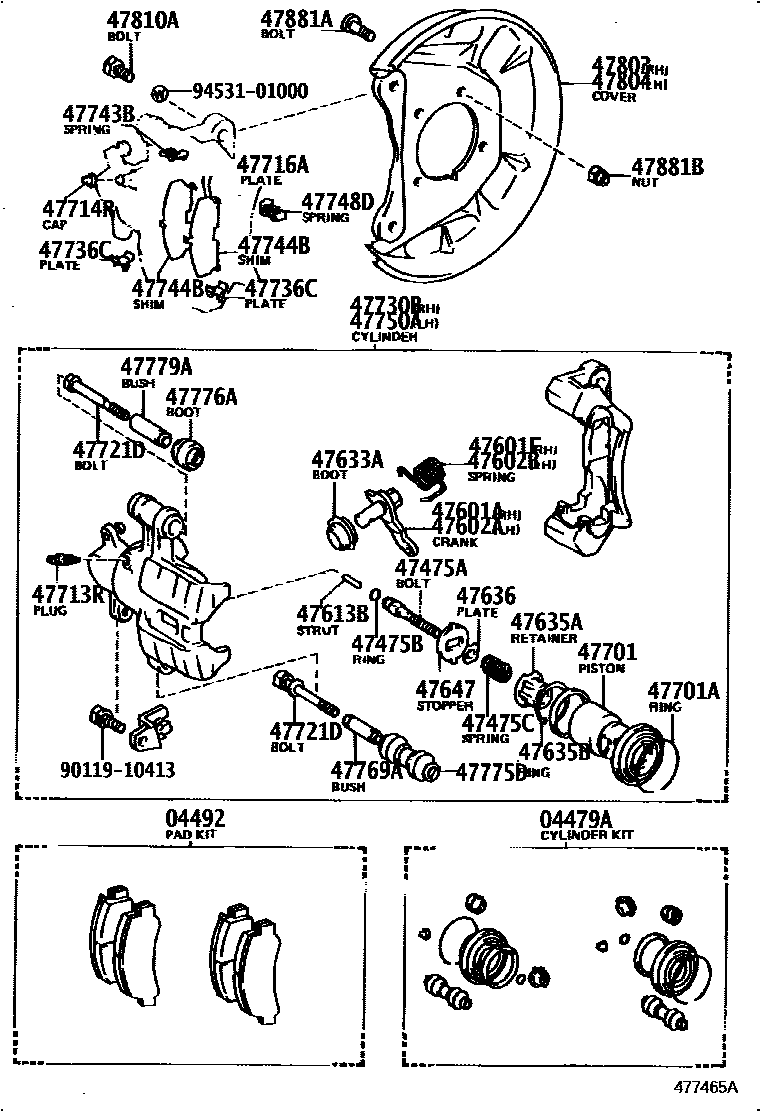

REAR DISC BRAKE CALIPER & DUST COVER
04479ACYLINDER KIT, DISC BRAKE, REAR
04492PAD KIT, DISC BRAKE, REAR
sub04492-12031
47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)
47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)
47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)
47601ACRANK SUB-ASSY, PARKING BRAKE, RH
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
47602ACRANK SUB-ASSY, PARKING BRAKE, LH
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)
47633ABOOT, PARKING BRAKE CRANK
47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)
47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)
47701PISTON SUB-ASSY, REAR DISC BRAKE
47701ARING, SET(FOR DISC BRAKE PISTON, REAR)
47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)
47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.25PX56-15,*8-1.25PX56-15
*8-1.25PX62-20,*8-1.25PX62-20
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47736CPLATE, REAR DISC BRAKE PAD GUIDE
47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
sub47743-12060
47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
sub47748-12110
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)
sub47776-12020
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47881ABOLT(FOR DUST COVER)
47881BNUT(FOR DUST COVER)
9011910413
main90119-10413
9453101000
main94531-01000
38 parts on this diagram · 2 diagrams in section
