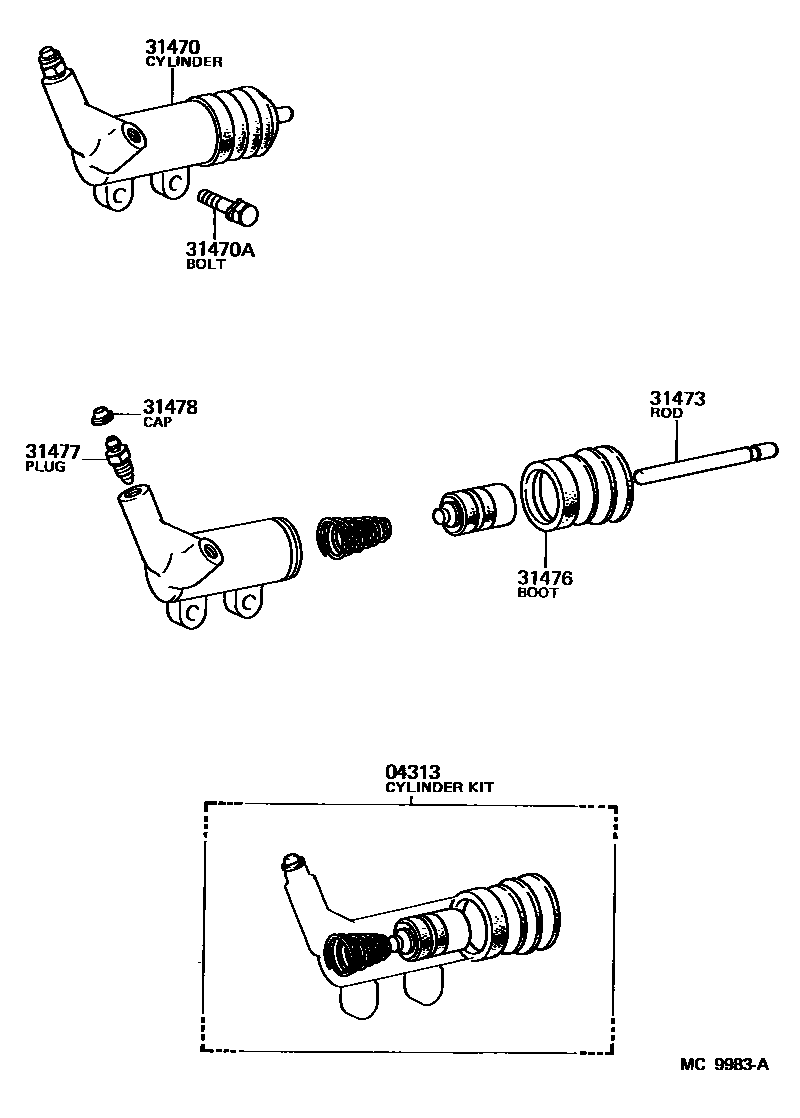

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iAE86..5F198308-198707

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12030iAE86..5F..(DX,SR5)198308-198707

main31470-12050iAE86..GTS198408-198707

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iAE86..5F198308-198707

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAE86..5F198308-198707

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE86..5F198308-198707

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAE86..5F198308-198707

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE86..5F198308-198707

7 parts on this diagram · 1 diagram in section
