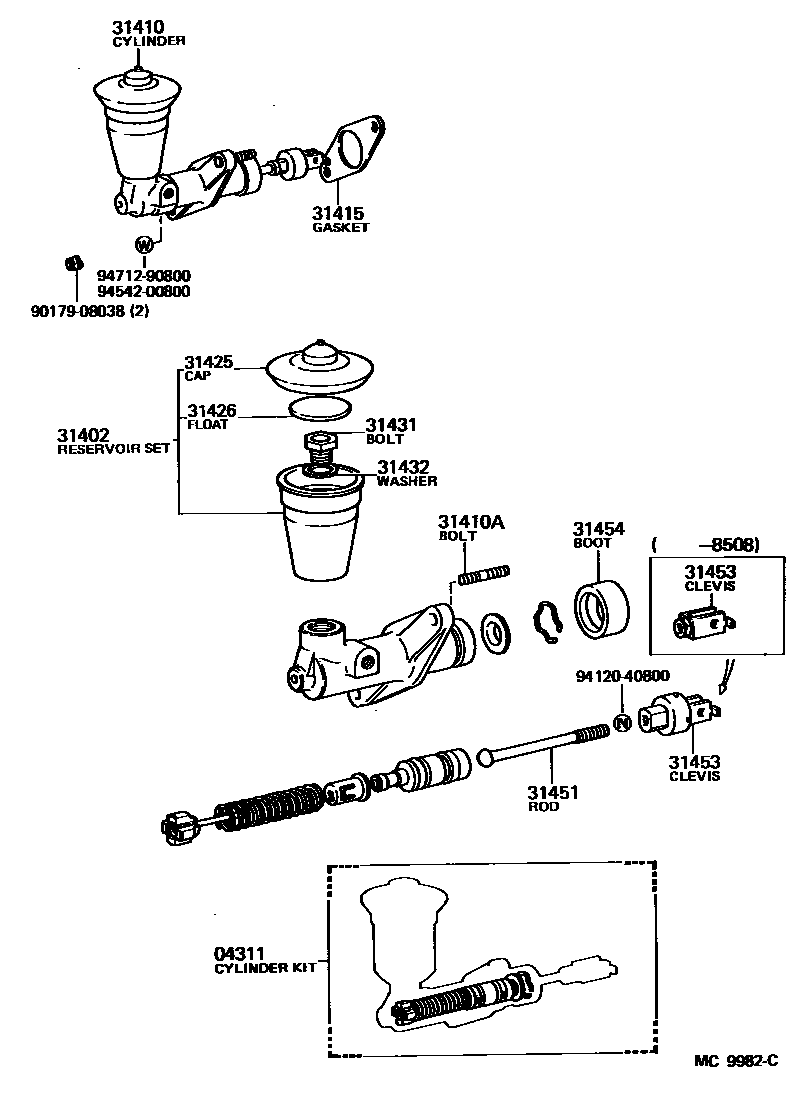

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12020iAE86..5F198308-198508

sub04311-12021

main04311-14030iAE86..5F198611-198704

sub04311-14031

main04311-26040iAE86..5F198508-198611

sub04311-26041

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iAE86..5F198308-198707

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12090iAE86..5F198308-198508

sub31410-12091

main31410-12180iAE86..5F198508-198704

sub31410-12181

main31410-12181iAE86..5F198704-198707

sub31410-12182

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE86..5F198308-198707

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iAE86..5F198308-198707

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE86..5F198308-198707

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE86..5F198308-198707

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAE86..5F198308-198707

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAE86..5F198308-198707

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iAE86..5F198308-198508

main31451-22070iAE86..5F198611-198707

main31451-30060iAE86..5F198508-198611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iAE86..GTS198508-198707

sub31404-28012

main31453-22010iAE86..5F..(DX,SR5)198308-198610

sub31453-35010

main31453-35010iAE86..5F..(DX,SR5)198610-198707

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE86..5F198308-198508

main31454-24010iAE86..5F198508-198707

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

16 parts on this diagram · 1 diagram in section
