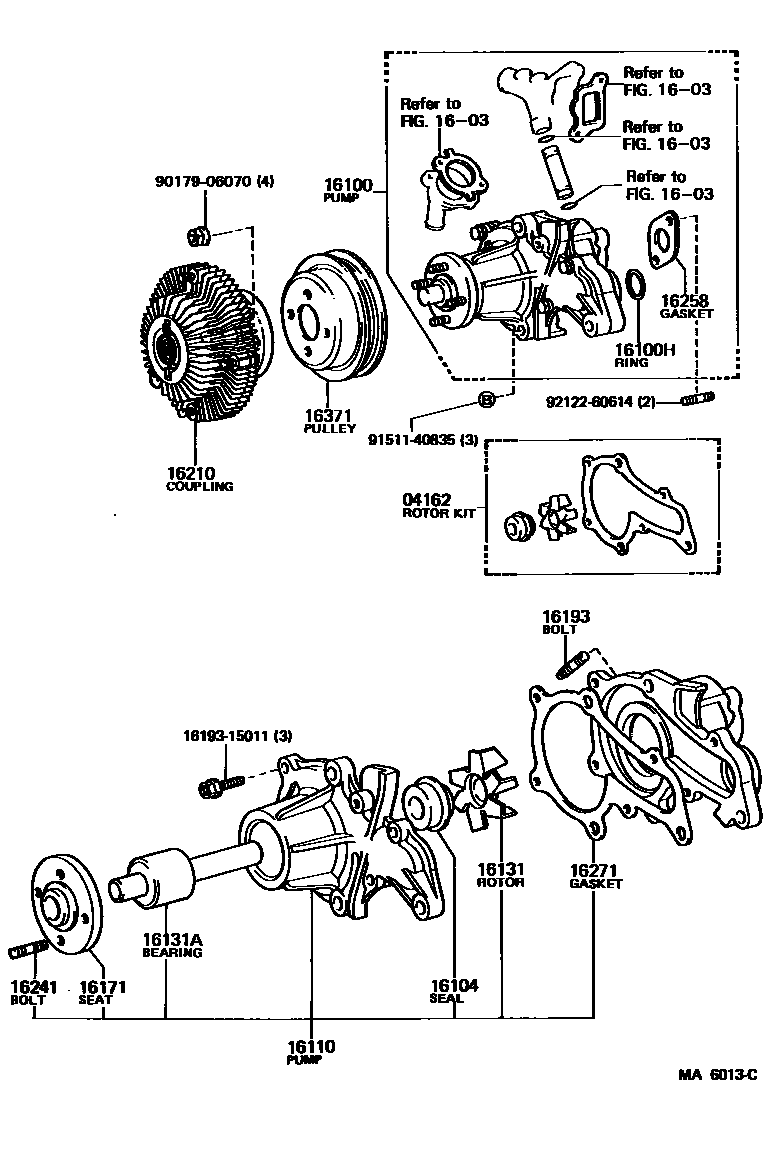

WATER PUMP

0001 1 0002 1

04162ROTOR KIT, WATER PUMP

main04162-15010i4AC..AE86198308-198707

sub04162-15011

1603

16100PUMP ASSY, ENGINE WATER

main16100-19036i4AC..AE86198308-198707

sub16100-19037

main16100-19095i4AGEC..AE86198408-198707

16100HRING, O(FOR WATER PUMP)

main96711-24035i4A#..AE86198308-198707

sub96761-24035

16104SEAL SET, WATER PUMP

main16104-15020i4AC..AE86198405-198707

main16104-41111i4AC..AE86198308-198405

sub16104-15020

16110PUMP ASSY, WATER, W/O COUPLING

main16110-15020i4AC..AE86198401-198707

sub16110-19115

main16110-16010i4AGEC..AE86198408-198707

sub16110-19155

16131ROTOR, WATER PUMP

main16131-15010i4AC..AE86198308-198707

16131ABEARING, WATER PUMP

main90369-30014i4AC..AE86198308-198707

sub90029-36835

16171SEAT, WATER PUMP PULLEY

main16171-15020i4AC..AE86198308-198707

main16171-88280i4AGEC..AE86198408-198707

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010i4A#..AE86198308-198707

16210COUPLING ASSY, FLUID

main16210-16010i4AGEC..AE86198408-198707

main16210-18010i4AC..AE86198308-198707

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16241-15020i4A#..AE86198308-198707

16258GASKET(FOR HEATER RETURN)

main16258-15011i4A#..AE86198308-198707

16271GASKET, WATER PUMP

main16124-15010i4A#..AE86198308-198707

sub16124-16020

16371PULLEY, FAN

main16371-16010i4AC..AE86198308-198707

main16371-16020i4AGEC..AE86198408-198501

sub16371-16021

main16371-16021i4AGEC..AE86198501-198707

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9017906070

main90179-06070

9151140835

main91511-40835

9212260614

main92122-60614

19 parts on this diagram · 2 diagrams in section
