ENGINE OVERHAUL GASKET KIT

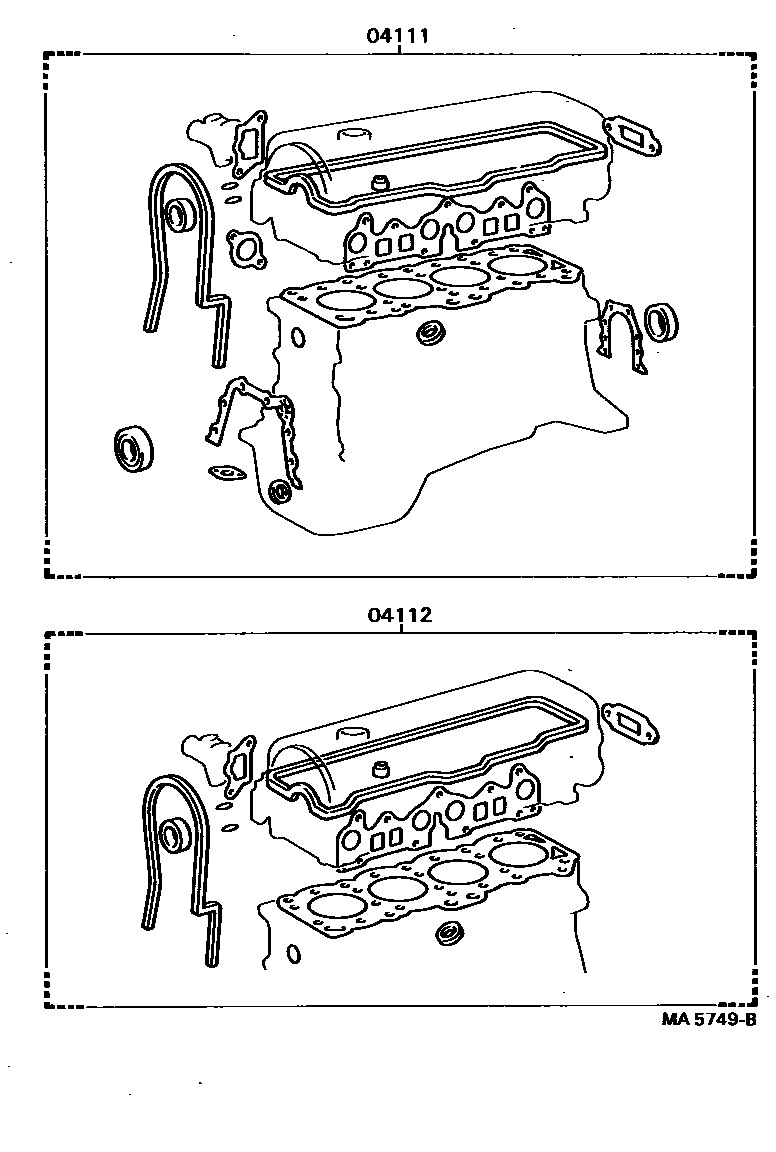

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16022i198408-198506
main04111-16023i198506-198707
sub04111-16024
main04111-16031i198308-198505
main04111-16032i198505-198508
sub04111-16033
main04111-16080i198508-198707
sub04111-16081
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16022i198408-198506
main04112-16023i198506-198707
sub04112-16024
main04112-16030i198308-198505
main04112-16031i198505-198508
sub04112-16032
main04112-16080i198508-198707
sub04112-16081

2 parts on this diagram · 2 diagrams in section
