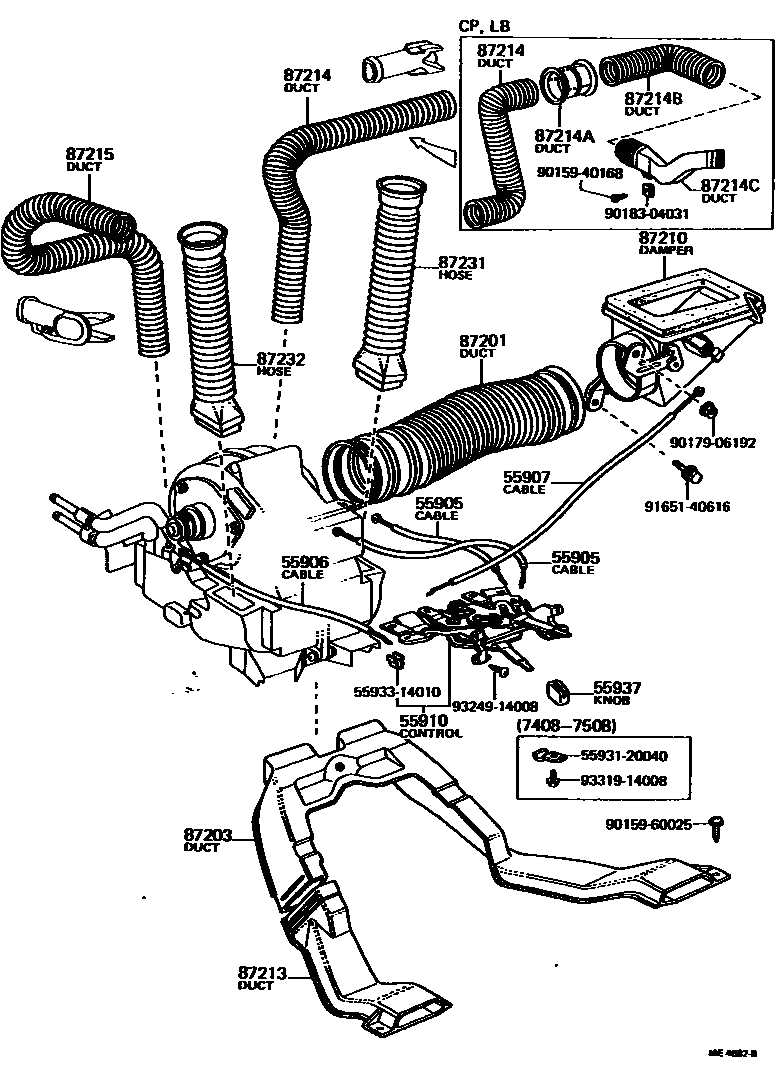

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-12040iKE3#,TE3#197408-197701

FOR DEFROSTER DUMPER

main55906-12080iTE51197603-197701

FOR DEFROSTER DUMPER

main55906-12100iKE50,TE51197701-197908

FOR DEFROSTER DUMPER

main55906-12110iKE3#,TE3#197701-197908

FOR DEFROSTER DUMPER

main55909-12040iKE3#,TE3#197408-197603

FOR BOOST VENTILATOR DUMPER

main55909-12070iKE3#,TE3#197603-197701

FOR BOOST VENTILATOR DUMPER

main55909-12071iKE3#,TE3#197701-197908

FOR BOOST VENTILATOR DUMPER

main55909-12080iTE51197603-197701

FOR BOOST VENTILATOR DUMPER

main55909-12100iKE50,TE51197701-197908

FOR BOOST VENTILATOR DUMPER

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-12040iKE3#,TE3#197408-197701

main55907-12041iKE3#,TE3#197701-197908

main55907-12050iTE51197603-197701

main55907-12070iKE50,TE51197701-197908

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-12070iKE3#,TE3#197408-197701

main55908-12071iKE3#,TE3#197701-197908

main55908-12080iTE51197603-197701

main55908-12100iKE50,TE51197701-197908

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12912iKE3#,TE3#197408-197412

sub55910-12915

main55910-12915iKE3#,TE3#197412-197608

main55910-12917iTE51197603-197608

main55910-12919iKE3#,TE3#197701-197908

main55910-12921iKE50,TE51197701-197908

main55910-12924iKE3#,TE3#197608-197701

main55910-12925iTE51197608-197701

55937KNOB, HEATER CONTROL LEVER

main55905-12040iKE3#,50,TE3#,51197408-197908

87201DUCT SUB-ASSY, AIR, NO.1

main87211-12020iKE3#,50,TE3#,51197408-197908

87203DUCT, HEATER AIR, REAR NO.1

main87212-12020iKE3#,TE3#197408-197508

main87212-12020-01iKE3#,TE3#,51197508-197701

BLACK,BLACK

sub87212-12020

main87212-12020-06iKE3#,TE3#,51197508-197701

BROWN,BROWN

sub87212-12020

main87212-12020-11iKE3#,50,TE3#,51197701-197908

BLACK,BLACK

sub87212-12020

main87212-12020-16iKE3#,50,TE3#,51197701-197908

BROWN,BROWN

sub87212-12020

87210DAMPER ASSY, AIR

main87210-12020iKE3#,50,TE3#,51197408-197908

87213DUCT, AIR, REAR NO.2

main87212-12030iKE3#,TE3#197408-197508

main87212-12030-01iKE3#,TE3#,51197508-197701

BLACK,BLACK

sub87212-12030

main87212-12030-06iKE3#,TE3#,51197508-197701

BROWN,BROWN

sub87212-12030

main87212-12030-11iKE3#,50,TE3#,51197701-197908

BLACK,BLACK

sub87212-12030

main87212-12030-16iKE3#,50,TE3#,51197701-197908

BROWN,BROWN

sub87212-12030

87214DUCT, AIR, SIDE NO.1 RH

main55845-12020iKE30,TE3#..USA197701-197908

FOR COOLER

main55845-12040iTE51..USA197701-197908

FOR COOLER

main55971-12030iKE50,TE51197701-197706

FOR SIDE DEFROSTER,W/COOLER

main55971-12030iKE50,TE51197706-197908

FOR SIDE DEFROSTER

main55972-12020iKE3#,TE3#197508-197701

FOR RH.

main55972-12050iKE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD197701-197908

FOR SIDE DEFROSTER

sub55971-12030

main55972-12050iKE50,TE51197703-197706

FOR SIDE DEFROSTER,L/COOLER

sub55971-12030

main55975-12020iTE51197603-197701

FOR RH.L=600

main55975-12040iKE50,TE51197701-197703

FOR SIDE DEFROSTER,L/COOLER

sub55972-12050

87214ADUCT, AIR, SIDE NO.2 RH

main55973-12020iKE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD197701-197908

FOR SIDE DEFROSTER

87214BDUCT, AIR, SIDE NO.3 RH

main55971-12040iKE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD197701-197908

FOR SIDE DEFROSTER

sub55971-30040

main55972-12010iTE51197603-197701

FOR RH.

main55972-12060iKE50,TE51197701-197908

FOR SIDE DEFROSTER

sub55971-30040

87214CDUCT, AIR, SIDE NO.4 RH

main55971-12020iTE51197603-197701

FOR RH.

87215DUCT, AIR, SIDE NO.1 LH

main55084-12020iTE3#197701-197908

FOR COOLER

main55085-12020iTE51197701-197908

FOR COOLER

main55971-12010iKE3#,TE3#197508-197701

FOR LH.

main55972-12050iKE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD197701-197706

FOR SIDE DEFROSTER

sub55971-12030

main55974-12020iTE51197603-197701

FOR LH.L=1000

main55975-12040iKE50,TE51197701-197703

FOR SIDE DEFROSTER

sub55972-12050

87231HOSE, HEATER DEFROSTER, RH

main87231-12050iKE3#,TE3#,51197408-197701

sub87231-12051

main87231-12051iKE3#,50,TE3#,51197701-197908

87232HOSE, HEATER DEFROSTER, LH

main87231-12050iKE3#,TE3#,51197408-197701

sub87231-12051

main87231-12051iKE3#,50,TE3#,51197701-197908

5593120040CLAMP, HEATER CONTROL WIRE

main55931-20040

5593314010GUIDE, LEVER, NO.2

main55933-14010

9015940168

main90159-40168

9015960025

main90159-60025

9017906192

main90179-06192

9018304031

main90183-04031

9165140616

main91651-40616

9324914008

main93249-14008

9331914008

main93319-14008

25 parts on this diagram · 2 diagrams in section
