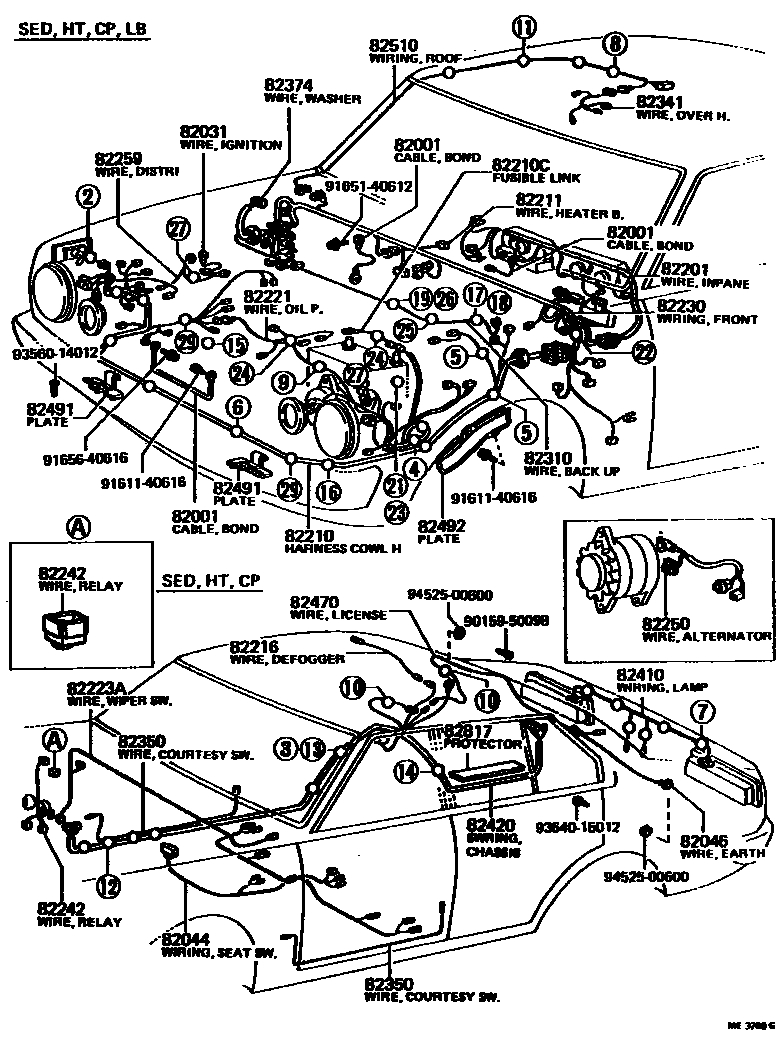

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

82001CABLE, BOND, NO.1

main82046-12090iTE51..CP197708-197908

REAR COMBI. EARTH

main82046-12100iKE30,TE31,37197708-197806

REAR COMBI. EARTH

main82411-12010iKE50,TE51..LB197603-197908

FUEL SENDER GAGE EARTH

main90980-07031iTE3#197408-197503

ENGINE-DASH PANEL,L=210

main90980-07055iTE3#,51197701-197803

main90980-07058iKE3#,50197408-197908

L=350

main90980-07062iTE3#,51197503-197908

L=210

main90980-07090iKE3#,TE3#..DLX,SPL,STD197408-197908

RADIO TUNER-BODY

main90980-07093iKE3#197408-197908

ENGINE-APRON,L=340

main90980-07107iKE50,TE51197701-197908

FOR RADIO TUNER

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12060iTE3#,51197508-197608

sub82031-30160

main82031-12270iTE31..A40..SPL;TE3#,51..DLX,SR5197608-197708

sub82031-12060

main82031-12280iKE30..USA197608-197708

USA SPEC.

sub82031-20080

main82031-12280iTE31..MTM;TE37,38,51;TE31..A40..(DLX,STD)197608-197701

ARCTIC,CAL.& H.A.

sub82031-20080

main82031-12280iTE31..MTM;TE37,38,51;TE31..A40..(DLX,STD)197701-197708

ARCTIC,CAL.& H.A.,CANADA

sub82031-20080

main82031-20080iTE3#,51197605-197608

ARCTIC & CALIFORNIA SPEC.

82044WIRING SUB-ASSY, SEAT SWITCH

main82541-12010iTE3#197408-197502

main82541-12011iTE3#197502-197505

main82541-12013iKE3#,TE3#197505-197508

main82541-12014iKE3#,TE3#197508-197608

main82541-12015iTE3#,51197601-197608

main82541-12020iKE3#,TE3#197408-197505

CANADA SPEC.

main82541-12050iKE3#197608-197701

CANADA SPEC.

main82541-12060iTE31;KE30,TE37,38,51..DLX,SPL,SR5197608-197701

82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH

main82046-12010iTE38197408-197611

main82046-12011iTE38197611-197908

main82046-12030iKE3#,TE31,37,51..CP,HT,SED197408-197708

main82046-12031iKE30,TE31,37,51..CP,HT,SED197708-197908

main82046-12040iKE50,TE51..LB197603-197908

main82046-12060iKE50,TE51..LB197701-197708

W/REAR WIPER

main82046-12060iTE51..LB197708-197908

W/REAR WIPER,L/DEFOGGER

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82201-12140iTE37..USA197408-197508

main82201-12141iTE37..USA197508-197701

main82201-12150iKE30,TE31..STD197408-197506

sub82201-12160

main82201-12160iKE3#,TE3#..DLX,STD197408-197508

main82201-12161iKE3#,TE3#..DLX,SPL,STD197508-197701

main82201-12250iTE51..DLX197603-197701

main82201-12260iTE51..SR5197603-197701

main82201-12360iKE3#,TE3#..DLX,SPL,STD197701-197808

main82201-12361iKE30,TE31,38197808-197908

main82201-12370iTE37..SR5197701-197808

main82201-12371iTE37197808-197908

main82201-12400iKE50,TE51..DLX197701-197808

main82201-12401iKE50,TE51..DLX197808-197908

main82201-12410iTE51..SR5197701-197808

main82201-12411iTE51..SR5197808-197908

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-12650iKE3#197408-197505

main82210-12652iKE3#197505-197508

main82210-12653iKE3#197508-197603

main82210-12654iKE3#197603-197608

main82210-12660iTE3#..DLX,STD197408-197504

main82210-12661iTE3#..DLX,STD197504-197508

main82210-12662iTE3#,51..DLX,STD197508-197608

main82210-12670iTE37..USA197408-197504

main82210-12671iTE37..USA197504-197508

main82210-12672iTE37,51..SR5197508-197608

main82210-12680iTE3#..DLX,STD197408-197501

CALIFORNIA SPEC.

main82210-12681iTE3#..DLX,STD197501-197504

CALIFORNIA SPEC.

main82210-12682iTE3#..DLX,STD197504-197508

CALIFORNIA SPEC.

main82210-12683iTE3#,51..DLX,STD197508-197608

CALIFORNIA SPEC.

main82210-12690iTE37..USA197408-197501

CALIFORNIA SPEC.

main82210-12691iTE37..USA197501-197504

CALIFORNIA SPEC.

main82210-12692iTE37..USA197504-197508

CALIFORNIA SPEC.

main82210-12693iTE37,51..SR5197508-197608

CALIFORNIA SPEC.

main82270-12030iKE30..USA197608-197701

main82270-12040iKE3#197608-197701

CANADA SPEC.

main82270-12050iTE3#,51..DLX,STD197608-197701

main82270-12060iTE3#,51..DLX,SPL,STD197608-197701

CAL.& H.A.

main82270-12070iTE37,51..SR5197608-197701

main82270-12080iTE37,51..SR5197608-197701

CAL.& H.A.

main82270-12250iTE3#,51197701-197708

main82270-12270iKE3#,50197701-197708

main82270-12320iKE30..USA197708-197808

main82270-12321iKE30..USA197808-197811

main82270-12322iKE30..USA197811-197908

main82270-12330iTE3#,51197708-197808

main82270-12331iTE31,38,51..DLX,SPL197808-197908

main82270-12340iKE30,50..CND197708-197808

main82270-12341iKE30,50..CND197808-197811

main82270-12342iKE30,50..CND197811-197908

main82270-12630iTE37,51..SR5197808-197908

main82270-12640iKE30..USA197808-197811

HEATER=HEAVY & ULTRA HEAVY

main82270-12641iKE30..USA197811-197908

HEATER=HEAVY & ULTRA HEAVY

main82270-12650iTE31,38,51..DLX,SPL197808-197908

HEATER=HEAVY & ULTRA HEAVY

main82270-12660iTE37,51..SR5197808-197908

HEATER=HEAVY & ULTRA HEAVY

82210CFUSIBLE LINK

main90982-08021iKE3#,TE3#,51..DLX,SPL,STD197408-197701

main90982-08032iTE37,51..SR5197408-197701

W/AMMETER

main90982-08052iKE3#,50,TE3#,51..DLX,SPL,STD197701-197908

main90982-08053iTE37,51..SR5197701-197908

W/AMMETER

82211WIRE, HEATER BLOWER FAN SWITCH

main82223-12060iTE51197603-197701

82216WIRE, REAR WINDOW DEFOGGER

main82216-12010iKE3#,TE31,37,51..CP,HT,SED197408-197701

main82216-12020iTE51..LB197603-197908

main82216-12040iKE3#,TE31,37,51..CP,HT,SED197701-197908

82221WIRE, OIL PRESSURE SWITCH

main82221-12040iTE37..USA197408-197411

main82221-12041iTE37..USA197411-197508

CALIFORNIA SPEC.

main82221-12060iTE3#..DLX,STD197408-197508

main82221-12070iTE37..USA197411-197508

main82221-12080iTE3#,51..DLX,STD197508-197608

sub82221-12081

main82221-12090iTE37..USA197508-197603

main82221-12091iTE37,51..SR5197603-197608

sub82221-12092

main82221-12100iTE37,51..SR5197508-197608

CALIFORNIA SPEC.

main82221-12110iTE3#,51..DLX,STD197508-197608

main82221-12140iTE3#,51..DLX,SPL,STD197608-197701

main82221-12150iTE37,51..SR5197608-197701

main82221-12160iTE3#,51..MTM..(DLX,SPL,STD)197701-197708

main82221-12170iTE37,51..SR5197701-197708

main82221-12180iTE3#,51..A40197701-197708

main82221-12190iKE3#,50197701-197708

main82221-12260iTE31,38,51..MTM..(DLX,STD)197708-197808

main82221-12261iTE31,38,51..MTM..DLX197808-197908

main82221-12270iTE37,51..SR5197708-197808

main82221-12271iTE37,51..SR5197808-197908

main82221-12280iTE31,38,51..A40197708-197808

main82221-12281iTE31,38,51..A40197808-197908

main82221-12290iKE30,50..K40197708-197811

main82221-12291iKE30,50..K40197811-197908

main82221-12300iKE30..K50197708-197811

main82221-12301iKE30..K50197811-197908

82223WIRE, SWITCH

main82223-12060iKE50,TE51197701-197908

82223AWIRE, REAR WIPER SWITCH

main82223-12050iTE51..LB197603-197701

main82223-12260iKE50,TE38,51..LB,WG197701-197908

main82223-12290iTE51..LB197708-197908

L/HEATER

main82223-13010iTE38197408-197701

82230WIRING ASSY, FRONT SIDE

main82230-12010iTE3#197502-197505

CANADA SPEC.

main82230-12010iTE3#197408-197502

main82230-12030iTE3#197408-197502

CALIFORNIA SPEC.

main82230-12031iTE3#197502-197505

CALIFORNIA SPEC.

main82230-12032iTE3#197505-197508

CALIFORNIA SPEC.

main82230-12050iTE3#197502-197505

main82230-12051iTE3#197505-197508

main82230-12060iTE3#,51..DLX,STD197508-197608

main82230-12070iTE3#,51..DLX,STD197508-197608

CALIFORNIA SPEC.

main82230-12090iTE37,51..SR5197508-197608

main82230-12100iTE37,51..SR5197508-197608

CALIFORNIA SPEC.

main82230-12120iTE3#,51..DLX,STD197608-197701

main82230-12130iTE3#,51..DLX,SPL,STD197608-197701

CAL.& H.A.

main82230-12140iTE37,51..SR5197608-197701

main82230-12150iTE37,51..SR5197608-197701

CAL.& H.A.

main82230-12280iTE31..A40..SPL;TE3#,51..DLX,SR5,STD197701-197708

main82230-12300iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197701-197708

CAL.& H.A.

main82230-12310iKE30..USA197701-197708

main82230-12320iKE3#,50..DLX,STD;KE30..K40..2D..USA197701-197708

main82230-12390iTE3#,51..CND197708-197808

main82230-12391iTE3#,51..CND197808-197908

main82230-12400iTE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA197708-197808

main82230-12401iTE3#,51197808-197908

main82230-12410iTE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA197708-197808

CAL.& H.A.

main82230-12411iTE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA197808-197908

CALIFORNIA SPEC.

main82230-12420iKE30..USA197708-197808

main82230-12421iKE30..USA197808-197908

main82230-12430iKE30,50..CND197708-197808

main82230-12431iKE30,50..CND197808-197908

82242WIRE, LAMP FAILURE INDICATOR RELAY

main82214-12060iTE51..SR5197603-197701

L/VALVE FAILURE RELAY

main82241-12010iTE3#197408-197701

L/HEAVY DUTY DEFOGGER

main82241-12030iKE3#,TE3#,51..DLX,SR5,STD197408-197701

W/HEAVY DUTY DEFOGGER

82250WIRING ASSY, TO GENERATOR

main82261-12010iKE3#197408-197603

main82261-12011iKE3#197603-197608

main82261-12050iKE3#197608-197701

82259WIRE, DISTRIBUTOR

main82259-12010iKE30..STD197408-197701

main82259-12030iKE30..USA197608-197701

main82259-12040iKE3#,50..DLX,STD197701-197908

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-12070iTE3#..MTM197408-197701

main82310-12130iKE3#197408-197508

sub82310-12070

main82310-12140iTE3#,51..MTM197508-197608

CARIFORNIA SPEC.

main82310-12181iKE30..K50197701-197708

82341WIRE, OVER HEAD CONSOLE

main82341-12020iTE37..USA197408-197508

main82341-12080iTE37..USA197508-197701

82350WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)

main82350-12010iKE30,TE31,38..4D197408-197908

82374WIRE, WASHER

main82375-12020iKE3#,TE3#197408-197508

main82375-12030iKE3#,TE3#,51197508-197608

main82375-12031iKE3#,TE3#,51197608-197701

82410HARNESS ASSY, WIRING TO REAR LAMP

main82214-13010iTE38197408-197411

W/REAR WIPER

main82214-13020iTE38197411-197701

W/REAR WIPER

main82214-13020iTE38197408-197411

W/REAR WIPER,CALIFORNIA SPEC.

main82214-13030iTE38197408-197701

L/REAR WIPER

main82341-13020iTE38197408-197608

L/REAR WIPER,CALIFORNIA SPEC.

main82410-12140iKE3#,TE31,37197408-197701

main82410-12210iTE51..CP197603-197701

82420WIRING ASSY, CHASSIS

main82420-12090iTE31,37197408-197608

CALIFORNIA SPEC.

main82420-12110iKE3#,TE31,37197408-197701

main82420-12170iTE51..LB197603-197608

main82420-12180iTE51..LB197603-197701

main82420-12190iTE51..CP197603-197701

main82420-12200iTE51..CP197603-197608

CALIFORNIA SPEC.

main82420-12210iKE3#,TE31,37,51..CP,HT,SED197701-197708

main82420-12212iKE30,TE31,37,51..CP,HT,SED197708-197908

main82420-12230iKE50,TE51..LB197701-197708

main82420-12231iKE50,TE51..LB197708-197908

main82420-12270iKE50,TE51..LB197701-197708

W/REAR WIPER

main82420-12271iTE51..LB197708-197908

W/REAR WIPER

main82420-13070iTE38197408-197701

L/REAR WIPER

main82420-13100iTE38197408-197701

W/REAR WIPER

main82420-13120iTE38197701-197908

L/REAR WIPER

main82420-13130iTE38197701-197908

W/REAR WIPER

82470WIRE ASSY, LICENSE LAMP FEED

main82470-12020iTE51..CP197603-197908

main82470-13031iTE38197701-197908

main82470-13050iTE38197408-197701

W/REAR DEFOGGER,L/REAR WIPER

main82470-13051iTE38197701-197908

W/REAR,DEFOGGER

main82470-13060iTE38197408-197701

W/REAR WIPER

main82470-13061iTE38197701-197908

W/REAR WIPER,DEFOGGER

82491PLATE, WIRING HARNESS PROTECTOR, NO.1

main82817-12080iKE3#,TE3#,51197408-197701

RH.

main82829-12010iKE3#,TE3#,51197408-197701

LH.

82492PLATE, WIRING HARNESS PROTECTOR, NO.2

main53797-12030iKE3#,TE3#,51197408-197701

82510WIRING ASSY, ROOF

main82510-12020iKE50,TE51197408-197908

main82510-12050iTE37..USA197408-197508

main82510-12060iTE51..CP..DLX197603-197707

main82510-12080iTE37..USA197508-197701

main82510-12090iTE51..LB..DLX197603-197701

main82510-12100iTE51..LB..SR5197603-197701

main82510-12110iTE51..CP..SR5197603-197701

main82510-12130iKE30,TE31197710-197908

main82510-12140iTE37197805-197908

main82510-12150iKE50,TE51..LB197805-197908

main82510-12160iTE51..CP197805-197908

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12090iKE3#,TE31,37197408-197908

main82817-12110iKE30,50,TE3#,51197603-197806

L=450

main82817-12140iKE30,TE3#,51197511-197908

CALIFORNIA SPEC.

main82817-12190iTE51..LB197605-197908

REAR WIPER WIRE

9015950098

main90159-50098

9161140616

main91611-40616

9165140612

main91651-40612

9165640616

main91656-40616

9354015012

main93540-15012

9356014012

main93560-14012

9452500600

main94525-00600

34 parts on this diagram · 8 diagrams in section
