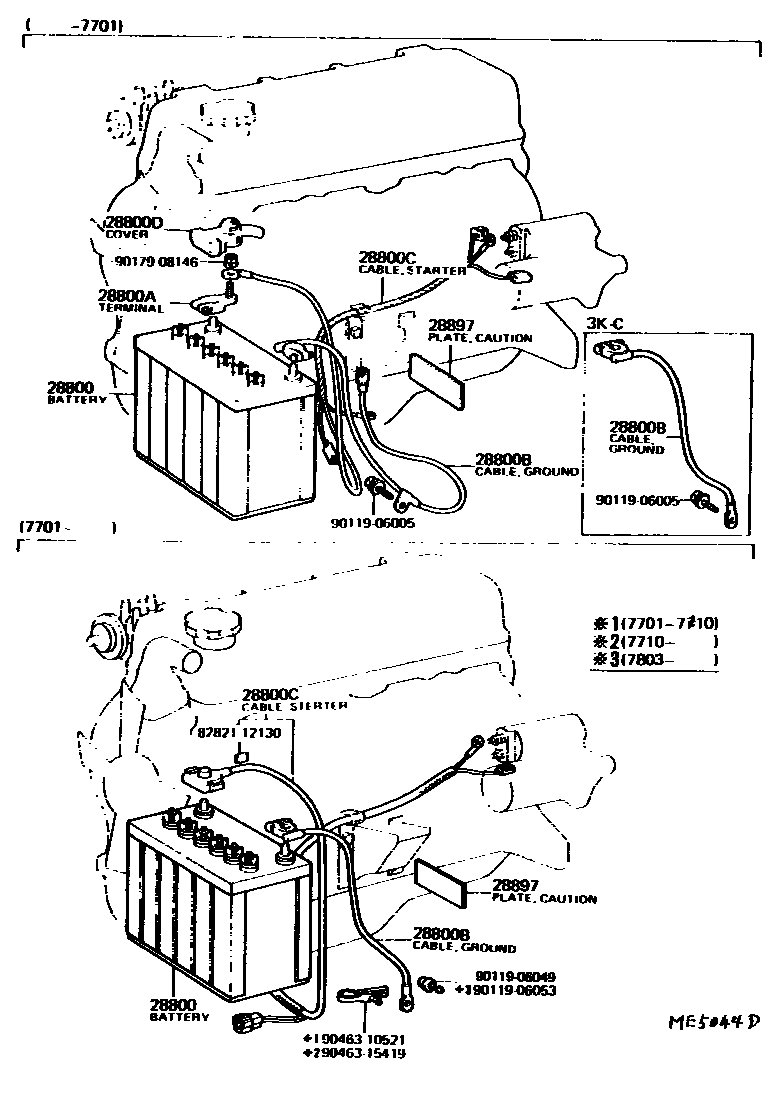

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26010i2TC..TE3#,51197408-197908

N50L

sub28800-27010

main28800-30131i3KC,2TC..KE3#,50,TE3#,51197408-197908

55D26R,N50ZL

sub28800-73010

main28800-31031i2TC..TE3#,51197408-197908

32C24L,N40L

sub28800-31021

28800ATERMINAL, BATTERY POSITIVE

main90982-05009i3KC,2TC..KE3#,TE3#197408-197512

main90982-05013i3KC,2TC..KE3#,TE3#,51197512-197701

28800BCABLE, BATTERY TO GROUND

main90982-02098i2TC..TE3#,51197408-197908

main90982-02100i3KC..KE3#197408-197908

main90982-02127i3KC,2TC..KE3#,50,TE3#,51197701-197803

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-12030i3KC..KE3#197408-197511

main82021-12060i2TC..TE3#,51197408-197701

main82021-12080i3KC..KE3#197511-197701

main82021-12090i3KC..KE3#,50197701-197908

main82021-12110i2TC..TE3#,51197701-197908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12030i3KC,2TC..KE3#,TE3#197408-197701

sub82821-30080

main82821-12040i3KC..KE3#197511-197701

28897PLATE, BATTERY CAUTION

main28897-26010i2TC..TE3#,51197410-197708

FOR N40L,USA SPEC.

main28897-26010i2TC..TE31..A40..SPL..USA;2TC..TE3#,51..(DLX,SR5)..USA197708-197908

FOR N40L

main28897-38010i3KC,2TC..KE30,50,TE3#,51..CND197810-197908

FOR N50ZL,CANADA PACK

main28897-45010i2TC..TE3#,51197601-197708

FOR N50L,N50ZL,USA SPEC.

sub28897-26010

main28897-45010i3KC,2TC..KE30,TE3#,51..USA197708-197908

FOR N50L,N50ZL

sub28897-26010

8282112130RETAINER, HEADLAMP HARNESS

main82821-12130

9011906005

main90119-06005

9011906049

main90119-06049

9011906053

main90119-06053

9017908146

main90179-08146

9046310521

main90463-10521

9046315419

main90463-15419

13 parts on this diagram · 1 diagram in section
