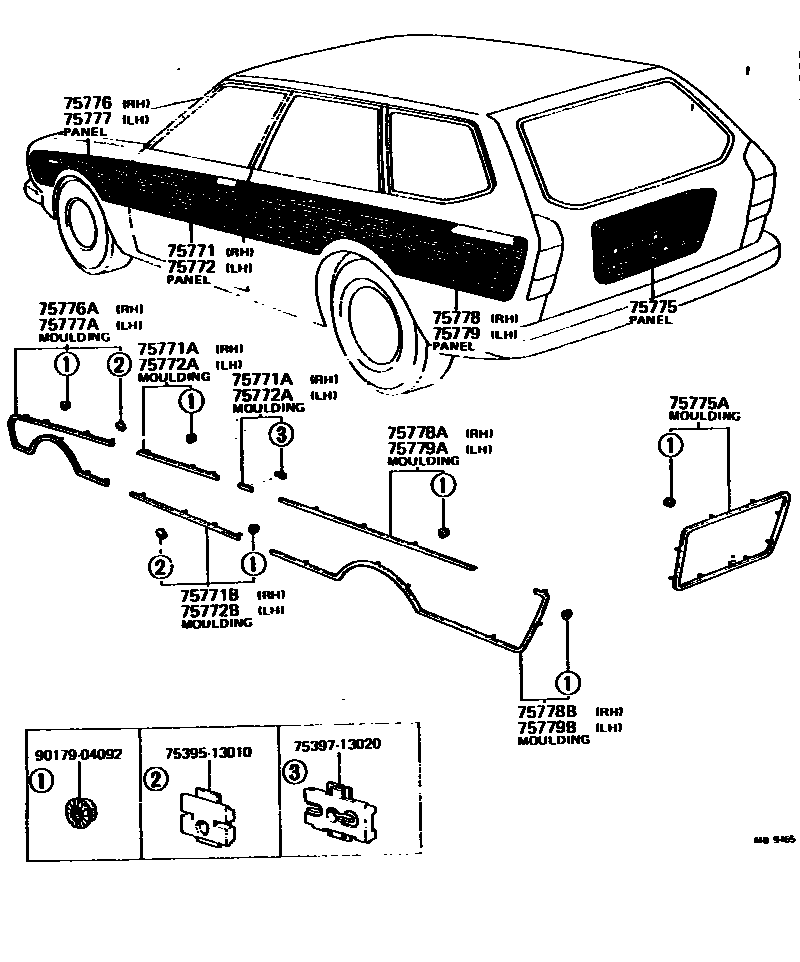

WOODEN GRAIN PANEL & MOULDING

0001 1 0002 1

75771PANEL, FRONT DOOR OUTER SIDE FINISH, RH

main75985-13010iTE38..2D197408-197608

main75985-13020iTE38..4D197408-197908

75771AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.1

main75071-19015iTE38..2D197408-197608

FRONT

main75071-19025iTE38..4D197408-197908

FRONT

main75733-19015iTE38..2D197408-197608

REAR

main75733-19025iTE38..4D197408-197908

REAR

75771BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.2

main75073-19015iTE38..2D197408-197608

main75073-19025iTE38..4D197408-197908

75772PANEL, FRONT DOOR OUTER SIDE FINISH, LH

main75986-13010iTE38..2D197408-197608

main75986-13020iTE38..4D197408-197908

75772AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.1

main75072-19015iTE38..2D197408-197608

FRONT

main75072-19025iTE38..4D197408-197908

FRONT

main75733-19015iTE38..2D197408-197608

REAR

main75734-19015iTE38..4D197408-197908

REAR

75772BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.2

main75074-19015iTE38..2D197408-197608

main75074-19025iTE38..4D197408-197908

75775PANEL, BACK DOOR OUTER SIDE FINISH

main75995-13010iTE38197408-197908

75775AMOULDING, BACK DOOR OUTER SIDE FINISH PANEL, NO.1

main75801-19055iTE38197408-197908

75776PANEL, FRONT FENDER OUTER SIDE FINISH, RH

main75981-13010iTE38197408-197908

75776AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, RH NO.1

main75601-19035iTE38197408-197908

75777PANEL, FRONT FENDER OUTER SIDE FINISH, LH

main75982-13010iTE38197408-197908

75777AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, LH NO.1

main75602-19035iTE38197408-197908

75778PANEL, QUARTER PANEL OUTSIDE FINISH, RH

main75991-13010iTE38..2D197408-197608

main75991-13020iTE38..4D197408-197908

75778AMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.1

main75605-19015iTE38..2D197408-197608

main75605-19025iTE38..4D197408-197908

75778BMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.2

main75065-19015iTE38..2D197408-197608

main75065-19025iTE38..4D197408-197908

75779PANEL, QUARTER PANEL OUTER SIDE FINISH, LH

main75992-13010iTE38..2D197408-197608

main75992-13020iTE38..4D197408-197908

75779AMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.1

main75606-19015iTE38..2D197408-197608

main75606-19025iTE38..4D197408-197908

75779BMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.2

main75066-19015iTE38..2D197408-197608

main75066-19025iTE38..4D197408-197908

7539513010CLIP, BACK DOOR MOULDING, NO.1

main75395-13010

7539713020CLIP, BACK DOOR MOULDING, NO.3

main75397-13020

9017904092

main90179-04092

21 parts on this diagram · 2 diagrams in section
