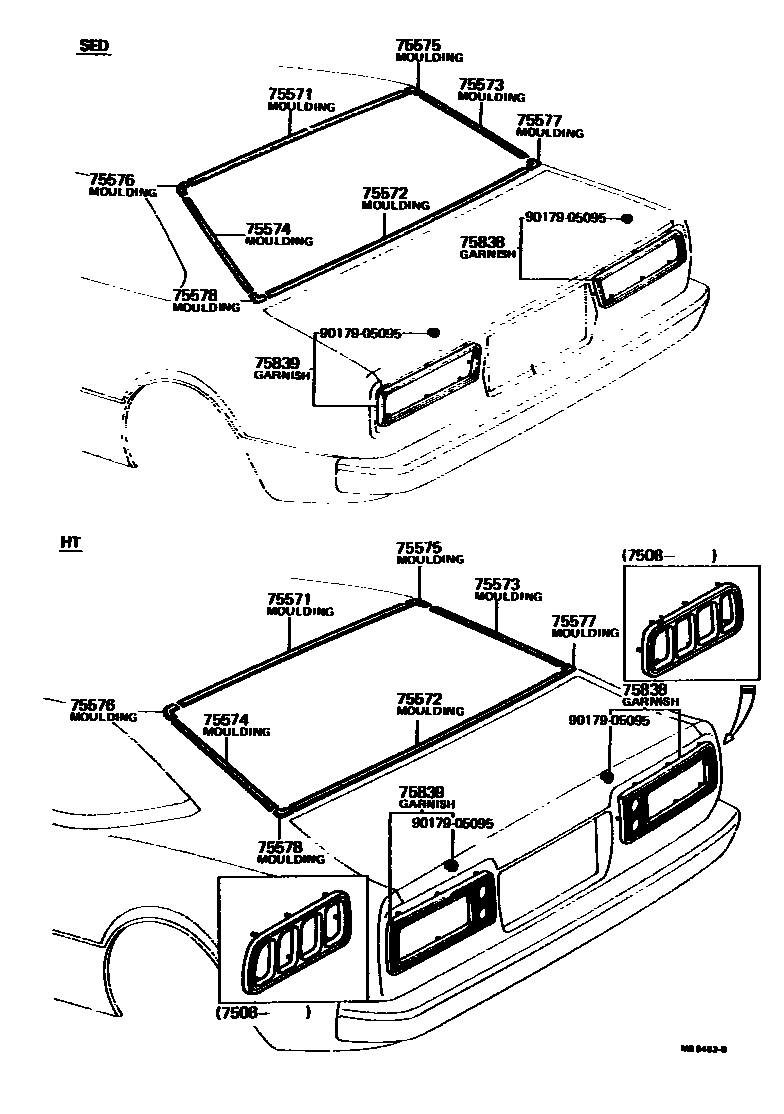

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main68293-13050iTE38197408-197908

sub68293-13040

main75571-12090iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37..DLX,SR5,STD197408-197808

sub75531-12120

main75571-12100iTE51..CP197603-197908

FOR RH.

main75571-12130iKE50,TE51..LB197603-197908

main75572-12090iTE51..CP197603-197908

FOR LH.

75572MOULDING, BACK WINDOW, LOWER

main75575-12040iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;KE30,TE31..(A40,K40)..(DLX,STD)197408-197808

main75575-12050iKE35,TE37197408-197908

main75575-12060iTE51..CP197603-197908

main75581-12030iKE50,TE51..LB197603-197908

75573MOULDING, BACK WINDOW SIDE, RH

main75533-12140iTE31,37..DLX,SR5;KE30,TE31..SPL..USA197808-197908

main75573-12120iKE50,TE51..LB197603-197908

75574MOULDING, BACK WINDOW SIDE, LH

main75533-12140iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37..DLX,SR5,STD197408-197808

main75574-12060iKE50,TE51..LB197603-197908

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-12010iTE31..DLX;KE30,TE31..SPL..USA197808-197908

main75581-12020iKE35,TE37197408-197908

main75581-12050iKE50,TE51..LB197603-197908

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-12010iTE31..DLX;KE30,TE31..SPL..USA197808-197908

main75581-12020iKE35,TE37197408-197908

main75581-12050iKE50,TE51..LB197603-197908

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75543-12010iTE31..DLX;KE30,TE31..SPL..USA197808-197908

main75583-12020iKE35,TE37197408-197908

main75583-12030iTE51..CP197603-197908

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75543-12010iKE30..USA;TE31..MTM;TE31..A40..SPL..CND;KE30,TE31..(A40,K40)..(DLX,STD)197408-197808

main75583-12020iKE35,TE37197408-197908

main75583-12030iTE51..CP197603-197908

75838GARNISH, REAR COMBINATION LAMP, RH

main75911-19025iKE30,TE31..DLX,STD197408-197908

main75911-19035iTE51..CP197603-197706

main75911-19036iTE51..CP197706-197908

main75911-19065iTE37..SR5197508-197908

main75911-19075iKE35197701-197908

main75911-19085iKE35,TE37..DLX197508-197607

main75911-19085-11iTE37..DLX197607-197708

BLACK

main75911-19095iTE37..USA197408-197508

main75911-19115iKE50197701-197908

main75911-19125iTE51..LB197603-197908

main75911-19155iKE30,TE31..SPL197608-197908

PAINTED

75839GARNISH, REAR COMBINATION LAMP, LH

main75912-19015iKE30,TE31..DLX,STD197408-197908

CHROME PLATED

main75912-19025iTE51..CP197603-197706

main75912-19026iTE51..CP197706-197908

main75912-19055iTE37..SR5197508-197908

main75912-19065iKE35197701-197908

main75912-19075iKE35,TE37..DLX197508-197607

main75912-19075-11iTE37..DLX197607-197708

BLACK

main75912-19085iTE37..USA197408-197508

main75912-19105iKE50197701-197908

main75912-19115iTE51..LB197603-197908

main75912-19145iKE30,TE31..SPL197608-197908

PAINTED

9017905095

main90179-05095

11 parts on this diagram · 3 diagrams in section
