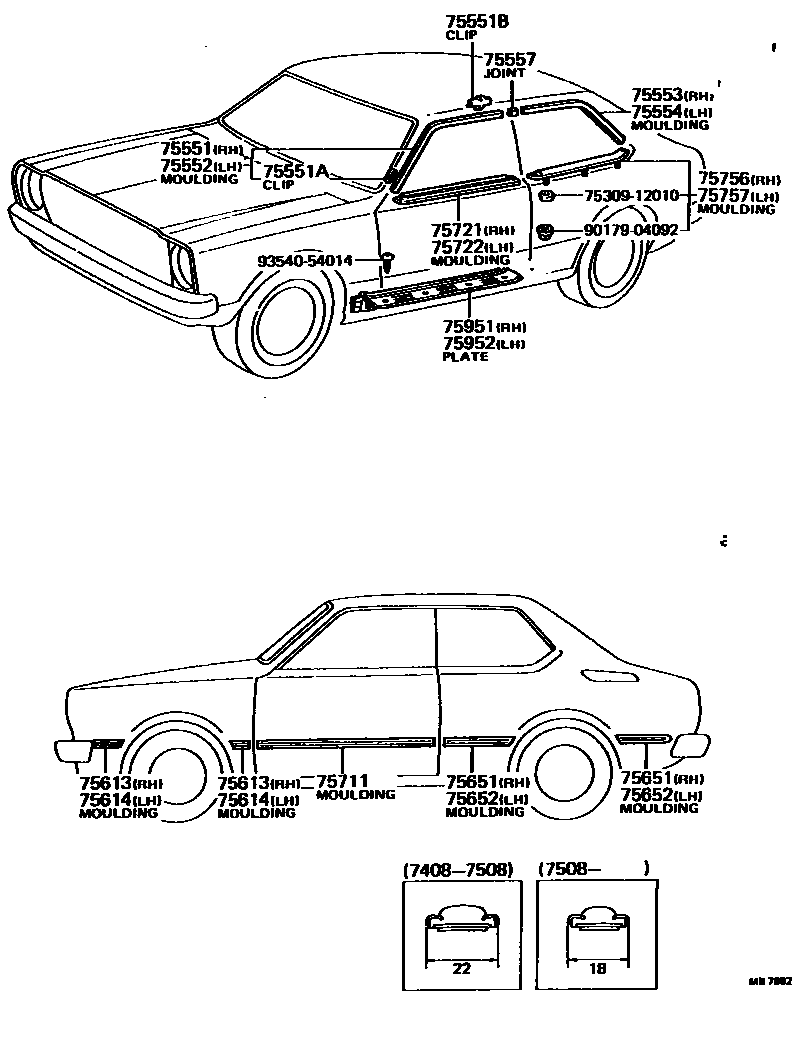

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-13040iTE38197408-197710

sub75551-13041

main75551-13041iTE38197710-197908

main75551-19035iKE30,TE31197408-197710

main75551-19036iKE30,TE31..2D..USA197710-197908

sub75551-19035

main75551-19045iKE35,TE37197408-197710

main75551-19046iTE37197710-197908

sub75551-19045

main75551-19065iKE50,TE51197603-197710

sub75551-19066

main75551-19066iKE50,TE51197710-197908

main75551-19095iKE30,TE31..SPL197608-197710

BLACK

main75551-19096iKE30,TE31..2D..SPL197710-197908

BLACK

sub75551-19095

main75551-19105iKE30,TE31..4D197710-197908

75551ACLIP, ROOF DRIP MOULDING, NO.1

main75561-12010iKE3#,50,TE3#,51197408-197908

FRONT RH.REAR LH.

main75562-12010iTE38;KE30,50,TE31,37,51..2D197408-197908

FRONT LH.REAR RH.

main75563-12010iKE30,TE31..4D197710-197908

75551BCLIP, ROOF DRIP MOULDING, NO.2

main76591-12010iTE38;KE30,50,TE31,37,51..2D197710-197908

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-13040iTE38197408-197710

sub75552-13041

main75552-13041iTE38197710-197908

main75552-19035iKE30,TE31197408-197710

main75552-19036iKE30..2D..USA;TE31..MTM..2D;TE31..A40..SPL..CND;KE30,TE31..(A40,K40)..2D..(DLX,STD)197710-197908

sub75552-19035

main75552-19045iKE35,TE37197408-197710

main75552-19046iTE37197710-197908

sub75552-19045

main75552-19065iKE50,TE51197603-197710

sub75552-19066

main75552-19066iKE50,TE51197710-197908

main75552-19095iKE30,TE31..SPL197608-197710

BLACK

main75552-19096iKE30,TE31..2D..SPL197710-197908

BLACK

sub75552-19095

main75552-19105iKE30,TE31..4D197710-197908

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75055-19015iKE30,TE31..4D197710-197908

main75553-12120iKE30..2D..USA;TE31..MTM..2D;TE31..A40..SPL..CND;KE30,TE31..(A40,K40)..2D..(DLX,STD)197408-197908

main75553-12190iKE50,TE51..LB197603-197908

main75553-12200iKE30,TE31..2D..SPL197608-197908

BLACK

main75553-12210iKE30,TE31..4D..SPL197608-197710

BLACK

main75553-13050iTE38197408-197908

main75553-19015iKE30,TE31..4D197408-197710

main75553-19025iKE35,TE37197408-197908

main75553-19045iTE51..CP197603-197908

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75056-19015iKE30,TE31..4D197710-197908

main75554-12120iKE30,TE31..2D..USA197408-197908

main75554-12190iKE50,TE51..LB197603-197908

main75554-12200iKE30,TE31..2D..SPL197608-197908

BLACK

main75554-12210iKE30,TE31..4D..SPL197608-197710

BLACK

main75554-13050iTE38197408-197908

main75554-19015iKE30,TE31..4D197408-197710

main75554-19025iKE35,TE37197408-197908

main75554-19045iTE51..CP197603-197908

75557JOINT, ROOF DRIP SIDE FINISH MOULDING

main75557-12040iKE50,TE37,51;KE30,TE31..2D..USA197408-197908

main75596-12050iKE30,TE31..2D..SPL197608-197908

BLACK

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-12040iKE3#,TE3#..DLX,SPL,STD197508-197805

main75611-12050iTE37..SR5197508-197805

sub75611-12040

main75611-12080-01iKE30,TE31,38197805-197908

REAR,BLACK,BLACK

main75611-12080-04iKE30,TE31,38197805-197908

REAR,D.BLUE,BLUE

main75611-12100-01iTE37197805-197908

REAR,BLACK,BLACK

main75611-12100-04iTE37197805-197908

REAR,D.BLUE,BLUE

main75613-12100iKE3#,TE3#..DLX,STD197408-197508

FRONT

main75613-12110iTE37..USA197408-197508

FRONT

main75613-12120iKE50,TE51197603-197908

FRONT

sub75611-12040

main75613-12160-01iKE30,TE31,38197805-197908

FRONT,BLACK,BLACK

main75613-12160-04iKE30,TE31,38197805-197908

FRONT,D.BLUE,BLUE

main75613-12170-01iTE37197805-197908

FRONT,BLACK,BLACK

main75613-12170-04iTE37197805-197908

FRONT,D.BLUE,BLUE

main75615-12010iKE3#,TE3#..DLX,STD197408-197508

REAR

main75615-12020iTE37..USA197408-197508

REAR

main75615-12030iKE50,TE51197603-197908

REAR

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75611-12040iKE3#,TE3#..DLX,SPL,STD197508-197805

main75611-12050iTE37..SR5197508-197805

sub75611-12040

main75612-12040-01iKE30,TE31,38197805-197908

REAR,BLACK,BLACK

main75612-12040-04iKE30,TE31,38197805-197908

REAR,D.BLUE,BLUE

main75612-12070-01iTE37197805-197908

REAR,BLACK,BLACK

main75612-12070-04iTE37197805-197908

REAR,D.BLUE,BLUE

main75613-12160-01iKE30,TE31,38197805-197908

FRONT,BLACK,BLACK

main75613-12160-04iKE30,TE31,38197805-197908

FRONT,D.BLUE,BLUE

main75613-12170-01iTE37197805-197908

FRONT,BLACK,BLACK

main75613-12170-04iTE37197805-197908

FRONT,D.BLUE,BLUE

main75614-12100iKE3#,TE3#..DLX,STD197408-197508

FRONT

main75614-12110iTE37..USA197408-197508

FRONT

main75614-12120iKE50,TE51197603-197908

FRONT

sub75611-12040

main75616-12030iKE3#,TE3#..DLX,STD197408-197508

REAR

main75616-12040iTE37..USA197408-197508

REAR

main75616-12050iKE50,TE51197603-197908

REAR

75651MOULDING, QUARTER, OUTSIDE RH

main75651-12110iKE3#,TE3#..2D..(DLX,STD)197408-197508

FRONT

main75651-12111iKE3#,TE3#..2D..(DLX,SPL,STD)197508-197805

FRONT

main75651-12120iKE30,TE31,38..4D197408-197508

FRONT

main75651-12130iTE37..USA197408-197508

FRONT

main75651-12131iTE37..SR5197508-197805

FRONT

main75651-12140iKE50,TE51197603-197908

FRONT

main75651-12170-01iKE30,TE31..2D197805-197908

FRONT,BLACK,BLACK

main75651-12170-04iKE30,TE31..2D197805-197908

FRONT,D.BLUE,BLUE

main75651-12190-01iTE37197805-197908

FRONT,BLACK,BLACK

main75651-12190-04iTE37197805-197908

FRONT,D.BLUE,BLUE

main75653-12010iKE3#,TE31,37..DLX,STD197408-197508

REAR

main75653-12011iKE3#,TE3#..DLX,SPL,STD197508-197805

REAR

sub75653-12070

main75653-12020iTE37..USA197408-197508

REAR

main75653-12021iTE37..SR5197508-197805

REAR

main75653-12030iKE50,TE51..LB197603-197908

REAR

main75653-12050iTE51..CP197603-197908

REAR

main75653-12100-01iKE30,TE31,38197805-197908

REAR,BLACK,BLACK

main75653-12100-04iKE30,TE31,38197805-197908

REAR,D.BLUE,BLUE

main75653-12140-01iTE37197805-197908

REAR,BLACK,BLACK

main75653-12140-04iTE37197805-197908

REAR,D.BLUE,BLUE

main75653-13020iTE38197408-197508

REAR

main75655-12010iKE50,TE51..LB197603-197908

CENTER

main75655-12020iTE51..CP197603-197908

CENTER

75652MOULDING, QUARTER, OUTSIDE LH

main75652-12110iKE3#,TE3#..2D..(DLX,STD)197408-197508

FRONT

main75652-12111iKE3#,TE3#..2D..(DLX,SPL,STD)197508-197805

FRONT

main75652-12120iKE30,TE31,38..4D197408-197508

FRONT

main75652-12130iTE37..USA197408-197508

FRONT

main75652-12131iTE37..SR5197508-197805

FRONT

main75652-12140iKE50,TE51197603-197908

FRONT

main75652-12150-01iKE30,TE31..2D197805-197908

FRONT,BLACK,BLACK

main75652-12150-04iKE30,TE31..2D197805-197908

FRONT,D.BLUE,BLUE

main75652-12190-01iTE37197805-197908

FRONT,BLACK,BLACK

main75652-12190-04iTE37197805-197908

FRONT,D.BLUE,BLUE

main75653-12030iKE50,TE51..LB197603-197908

REAR

main75653-12050iTE51..CP197603-197908

REAR

main75653-12100-01iKE30,TE31,38197805-197908

REAR,BLACK,BLACK

main75653-12100-04iKE30,TE31,38197805-197908

REAR,D.BLUE,BLUE

main75653-12140-01iTE37197805-197908

REAR,BLACK,BLACK

main75653-12140-04iTE37197805-197908

REAR,D.BLUE,BLUE

main75654-12010iKE3#,TE31,37..DLX,STD197408-197508

REAR

main75654-12011iKE3#,TE3#..DLX,SPL,STD197508-197805

REAR

sub75653-12070

main75654-12020iTE37..USA197408-197508

REAR

main75654-12021iTE37..SR5197508-197805

REAR

main75654-13020iTE38197408-197508

REAR

main75656-12010iKE50,TE51..LB197603-197908

CENTER

main75656-12020iTE51..CP197603-197908

CENTER

75711MOULDING, FRONT DOOR OUTSIDE, NO.1

main75731-12090iKE3#,TE3#..2D197408-197508

main75731-12091iKE3#,TE3#..2D197508-197805

sub75611-30041

main75731-12100iKE30,TE31,38..4D197408-197508

main75731-12101iKE30,TE31,38..4D197508-197908

sub75611-30041

main75731-12110iKE50,TE51197603-197908

sub75611-30041

main75731-12190-01iKE30,TE31,37..2D197805-197908

FOR RH.BLACK,BLACK

sub75731-10021

main75731-12190-04iKE30,TE31,37..2D197805-197908

FOR RH.D.BLUE,BLUE

sub75731-10021

main75731-12200-01iKE30,TE31,38..4D197805-197908

FOR RH.BLACK,BLACK

main75731-12200-04iKE30,TE31,38..4D197805-197908

FOR RH.D.BLUE,BLUE

main75732-12090-01iKE30,TE31,37..2D197805-197908

FOR LH.BLACK,BLACK

sub75732-10021

main75732-12090-04iKE30,TE31,37..2D197805-197908

FOR LH.D.BLUE,BLUE

sub75732-10021

main75732-12100-01iKE30,TE31,38..4D197805-197908

FOR LH.BLACK,BLACK

main75732-12100-04iKE30,TE31,38..4D197805-197908

FOR LH.D.BLUE,BLUE

75721MOULDING, FRONT DOOR BELT, RH

main75710-12050iTE31..2D..DLX197408-197908

main75710-12060iTE31..4D..DLX..USA197408-197908

main75710-12070iKE50..USA197603-197908

main75710-12090iTE37..USA197408-197908

main75710-12180iTE31..DLX..CND197808-197908

main75710-12190iTE37..CND197808-197908

main75710-12220iTE51..SR5..CND197808-197908

75722MOULDING, FRONT DOOR BELT, LH

main75720-12050iTE31..2D..DLX197408-197908

main75720-12060iTE31..4D..DLX197408-197908

main75720-12070iKE50..USA197603-197908

main75720-12090iTE37..USA197408-197908

main75720-12180iTE31..DLX..CND197808-197908

main75720-12190iTE37..CND197808-197908

main75720-12220iTE51..SR5..CND197808-197908

75756MOULDING, QUARTER BELT, RH

main75660-19015iTE31..2D..DLX197408-197908

main75660-19025iKE35,TE37197408-197908

sub75660-19145

main75660-19065iTE51..CP..SR5..USA197603-197908

main75660-19085iTE51..LB..SR5..USA197603-197908

main75660-19145iTE37..CND197808-197908

main75660-19155iTE51..CP..SR5..CND197808-197908

main75660-19165iTE51..LB..SR5..CND197808-197908

75757MOULDING, QUARTER BELT, LH

main75670-19015iTE31..2D..DLX197408-197908

main75670-19025iKE35,TE37197408-197908

sub75670-19145

main75670-19065iTE51..CP..SR5..USA197603-197908

main75670-19085iTE51..LB..SR5..USA197603-197908

main75670-19145iTE37..CND197808-197908

main75670-19155iTE51..CP..SR5..CND197808-197908

main75670-19165iTE51..LB..SR5..CND197808-197908

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-12010iKE30,TE31,38..2D197408-197505

main67913-12011-01iKE3#,TE31,37..2D197701-197908

BLACK,BLACK

sub67913-12011

main67913-12011-04iKE35,TE31,37..2D..(DLX,SR5)197701-197908

BLUE,BLUE

sub67913-12011

main67913-12011-06iKE3#,TE31,37..2D197701-197908

L.BROWN,BROWN

sub67913-12011

main67913-12020iKE30,TE31,38..4D197408-197508

main67913-12020-01iKE30,TE31,38..4D197508-197701

BLACK,BLACK

sub67913-12020

main67913-12020-06iKE30,TE31,38..4D197508-197701

BROWN,BROWN

sub67913-12020

main67913-12021-01iKE30,TE31,38..4D197701-197908

BLACK,BLACK

sub67913-12021

main67913-12021-04iTE31,38..4D..DLX197701-197908

BLUE,BLUE

sub67913-12021

main67913-12021-06iKE30,TE31,38..4D197701-197908

L.BROWN,BROWN

sub67913-12021

main67913-12030iKE35,TE37197408-197505

main67913-12070iKE3#,TE3#..2D197505-197508

main67913-12070-01iKE3#,TE3#..2D197508-197701

BLACK,BLACK

sub67913-12070

main67913-12070-06iKE3#,TE3#..2D197508-197701

BROWN,BROWN

sub67913-12070

main67913-12080-01iTE51197603-197701

BLACK,BLACK

main67913-12080-06iTE51197603-197701

BROWN,BROWN

main67913-12090-01iKE50,TE51197701-197908

BLACK,BLACK

main67913-12090-04iKE50,TE51197701-197908

BLUE,BLUE

main67913-12090-06iKE50,TE51197701-197908

L.BROWN,BROWN

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-12010iKE30,TE31,38..2D197408-197505

main67914-12011-01iKE3#,TE31,37..2D197701-197908

BLACK,BLACK

sub67914-12011

main67914-12011-04iKE30,TE31,37..2D197701-197908

BLUE,BLUE

sub67914-12011

main67914-12011-06iKE3#,TE31,37..2D197701-197908

L.BROWN,BROWN

sub67914-12011

main67914-12020iKE30,TE31,38..4D197408-197508

main67914-12020-01iKE30,TE31,38..4D197508-197701

BLACK,BLACK

sub67914-12020

main67914-12020-06iKE30,TE31,38..4D197508-197701

BROWN,BROWN

sub67914-12020

main67914-12021-01iKE30,TE31,38..4D197701-197908

BLACK,BLACK

sub67914-12021

main67914-12021-04iTE31,38..4D..DLX197701-197908

BLUE,BLUE

sub67914-12021

main67914-12021-06iKE30,TE31,38..4D197701-197908

L.BROWN,BROWN

sub67914-12021

main67914-12030iKE35,TE37197408-197505

main67914-12070iKE3#,TE3#..2D197505-197508

main67914-12070-01iKE3#,TE3#..2D197508-197701

BLACK,BLACK

sub67914-12070

main67914-12070-06iKE3#,TE3#..2D197508-197701

BROWN,BROWN

sub67914-12070

main67914-12080-01iTE51197603-197701

BLACK,BLACK

main67914-12080-06iTE51197603-197701

BROWN,BROWN

main67914-12090-01iKE50,TE51197701-197908

BLACK,BLACK

main67914-12090-04iKE50,TE51197701-197908

BLUE,BLUE

main67914-12090-06iKE50,TE51197701-197908

L.BROWN,BROWN

7530912010

main75309-12010

9017904092

main90179-04092

9354054014

main93540-54014

21 parts on this diagram · 6 diagrams in section
