DECK BOARD & DECK TRIM COVER

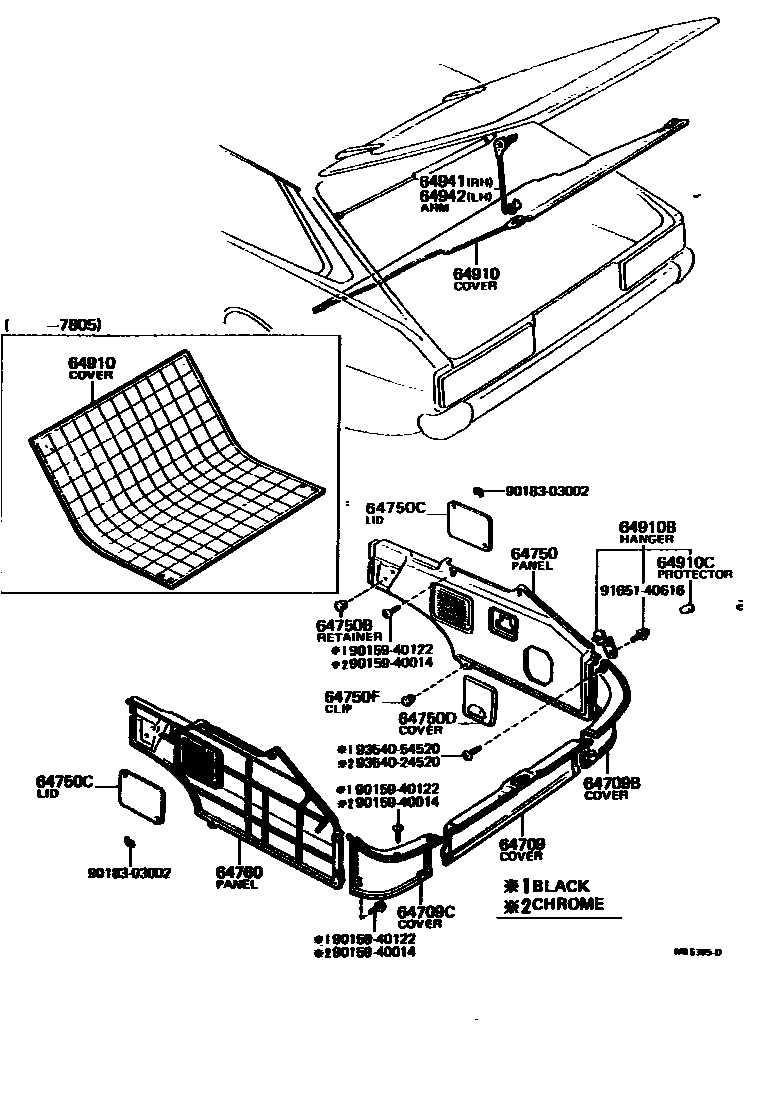

Parts diagram
64709COVER SUB-ASSY, LOWER BACK PANEL
main62671-12010-01i197603-197908
BLACK,BLACK
main62671-12010-04i197701-197908
BLUE,BLUE
main62671-12010-06i197603-197605
BROWN,BROWN
main62671-12010-08i197603-197701
IVORY,IVORY
main62671-12010-16i197605-197701
BROWN,BROWN
main62671-12010-26i197701-197908
L.BROWN,BROWN
64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)
main64745-12010-01i197603-197701
BLACK,BLACK
sub64745-12010
main64745-12010-04i197701-197908
BLUE,BLUE
sub64745-12010
main64745-12010-06i197603-197701
BROWN,BROWN
sub64745-12010
main64745-12010-08i197603-197701
IVORY,IVORY
sub64745-12010
main64745-12010-11i197701-197908
BLACK,BLACK
sub64745-12010
main64745-12010-16i197701-197908
L.BROWN,BROWN
sub64745-12010
64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)
main64746-12010-01i197603-197701
BLACK,BLACK
sub64746-12010
main64746-12010-04i197701-197908
BLUE,BLUE
sub64746-12010
main64746-12010-06i197603-197701
BROWN,BROWN
sub64746-12010
main64746-12010-08i197603-197701
IVORY,IVORY
sub64746-12010
main64746-12010-11i197701-197908
BLACK,BLACK
sub64746-12010
main64746-12010-16i197701-197908
L.BROWN,BROWN
sub64746-12010
64750PANEL ASSY, DECK SIDE TRIM, RH
main64714-12010-04i197701-197908
L/WASHER,REAR ROOM LAMP,BLUE,BLUE
sub64714-12010
main64714-12010-11i197701-197908
L/WASHER,REAR ROOM LAMP,BLACK,BLACK
sub64714-12010
main64714-12010-16i197701-197908
L/WASHER,REAR ROOMLAMP,L.BROWN,BROWN
sub64714-12010
main64714-12020-01i197603-197701
L/WASHER,REAR ROOM LAMP,BLACK,BLACK
sub64714-12020
main64714-12020-04i197701-197908
L/WASHER,REAR ROOM LAMP,BLUE,BLUE
sub64714-12020
main64714-12020-06i197603-197701
L/WASHER,REAR ROOM LAMP,BROWN,BROWN
sub64714-12020
main64714-12020-08i197603-197701
L/WASHER,REAR ROOM LAMP,IVORY,IVORY
sub64714-12020
main64714-12020-11i197701-197908
L/WASHER,REAR ROOM LAMP,BLACK,BLACK
sub64714-12020
main64714-12020-16i197701-197908
L/WASHER,REAR ROOMLAMP,L.BROWN,BROWN
sub64714-12020
main64714-12030-01i197603-197605
W/WASHER,L/REAR ROOMLAMP,BLACK,BLACK
sub64714-12030
main64714-12030-06i197603-197605
W/WASHER,L/REAR ROOMLAMP,BROWN,BROWN
sub64714-12030
main64714-12030-08i197603-197605
W/WASHER,L/REAR ROOMLAMP,IVORY,IVORY
sub64714-12030
main64714-12050-01i197603-197701
W/WASHER,REAR ROOM LAMP,BLACK,BLACK
sub64714-12050
main64714-12050-04i197701-197908
W/WASHER,REAR ROOM LAMP,BLUE,BLUE
sub64714-12050
main64714-12050-06i197603-197701
W/WASHER,REAR ROOM LAMP,BROWN,BROWN
sub64714-12050
main64714-12050-08i197603-197701
W/WASHER,REAR ROOM LAMP,IVORY,IVORY
sub64714-12050
main64714-12050-11i197701-197908
W/WASHER,REAR ROOM LAMP,BLACK,BLACK
sub64714-12050
main64714-12050-16i197701-197908
W/WASHER,REAR ROOMLAMP,L.BROWN,BROWN
sub64714-12050
main64714-12060-01i197605-197701
L/WASHER,W/REAR ROOMLAMP,BLACK,BLACK
sub64714-12060
main64714-12060-04i197701-197908
L/WASHER,W/REAR ROOMLAMP,BLUE,BLUE
sub64714-12060
main64714-12060-06i197605-197701
L/WASHER,W/REAR ROOMLAMP,BROWN,BROWN
sub64714-12060
main64714-12060-08i197605-197701
L/WASHER,W/REAR ROOMLAMP,IVORY,IVORY
sub64714-12060
main64714-12060-11i197701-197908
L/WASHER,W/REAR ROOMLAMP,BLACK,BLACK
sub64714-12060
main64714-12060-16i197701-197908
L/WASHER,W/RR.ROOMLAMP,L.BROWN,BROWN
sub64714-12060
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
main90467-06143-04i197701-197908
BLUE,BLUE
sub90467-06143
main90467-06143-11i197701-197908
BLACK,BLACK
sub90467-06143
main90467-06143-16i197701-197908
L.BROWN,BROWN
sub90467-06143
64750CLID, DECK SIDE TRIM, SPEAKER GRILLE
main64795-12010i197603-197908
64750DCOVER, DECK SIDE TRIM, WASHER
main64739-12010-01i197603-197701
BLACK,BLACK
sub64739-12010
main64739-12010-04i197701-197908
BLUE,BLUE
sub64739-12010
main64739-12010-06i197603-197701
BROWN,BROWN
sub64739-12010
main64739-12010-08i197603-197701
IVORY,IVORY
sub64739-12010
main64739-12010-11i197701-197908
BLACK,BLACK
sub64739-12010
main64739-12010-16i197701-197908
L.BROWN,BROWN
sub64739-12010
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-09069-01i197603-197908
BLACK,BLACK
sub90467-09069
main90467-09069-08i197603-197701
IVORY,IVORY
sub90467-09069
main90467-09069-16i197603-197701
BROWN,BROWN
sub90467-09069
main90467-09069-24i197701-197908
BLUE,BLUE
sub90467-09069
main90467-09069-26i197701-197908
L.BROWN,BROWN
sub90467-09069
64760PANEL ASSY, DECK SIDE TRIM, LH
main64715-12010-04i197701-197908
BLUE,BLUE
sub64715-12010
main64715-12010-11i197701-197908
BLACK,BLACK
sub64715-12010
main64715-12010-16i197701-197908
L.BROWN,BROWN
sub64715-12010
main64715-12020-01i197603-197701
BLACK,BLACK
sub64715-12020
main64715-12020-04i197701-197908
BLUE,BLUE
sub64715-12020
main64715-12020-06i197603-197701
BROWN,BROWN
sub64715-12020
main64715-12020-08i197603-197701
IVORY,IVORY
sub64715-12020
main64715-12020-11i197701-197908
BLACK,BLACK
sub64715-12020
main64715-12020-16i197701-197908
L.BROWN,BROWN
sub64715-12020
64910COVER ASSY, PARCEL
main64902-12010i197603-197701
sub64902-12030
main64902-12030-01i197701-197805
BLACK,BLACK
main64902-12030-04i197701-197805
BLUE,BLUE
main64902-12030-06i197701-197805
L.BROWN,BROWN
main64902-12040-01i197805-197908
BLACK,BLACK
main64902-12040-04i197805-197908
BLUE,BLUE
main64902-12040-06i197805-197908
L.BROWN,BROWN
64910BHANGER, PARCEL COVER
main64903-12010i197603-197805
FOR RH.
main64904-12010i197603-197805
FOR LH.
64910CPROTECTOR, PARCEL COVER HANGER
main64934-12010i197603-197805
64941ARM SUB-ASSY, TONNEAU COVER LIFT, RH
main64905-12010i197805-197908
64942ARM SUB-ASSY, TONNEAU COVER LIFT, LH
main64906-12010i197805-197908
9015940014
main90159-40014
9015940122
main90159-40122
9018303002
main90183-03002
9165140616
main91651-40616
9354024520
main93540-24520
9354054520
main93540-54520

20 parts on this diagram · 4 diagrams in section
