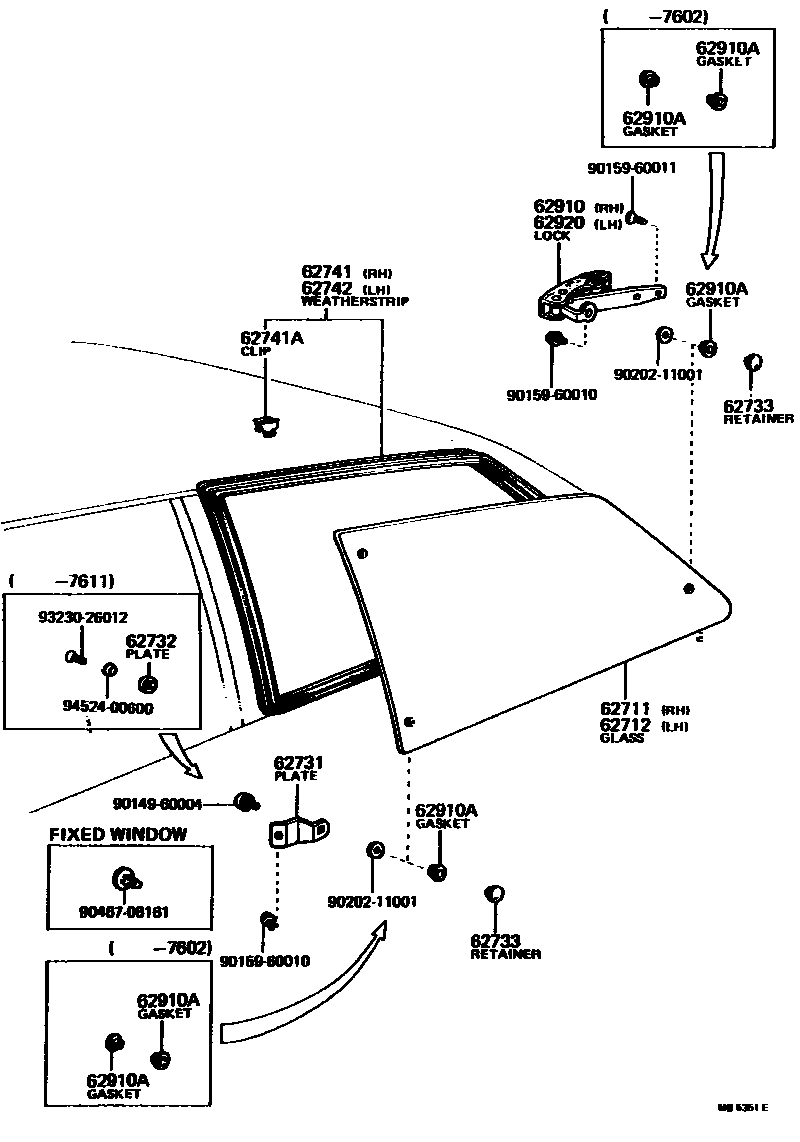

QUARTER WINDOW

0001 1 0002 1 0003 1

62711GLASS, QUARTER WINDOW, RH

main62711-12130iKE30,TE31..2D..STD197408-197410

TP.T=4.0

sub62711-12131

main62711-12131iTE31..MTM..2D..SPL..USA197410-197908

TP.T=4.0

sub62711-12141

main62711-12140iTE31..2D..USA197408-197410

TN.TP.T=4.0

sub62711-12141

main62711-12141iTE31..2D..DLX197410-197908

TN.TP.T=4.0

main62711-12161iTE51..CP197603-197908

TN.TP.T=4.0

main62711-12210iKE50,TE51..LB197603-197908

TN.TP.T=4.0

main62711-12220iKE30,TE31..2D..SPL197608-197908

TP.T=4.0, FIXED WINDOW

main62711-13040iTE38..2D197408-197410

TP.T=4.0

sub62711-13041

main62711-13041iTE38..2D197410-197608

TP.T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-12130iKE30,TE31..2D..STD197408-197410

TP.T=4.0

sub62712-12131

main62712-12131iKE30..2D197410-197908

TP.T=4.0

sub62712-12141

main62712-12140iTE31..2D..USA197408-197410

TN.TP.T=4.0

sub62712-12141

main62712-12141iTE31..2D..DLX197410-197908

TN.TP.T=4.0

main62712-12161iTE51..CP197603-197908

TN.TP.T=4.0

main62712-12210iKE50,TE51..LB197603-197908

TN.TP.T=4.0

main62712-12220iKE30,TE31..2D..SPL197608-197908

TP.T=4.0, FIXED WINDOW

main62712-13040iTE38..2D197408-197410

TP.T=4.0

sub62712-13041

main62712-13041iTE38..2D197410-197608

TP.T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-12040iKE30,TE31..2D197408-197410

sub62731-12060

main62731-12052iKE50,TE51197603-197908

main62731-12060iKE30,TE31..2D197410-197601

main62731-12061iKE30,TE31..2D197601-197701

main62731-12062iKE30,TE31..2D197701-197908

main62731-13020iTE38..2D197408-197410

sub62731-13021

main62731-13021iTE38..2D197410-197601

main62731-13022iTE38..2D197601-197608

62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH

main62732-12010iKE30,TE31,38..2D197408-197410

main62739-12010iKE30,TE31,38..2D197410-197601

main62739-12011iKE30,TE31,38,51..2D197601-197611

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-12010iKE30,TE31,38..2D197408-197410

main62735-12010iKE30,50,TE31,38,51..2D197410-197908

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12050iKE30,TE31..2D197408-197908

main62741-12060iTE51..CP197603-197908

main62741-12070iKE50,TE51..LB197603-197908

main62741-12080iKE30,TE31..2D..SPL197608-197908

FIXED WINDOW

main62741-13030iTE38..2D197408-197608

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62759-12010iKE30,50,TE31,38,51..2D197408-197908

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-12050iKE30,TE31..2D197408-197908

main62742-12060iTE51..CP197603-197908

main62742-12070iKE50,TE51..LB197603-197908

main62742-12080iKE30,TE31..2D..SPL197608-197908

FIXED WINDOW

main62742-13030iTE38..2D197408-197608

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-12040iKE30,TE31..2D197408-197410

sub62910-12041

main62910-12041iKE30,TE31..2D197410-197601

main62910-12042iKE30,TE31..2D197601-197908

main62910-12052iKE50,TE51197603-197908

main62910-13030iTE38..2D197408-197410

sub62910-13031

main62910-13031iTE38..2D197410-197601

main62910-13032iTE38..2D197601-197608

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iKE30,TE31,38..2D197408-197410

main62737-12010iKE30,TE31,38..2D197410-197602

sub90385-11001

sub90202-11001

main90385-11001iKE30,50,TE31,38,51..2D197602-197908

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-12052iKE50,TE51197603-197908

main62920-12010iKE30,TE31..2D197408-197410

sub62920-12011

main62920-12011iKE30,TE31..2D197410-197601

main62920-12012iKE30,TE31..2D197601-197908

main62920-13030iTE38..2D197408-197410

sub62920-13031

main62920-13031iTE38..2D197410-197601

main62920-13032iTE38..2D197601-197608

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9020211001

main90202-11001

9046706161

main90467-06161

9323026012

main93230-26012

9452400600

main94524-00600

18 parts on this diagram · 3 diagrams in section
