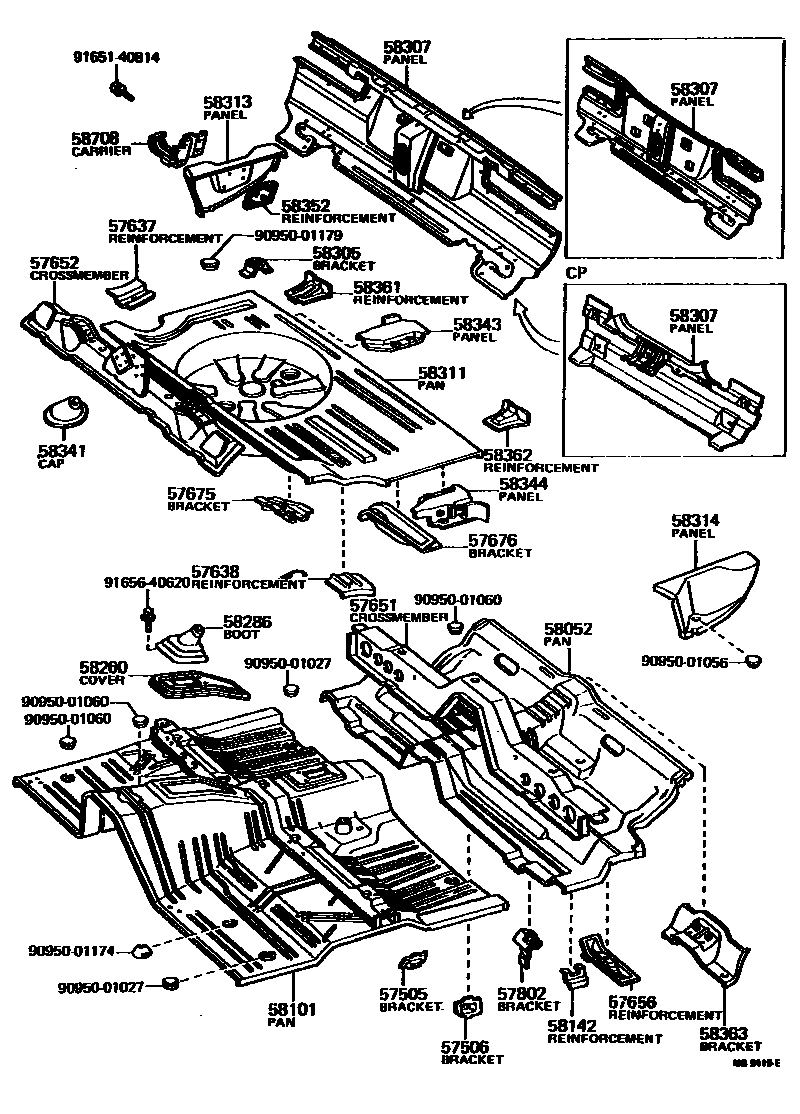

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main58207-12030iKE3#,50,TE31,37,51197408-197908

57506BRACKET SUB-ASSY, PARKING BRAKE, NO.2

main58208-12030iKE3#,50,TE31,37,51197408-197908

57637REINFORCEMENT, REAR FLOOR SIDE MEMBER TO WHEEL HOUSE, RH

main57637-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

57638REINFORCEMENT, REAR FLOOR SIDE MEMBER TO WHEEL HOUSE, LH

main57638-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

57651CROSSMEMBER, REAR FLOOR, FRONT

main57407-13020iTE38197408-197603

main57407-13030iTE38¥6,200197603-197603

sub57407-13031

main57407-13031iTE38197603-197908

main57461-12030iKE3#,50,TE31,37,51197408-197908

57652CROSSMEMBER, REAR FLOOR, NO.2

main57606-12030iKE3#,TE31,37,51..CP,HT,SED197408-197908

main57606-12040iKE50,TE51..LB197603-197908

main57606-13010iTE38¥6,100197409-197908

sub57606-15020

main57606-13020iTE38197408-197409

57656REINFORCEMENT, EXHAUST PIPE HANGER SUPPORT

main57658-12020iKE3#,50,TE31,37,51197408-197908

57675BRACKET, MUFFLER HANGER SUPPORT, NO.1

main57656-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

57676BRACKET, MUFFLER HANGER SUPPORT, NO.2

main57657-12020iKE3#,TE31,37,51..CP,HT,SED197408-197908

57802BRACKET SUB-ASSY, BRAKE TUBE, NO.1

main58326-12010iKE3#,50,TE31,37,51197408-197908

58052PAN SUB-ASSY, CENTER FLOOR

main58201-13040iTE38197408-197608

sub58211-13030

sub58205-13010

sub58233-13010

sub58247-13010

sub58248-13010

sub58253-13010

sub58254-13010

sub58326-13010

sub90463-08475¥760

main58201-13050iTE38197608-197908

main58211-12050iKE3#,TE31,37,51¥20,000197408-197608

sub58211-12051

main58211-12051iKE3#,TE31,37,51197608-197701

sub58211-12052

main58211-12052iKE3#,50,TE31,37,51197701-197908

58101PAN SUB-ASSY, FRONT FLOOR

main58101-12906iKE3#,TE3#¥41,200197408-197511

sub58101-12915¥41,200

main58101-12915iKE3#,TE3#,51¥41,200197511-197608

sub58101-12919

sub58185-12010¥310

sub94611-10601¥70

main58101-12919iKE3#,50,TE3#,51197608-197908

sub58111-12072

sub57207-12020

sub57208-12030

sub57408-12011

sub58103-12030

sub58104-12050

sub58131-12020¥230

sub58141-12030

sub58171-12030

sub58185-12010¥310

sub58264-12010

sub90461-07004¥550

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58143-12030iKE3#,50,TE31,37,51197408-197908

58260COVER ASSY, TRANSMISSION, FRONT

main58121-12030iKE3#,50197408-197908

main58121-12040iTE3#,51..A40197408-197908

main58121-12050iTE3#,51..MTM197408-197908

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12010iKE3#¥2,650197408-197908

main58280-12030iKE50¥2,640197701-197908

main58280-12040iTE3#..MTM..(DLX,SPL,STD)¥2,650197408-197908

main58280-12060iTE37..SR5197408-197908

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iKE3#,50,TE31,37,51¥350197408-197908

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12160iKE35,TE37¥11,900197408-197602

sub58307-12161¥14,700

sub90950-01065¥280

main58307-12161iKE35,TE37¥14,700197602-197908

main58307-12170iKE30,TE31¥11,900197408-197602

sub58307-12171¥14,700

sub90950-01065¥280

main58307-12171iKE30,TE31¥14,700197602-197908

main58307-12180iKE50,TE51..LB¥18,900197603-197908

main58307-12190iTE51..CP197603-197908

main58307-13060iTE38¥13,200197408-197711

sub58307-13H01

main58307-13061iTE38197711-197908

58311PAN, REAR FLOOR

main58311-12040iKE3#,TE31,37,51..CP,HT,SED197408-197908

main58311-12050iKE50,TE51..LB197603-197908

main58311-13060iTE38¥32,500197408-197908

58313PANEL, REAR FLOOR SIDE, RH

main58305-12020iKE50,TE51..LB197701-197808

main58305-12030iKE50,TE51..LB197808-197908

main58313-12030iKE3#,TE31,37197408-197808

sub58313-12100

main58313-12040iTE51..CP197603-197808

main58313-12050iTE51..LB197603-197701

main58313-12100iKE30,TE31,37197808-197908

main58313-12110iTE51..CP197808-197908

main58313-13040iTE38197408-197808

main58313-13040iTE38197608-197708

CANADA SPEC.

main58313-13050iTE38197608-197708

USA SPEC.

main58313-13050iTE38..USA197708-197908

58314PANEL, REAR FLOOR SIDE, LH

main58306-12010iKE50,TE51..LB197701-197808

sub58306-12020

main58306-12020iKE50,TE51..LB197808-197908

main58314-12030iKE3#,TE31,37197408-197808

sub58314-12100

main58314-12040iTE51..CP197603-197808

main58314-12050iTE51..LB197603-197701

main58314-12100iKE30,TE31,37197808-197908

main58314-12110iTE51..CP197808-197908

main58314-13040iTE38197408-197908

58341CAP, REAR SHOCK ABSORBER

main58341-12010iKE3#,50,TE31,37,51197408-197908

RH.

main58341-13010iTE38¥1,480197408-197908

RH.

main58342-12010iKE3#,50,TE31,37,51197408-197908

LH.

main58342-13010iTE38¥1,480197408-197908

LH.

58343PANEL, REAR FLOOR SIDE, REAR RH

main57635-12020iKE50,TE51..LB197603-197908

main57801-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

58344PANEL, REAR FLOOR SIDE, REAR LH

main57636-12020iKE50,TE51..LB197603-197908

main57802-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

58352REINFORCEMENT, JACK CLAMP

main58352-12020iKE3#,TE31,37,51..CP,HT,SED197408-197908

main58352-12030iKE50,TE51..LB197603-197908

58361REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH

main58361-12010iKE3#,TE31,37197408-197908

main58361-12020iTE51..CP197603-197908

58362REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH

main58362-12010iKE3#,TE31,37197408-197908

main58362-12020iTE51..CP197603-197908

58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER

main58205-12030iKE3#,50,TE31,37,51197408-197908

58708CARRIER SUB-ASSY, JACK

main58709-13010iTE38197408-197808

main58791-12030iKE3#,TE31,37,51..CP,HT,SED197408-197908

main58791-12040iKE50,TE51..LB197603-197908

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001174

main90950-01174¥180

9095001179

main90950-01179¥740

9165140814

main91651-40814¥180

9165640620

main91656-40620¥120

35 parts on this diagram · 3 diagrams in section
