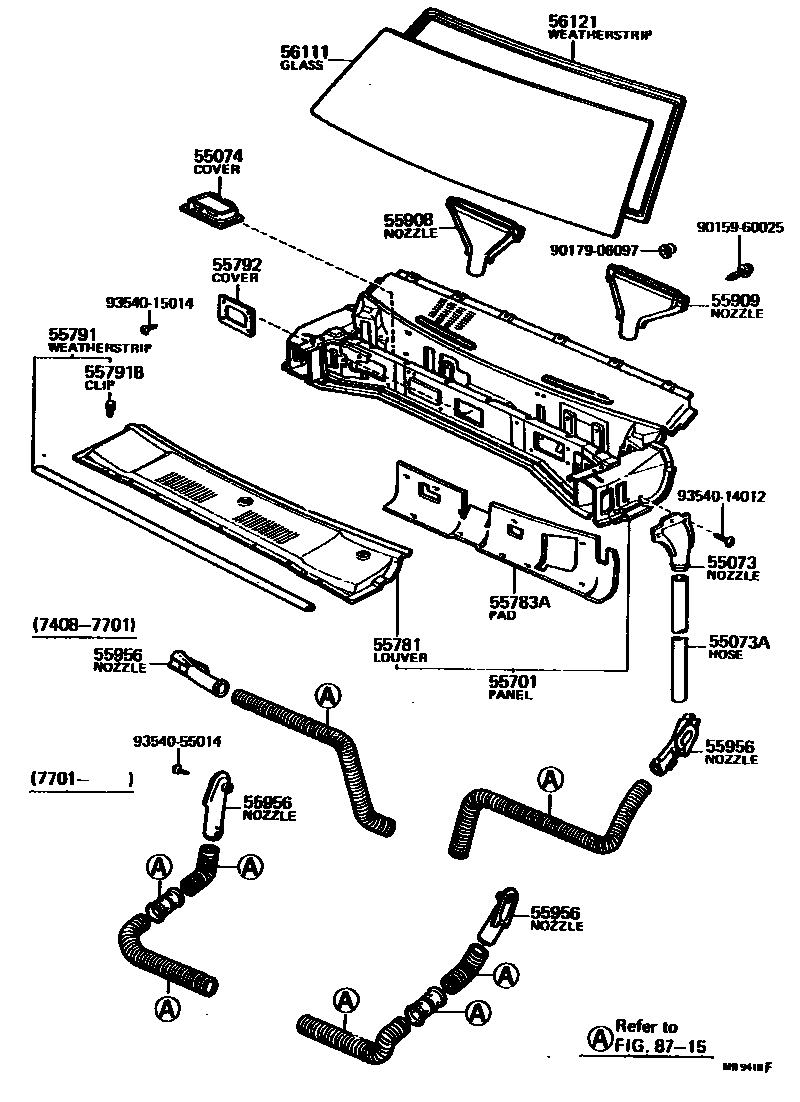

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010iKE3#,TE3#197408-197501

55073AHOSE(FOR EXTRACT NOZZLE)

main90445-33004iKE3#,TE3#197408-197501

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55077-12020iTE31..DLX;TE31..A40..SPL;KE30,TE37,38,51..DLX,SPL,SR5197408-197908

L/HEATER

55701PANEL SUB-ASSY, COWL

main55700-12031iKE50,TE51197603-197808

sub55700-12070

main55700-12040iKE3#,TE3#197408-197808

sub55700-12060

main55700-12060iKE30,TE3#197808-197908

main55700-12070iKE50,TE51197808-197902

sub55701-12120

sub55703-12061

main55701-12120iKE50,TE51197902-197908

OUTER

main55703-12061iKE50,TE51197902-197908

INNER

55781LOUVER, COWL VENTILATOR

main55711-12060iKE50,TE51197603-197908

main55711-12070iKE3#,TE3#197408-197908

55783APAD, COWL TOP SILENCER

main55783-12020iKE3#197704-197908

main55783-12030iTE3#197704-197908

main55783-12050iKE50197704-197908

main55783-12060iTE51197704-197908

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-12010iKE3#,TE3#197408-197908

main53383-12020iKE50,TE51197603-197908

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050iKE3#,TE3#,51197408-197610

sub90467-08008

main90467-08008iKE3#,50,TE3#,51197610-197908

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-12010iKE50,TE51197603-197908

FOR MOTOR SIDE

main55071-20010iKE3#,50,TE3#,51197408-197908

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-12010iKE3#,50,TE3#,51197408-197908

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-12010iKE3#,50,TE3#,51197408-197908

55956NOZZLE, SIDE DEFROSTER

main55961-12020iKE3#,TE3#197508-197701

RH.

main55961-12030iTE51197603-197701

RH.

main55961-12050iKE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD197701-197908

RH.

main55961-12070iKE50,TE51197701-197908

RH.

main55961-12070-01iKE50,TE51197805-197908

RH.BLACK,BLACK

sub55961-12070

main55961-12070-04iKE50,TE51197805-197908

RH.BLUE,BLUE

sub55961-12070

main55961-12070-06iKE50,TE51197805-197908

RH.RIGHT BROWN,BROWN

sub55961-12070

main55962-12010iKE3#,TE3#197508-197701

LH.

main55962-12020iTE51197603-197701

LH.

main55962-12040iKE30..K40..2D..USA;KE30,TE3#..DLX,SR5,STD197701-197908

LH.

main55962-12060iKE50,TE51197701-197908

LH.

main55962-12060-01iKE50,TE51197805-197908

LH.BLACK,BLACK

sub55962-12060

main55962-12060-04iKE50,TE51197805-197908

LH.BLUE,BLUE

sub55962-12060

main55962-12060-06iKE50,TE51197805-197908

LH.RIGHT BROWN,BROWN

sub55962-12060

56111GLASS, WINDSHIELD

main56111-12200iTE31,38..DLX197408-197908

TN.LM.T=5.3

main56111-12220iKE35,TE37197408-197908

TN.LM.T=5.3

main56111-12240iKE50,TE51197603-197808

TN.LM.T=5.7

sub56111-12380

main56111-12330iKE30,TE31..SPL,STD197408-197908

LM.T=5.3

sub56111-12200

main56111-12380iKE50,TE51197808-197908

TN.LM.T=5.3

56121WEATHERSTRIP, WINDSHIELD

main56121-12140iKE35,TE37197408-197908

main56121-12160iKE30,TE31..SPL,STD197506-197908

L/MOULDING

main56121-12170iKE30,TE31197408-197908

W/MOULDING

main56121-12180iKE50,TE51197603-197908

main56121-13020iTE31,38..(2DS,2DW,4DW)..(DLX,STD)197408-197701

HANGING CLOTH LINING

main56121-13020iTE38197701-197908

8715

9015960025

main90159-60025

9017906097

main90179-06097

9354014012

main93540-14012

9354015014

main93540-15014

9354055014

main93540-55014

20 parts on this diagram · 3 diagrams in section
