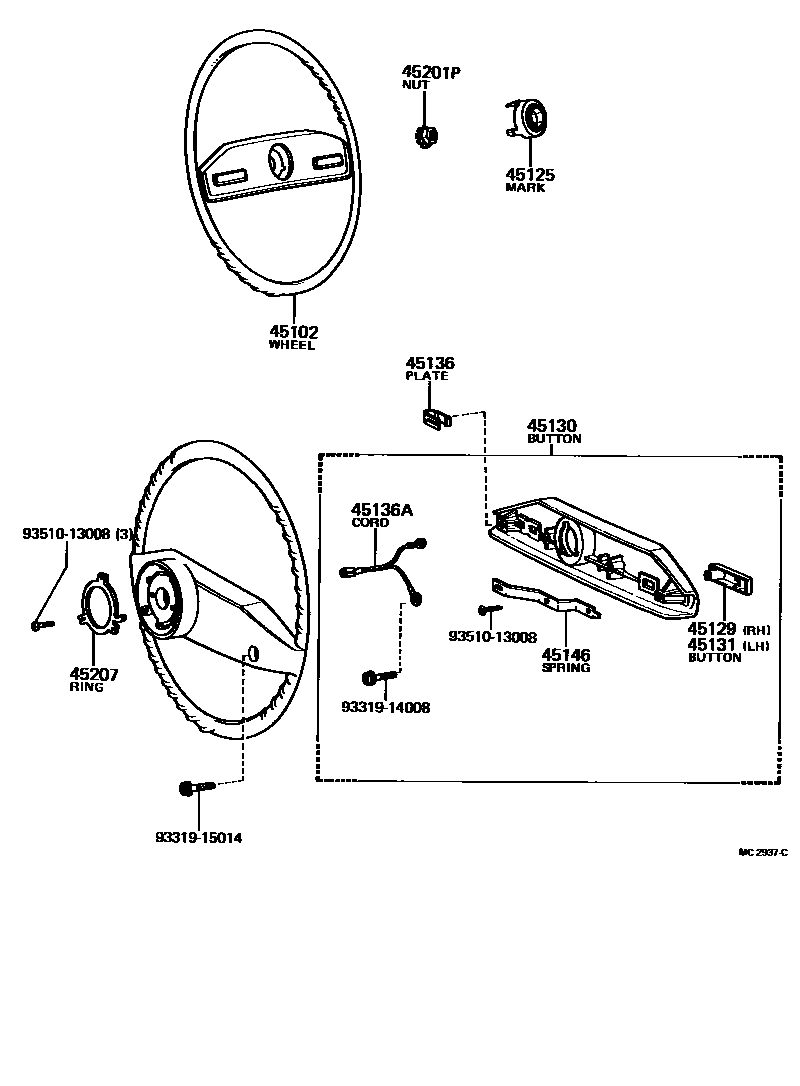

STEERING WHEEL

0001 1 0003 1 0005 1 0006 1 0007 1

45102WHEEL SUB-ASSY, STEERING

main45100-12130iKE30,TE31..STD197408-197508

2-SPOKE

main45100-12131iKE3#,TE3#..DLX,SPL,STD197508-197701

2-SPOKE

sub45100-12132

sub45125-12150

sub45125-12160

main45100-12132-01iTE37..DLX197701-197908

BLACK,2-SPOKE,BLACK

sub45100-12121

sub45100-12240

main45100-12132-04iKE30,TE31..SPL197808-197809

BLUE,2-SPOKE,BLUE

sub45100-12121

sub45100-12240

main45100-12132-06iTE37..DLX197701-197809

BROWN,2-SPOKE,BROWN

sub45100-12121

sub45100-12240

main45100-12150iTE31,38..DLX197408-197508

BLACK,3-SPOKE

sub45100-12140

sub45100-12151

main45100-12151-01iTE31,38..DLX197508-197908

BLACK,3-SPOKE,BLACK

sub45100-12151

main45100-12151-04iTE31,38..DLX197701-197908

BLUE,3-SPOKE,BLUE

sub45100-12151

main45100-12151-06iTE31,38..DLX197701-197908

BROWN,3-SPOKE,BROWN

sub45100-12151

main45100-12160iKE35,TE37..DLX197408-197508

WOODEN GRAIN 3-SPOKE

sub45100-12161

main45100-12161iKE35,50,TE37,51..DLX197701-197808

WOODEN GRAIN,3-SPOKE

main45100-12161-01iKE50,TE51..DLX197808-197908

WOODEN GRAIN,BLACK,3-SPOKE,BLACK

sub45100-12161

main45100-12161-04iKE50,TE51..DLX197808-197908

WOODEN GRAIN,BLUE,3-SPOKE,BLUE

sub45100-12161

main45100-12161-06iKE50,TE51..DLX197808-197908

WOODEN GRAIN,BROWN,3-SPOKE,BROWN

sub45100-12161

main45100-12180-01iTE37,51..SR5197408-197908

BLACK,URETHANE,4-SPOKE,BLACK

sub45100-12180

main45100-12180-04iTE37,51..SR5197701-197908

BLUE,URETHANE,4-SPOKE,BLUE

sub45100-12180

main45100-12180-06iTE37,51..SR5197701-197908

BROWN,URETHANE,4-SPOKE,BROWN

sub45100-12180

main45100-12200iKE35,TE37..DLX197508-197511

WOODEN GRAIN 3-SPOKE

sub45100-12201

main45100-12201iKE35,TE37,51..DLX197511-197701

WOODEN GRAIN 3-SPOKE

sub45100-12161

main45100-12240-04iKE30,TE31..SPL197809-197908

BLUE,2-SPOKE,BLUE

sub45100-12121

main45100-12240-06iKE30,TE31..SPL197809-197908

BROWN,2-SPOKE,BROWN

sub45100-12121

45125MARK, STEERING WHEEL PAD

main45125-12070iKE35,50,TE3#,51..DLX197701-197908

FOR 3-SPOKE

main45125-12070iKE30,TE31,38197408-197701

main45125-12090iKE35,TE37..DLX197408-197501

main45125-12130iTE37,51..SR5197408-197908

FOR 4-SPOKE

main45125-12150iTE37..DLX197701-197908

FOR 2-SPOKE

45129BUTTON, HORN, NO.2

main45131-12060iKE30,TE31..STD197408-197508

FOR 2-SPOKE

main45131-12070iTE31,38..DLX197408-197508

FOR 3-SPOKE

main45131-12080iKE35,50,TE37,51..DLX197408-197908

FOR WOODEN GRAIN,3-SPOKE

main45131-12110iKE3#,TE3#..DLX,SPL,STD197508-197701

FOR 2-SPOKE

main45131-12111iTE37..DLX197701-197908

FOR 2-SPOKE

main45131-12120iKE35,TE37,51..DLX197508-197701

FOR WOODEN GRAIN,3-SPOKE

main45131-12130iTE31,38..DLX197508-197908

FOR 3-SPOKE

main45131-14021-01iTE37,51..SR5197408-197908

FOR 4-SPOKE,BLACK

sub45131-14021

45130BUTTON ASSY, HORN

main45130-12120iKE3#,TE3#..DLX,STD197408-197508

FOR 2-SPOKE

main45130-12121iKE3#,TE3#..DLX,SPL,STD197508-197701

FOR 2-SPOKE

sub45130-12122

sub45125-12150

sub45125-12160

main45130-12122-01iKE30,TE31..SPL,STD197701-197908

BLACK,FOR 2-SPOKE,BLACK

sub45130-12111

main45130-12122-04iKE30,TE31..SPL197808-197908

BLUE,FOR 2-SPOKE,BLUE

sub45130-12111

main45130-12122-06iKE30,TE31..SPL,STD197701-197908

BROWN,FOR 2-SPOKE,BROWN

sub45130-12111

main45130-12140iTE31,38..DLX197408-197508

FOR BLACK,3-SPOKE

main45130-12141-01iTE31,38..DLX197508-197908

BLACK,FOR 3-SPOKE,BLACK

sub45130-12141

main45130-12141-04iTE31,38..DLX197701-197908

BLUE,FOR 3-SPOKE,BLUE

sub45130-12141

main45130-12141-06iTE31,38..DLX197701-197908

BROWN,FOR 3-SPOKE,BROWN

sub45130-12141

main45130-12150-01iKE35,TE37..DLX197408-197508

BLACK,FOR WOODEN GRAIN,3-SPOKE,BLACK

sub45130-12150

main45130-12150-01iKE35,50,TE37,51..DLX197701-197908

FOR WOODEN GRAIN,3-SPOKE,BLACK

sub45130-12150

main45130-12150-04iKE50,TE51..DLX197808-197908

BLUE,FOR WOODEN GRAIN,3-SPOKE,BLUE

sub45130-12150

main45130-12150-06iKE50,TE51..DLX197808-197908

BROWN,FOR WOODEN GRAIN,3-SPOKE,BROWN

sub45130-12150

main45130-12180iKE35,TE37,51..DLX197508-197701

FOR WOODEN GRAIN,3-SPOKE

sub45130-12150

45131BUTTON, HORN, NO.1

main45129-12030iKE30,TE31..SPL,STD197701-197908

FOR 2-SPOKE

main45129-14010-01iTE37,51..SR5197408-197908

FOR 4-SPOKE,BLACK

sub45129-14010

main45131-12060iKE3#,TE3#..DLX,STD197408-197508

FOR 2-SPOKE

main45131-12070iTE31,38..DLX197408-197508

FOR 3-SPOKE

main45131-12080iKE35,TE37..DLX197408-197908

FOR WOODEN GRAIN,3-SPOKE

main45131-12110iKE3#,TE3#..DLX,SPL,STD197508-197701

FOR 2-SPOKE

main45131-12120iKE35,TE37,51..DLX197508-197701

FOR WOODEN GRAIN,3-SPOKE

main45131-12130iTE31,38..DLX197508-197908

FOR 3-SPOKE

45136PLATE, HORN BUTTON CONTACT

main45136-12070iKE30,TE31,38197408-197411

main45136-12080iKE35,TE37..DLX197408-197411

45136ACORD(FOR HORN CONTACT RING)

main90945-02026iKE30,TE31..SPL,STD197408-197908

FOR 2-SPOKE

main90945-02027iKE35,50,TE3#,51..DLX197408-197908

FOR 3-SPOKE

45146SPRING, HORN BUTTON CONTACT

main45146-12020iKE30,TE31..STD197408-197701

FOR 2-SPOKE

main45146-12021iTE37..DLX197701-197908

FOR 2-SPOKE

main45146-12030iTE31,38..DLX197408-197908

FOR 3-SPOKE

main45146-12040iKE35,50,TE37,51..DLX197408-197908

FOR WOODEN GRAIN,3-SPOKE

45201PNUT, STEERING WHEEL SET

main90179-12086iKE3#,50,TE3#,51197408-197908

45207RING, HORN CONTACT

main45176-20030iKE3#,50,TE3#,51..DLX,SPL,STD197408-197908

9331914008

main93319-14008

9331915014

main93319-15014

9351013008

main93510-13008

13 parts on this diagram · 5 diagrams in section
