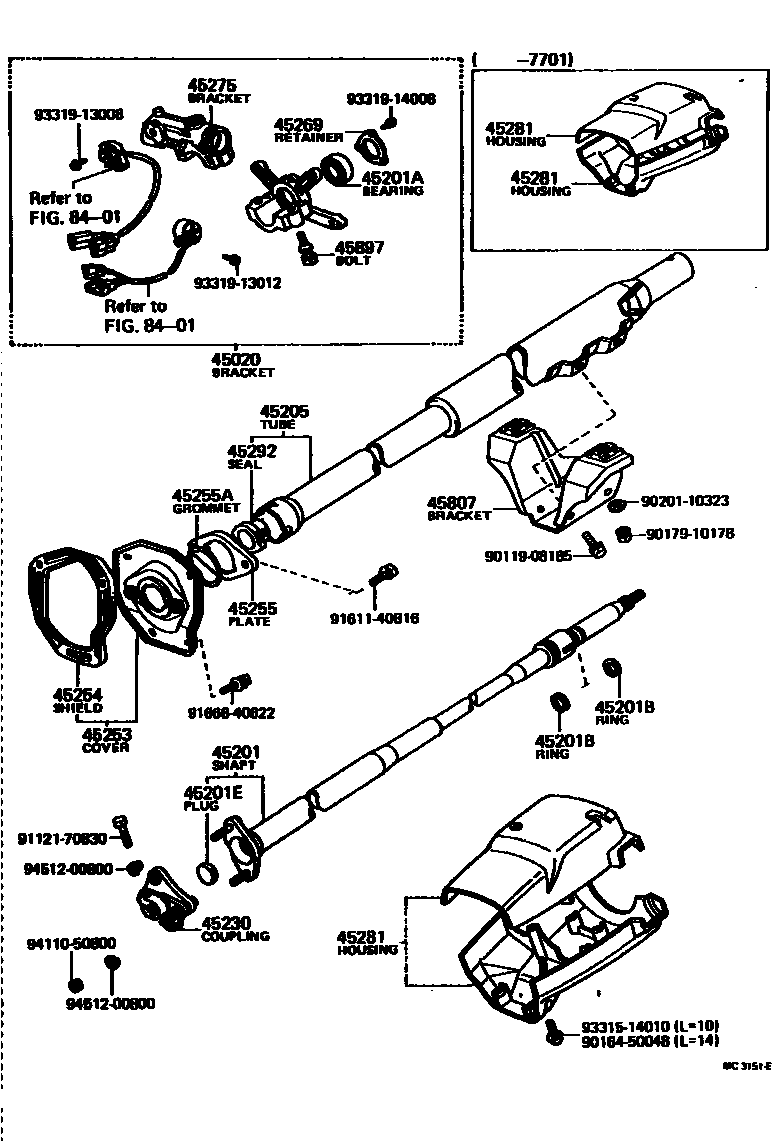

STEERING COLUMN & SHAFT
45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45255PLATE, STEERING COLUMN HOLE COVER
45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
8401
9011908185
main90119-08185
9016450048
main90164-50048
9017910178
main90179-10178
9020110323
main90201-10323
9112170830
main91121-70830
9161140816
main91611-40816
9166640622
main91666-40622
9331514010
main93315-14010
9331913008
main93319-13008
9331913012
main93319-13012
9331914008
main93319-14008
9411050800
main94110-50800
9451200800
main94512-00800
31 parts on this diagram · 4 diagrams in section
