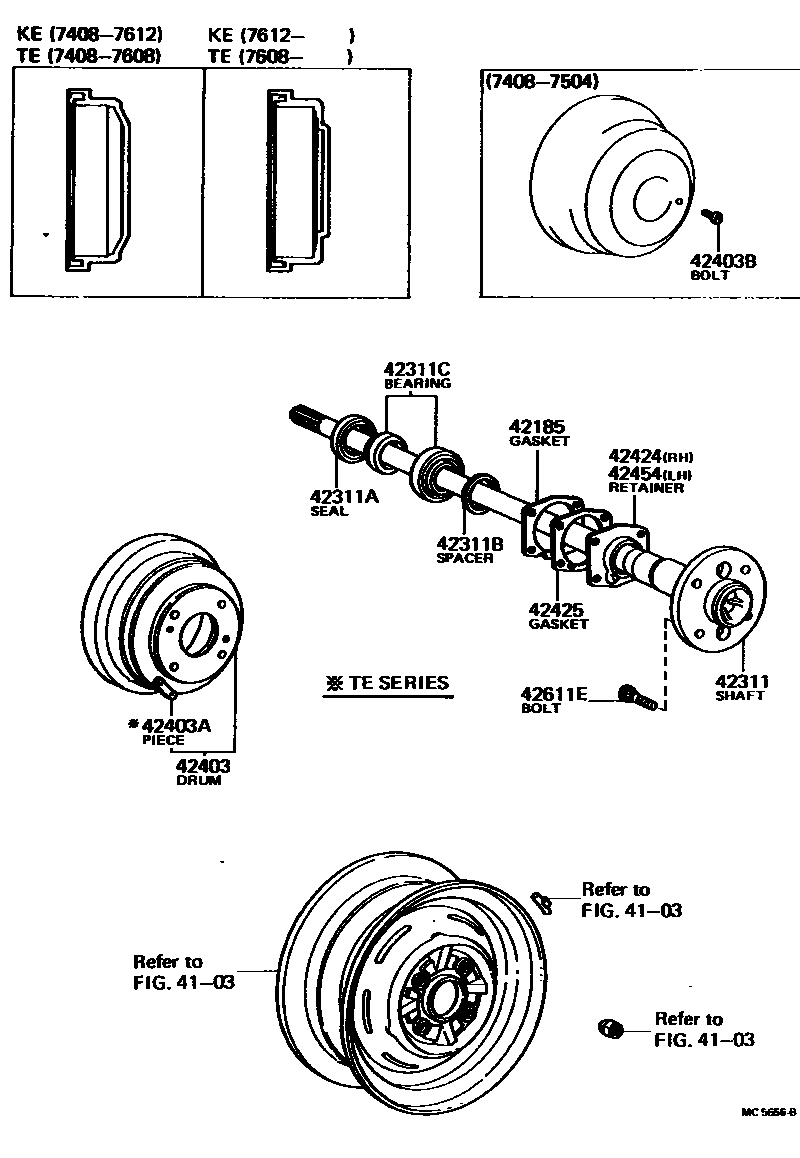

REAR AXLE SHAFT & HUB

4103

42185GASKET, REAR AXLE HOUSING END

main42185-12010iKE30,50197408-197908

T=0.3

sub42185-52030

main42185-13010iTE38197408-197908

T=0.3

main42185-13020iTE31,38,51..DLX,SPL197408-197908

T=0.6

main42185-22010iKE3#,50,TE51..DLX,SPL,STD197408-197908

T=0.6

main42185-22020iTE37,51..SR5197408-197908

T=0.3

42311SHAFT, REAR AXLE

main42311-12050iKE3#,50197408-197903

sub42311-12051

main42311-12051iKE30,50197903-197908

sub42311-12052

main42311-12120iTE31,38,51..DLX,SPL197903-197908

sub42311-12121

main42311-15010iTE37,51..SR5197809-197908

main42311-20042iTE3#,51..DLX,SPL,STD197408-197903

sub42311-12120

main42311-20060iTE37,51..SR5197408-197809

sub42311-15010

sub90369-35003

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055iKE3#,50,TE3#,51..DLX,SPL,STD197408-197908

main90311-52059iTE37,51..SR5197408-197908

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-30152iKE3#,50,TE3#,51..DLX,SPL,STD197408-197908

main90560-35153iTE37,51..SR5197408-197809

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010iKE3#,50,TE31,37,51..DLX,SPL,STD197408-197908

sub04421-12011

main04421-13010iTE38197408-197908

main04421-30010iTE37,51..SR5197408-197611

sub04421-30011

main04421-30011iTE37,51..SR5197611-197908

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12020iKE3#197408-197612

sub42431-12050

main42431-12021iKE3#,50197612-197705

main42431-12040iTE3#,51197608-197611

sub42431-22050

main42431-12050iKE3#,50197705-197908

sub42431-12110

main42431-12060iTE3#,51197705-197708

sub42431-14061

main42431-14060iTE3#,51197708-197908

sub42431-12060

main42431-20040iTE3#,51197408-197608

sub42431-22050

main42431-22050iTE3#,51197611-197705

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iTE3#,51197408-197908

10G,10G.

main90937-01118iTE3#,51197608-197908

20G,20G.

main90937-01119iTE3#,51197608-197908

30G,30G.

main90937-01120iTE3#,51197608-197806

40G,40G.

main90937-01121iTE3#,51197608-197806

50G,50G.

main90937-01122iTE3#,51197608-197806

60G,60G.

main90937-01141iTE3#,51197408-197608

20G.

main90937-01142iTE3#,51197408-197608

30G.

main90937-01143iTE3#,51197408-197608

40G.

main90937-01144iTE3#,51197408-197608

50G.

main90937-01145iTE3#,51197408-197608

10G,60G.

main90937-01195iTE3#,51197806-197908

40G,40G.

main90937-01196iTE3#,51197806-197908

50G,50G.

main90937-01197iTE3#,51197806-197908

60G,60G.

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007iTE3#197408-197504

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010iKE3#,50,TE3#,51..DLX,SPL,STD197408-197908

main42424-21010iTE37,51..SR5197408-197908

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010iTE3#..DLX,SPL,STD197408-197908

main42425-20010iKE3#,50,TE51..DLX,SPL,STD197408-197908

sub42425-52030

main42425-22020iTE37,51..SR5197408-197908

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010iKE3#,50,TE3#,51..DLX,SPL,STD197408-197908

main42454-21010iTE37,51..SR5197408-197908

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021iTE37,51..SR5197408-197703

12-1.5PX38-24

sub90942-02035

main90942-02032iKE3#,50,TE3#,51..DLX,SPL,STD197408-197703

12-1.5PX38-25.5

sub90942-02035

main90942-02035iKE3#,50,TE3#,51197703-197908

12-1.5PX36-23.5

sub90942-02047

13 parts on this diagram · 1 diagram in section
