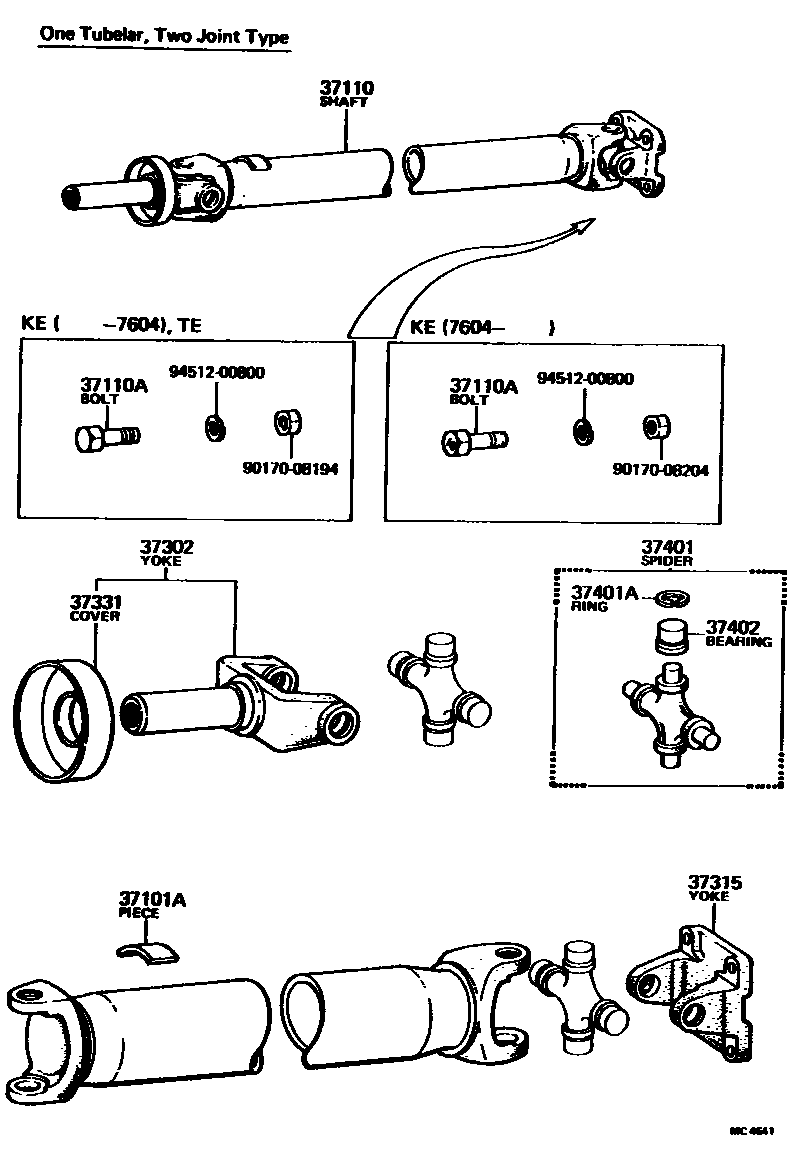

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G.
20G,L=41.4,20G.
30G,L=62.2,30G.
2G,T=2.0,2G.
4G,T=2.0,4G.
6G,L=12.4,6G.
8G,L=16.6,8G.
12G,L=24.9,12G.
14G,L=29.0,14G.
16G,L=33.2,16G.
18G,L=37.3,18G.
22G,L=45.6,22G.
24G,L=49.7,24G.
26G,L=53.9,26G.
28G,L=58.1,28G.
37110SHAFT ASSY, PROPELLER
L=1315,OD=80
L=1333,OD=75
L=1333,OD=75
L=1333,OD=65
L=1333,OD=65,FOR 2-JOINT
L=1333,OD=65
L=1333,OD=65,FOR 2-JOINT
L=1315,OD=65
L=1315,OD=75
L=727,OD=65,FOR 3-JOINT
L=709,OD=65,FOR 3-JOINT
L=727,OD=75,FOR 3-JOINT
L=709,OD=75,FOR 3-JOINT
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX22-10
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401SPIDER KIT, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.2,T=1.20
T=1.25,T=1.25
T=1.30,T=1.30
T=2.375-2.425,T=2.40
T=2.425-2.475,T=2.45
T=2.475-2.525,T=2.50
T=2.525-2.575,T=2.55
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017008194
main90170-08194
9017008204
main90170-08204
9451200800
main94512-00800
12 parts on this diagram · 2 diagrams in section
