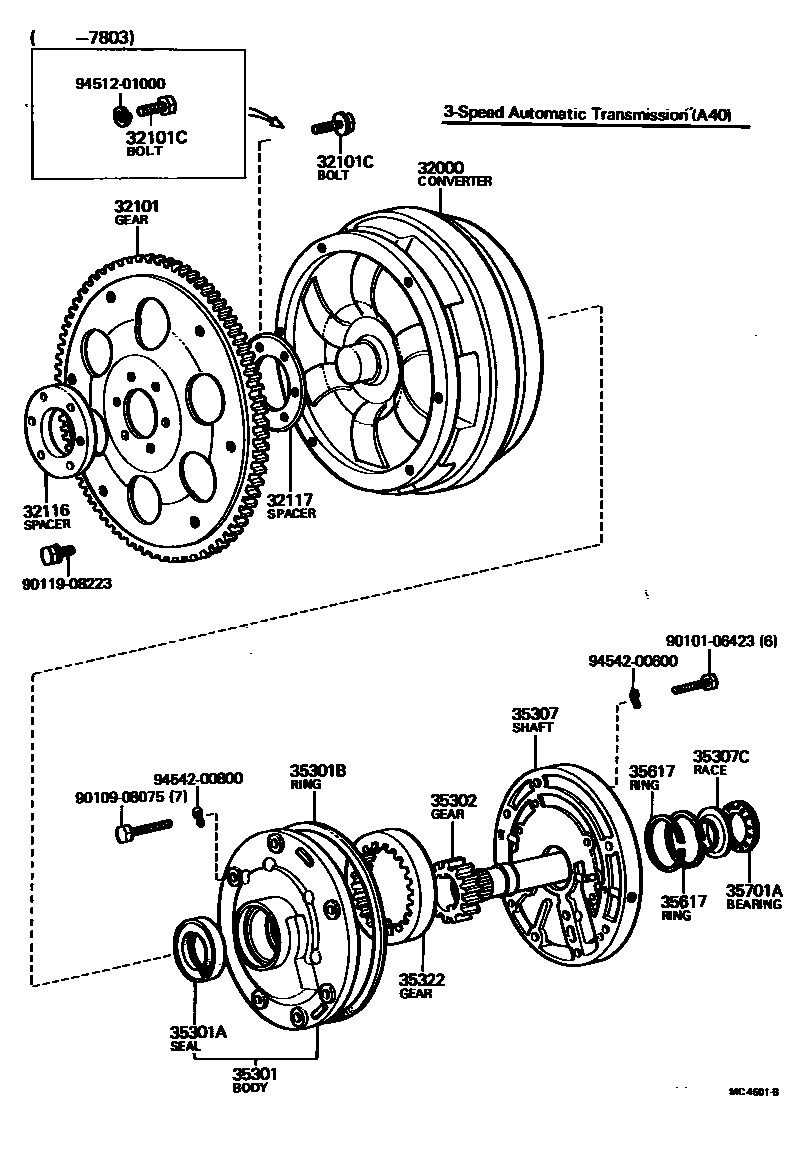

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12021iTE3#,51..A40197408-197708

sub32000-12030

main32000-12030iTE31,38,51..A40197708-197908

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iTE3#,51..A40197408-197908

sub32101-22030

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10035iTE3#,51..A40197702-197803

sub90105-10006

main90101-10435iTE3#,51..A40197408-197702

main90105-10006iTE31,38,51..A40197803-197908

*10-1.25X23-14.5

32116SPACER, DRIVE PLATE, FRONT

main32116-14010iTE3#,51..A40197408-197712

sub32116-14011

main32116-14011iTE31,38,51..A40197712-197908

32117SPACER, DRIVE PLATE, REAR

main32117-14010iTE3#,51..A40197408-197712

sub32117-14011

main32117-14011iTE31,38,51..A40197712-197908

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22011iTE3#,51..A40197408-197908

sub35301-30030

sub90101-06002

sub90101-08046

sub90301-99010

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iTE3#,51..A40197408-197908

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTE3#,51..A40197408-197908

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iTE3#,51..A40197408-197908

N=18

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35307-22011iTE3#,51..A40197408-197908

sub35370-22010

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iTE3#,51..A40197408-197908

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iTE3#,51..A40197408-197908

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-22010iTE3#,51..A40197408-197908

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iTE3#,51..A40197408-197908

9010106423

main90101-06423

9010908075

main90109-08075

9011908223

main90119-08223

9451201000

main94512-01000

9454200600

main94542-00600

9454200800

main94542-00800

20 parts on this diagram · 1 diagram in section
