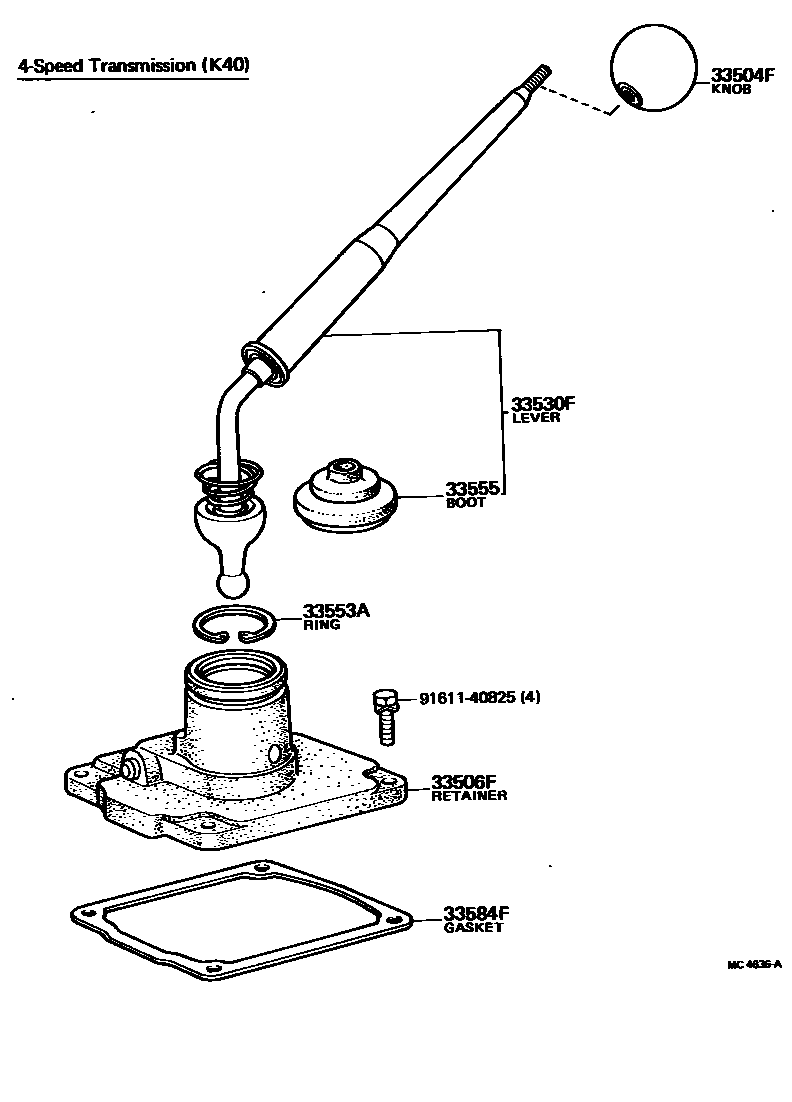

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020iKE30..K50197608-197908

BLACK

sub33504-14050

sub33504-22111

main33504-12050iKE35,TE37..4F197408-197510

WOODEN GRAIN

main33504-12070iTE37..USA197408-197510

URETHANE

main33504-12071iTE37,51..SR5197510-197908

URETHANE

main33504-12080iKE3#,TE3#..4F197510-197908

BLACK

sub33504-14040

main33504-12090iKE35,50,TE37,51..4F197510-197908

WOODEN GRAIN

main33504-12100iTE3#..T50197510-197908

BLACK

sub33504-14050

main33504-12110iTE37,51..T50..DLX197510-197908

WOODEN GRAIN

sub33504-14050

main33504-14010iTE3#..T50197410-197510

BLACK

main33504-14022iTE37..T50..DLX197408-197510

WOODEN GRAIN

main33504-22020iKE3#,TE3#..4F197408-197510

BLACK

main33542-12070iTE3#,51..A40197408-197701

main33542-12071iTE3#,51..A40197701-197908

sub33542-12090

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-10011iKE30..K50197608-197908

main33506-12040iKE3#,50..K40197408-197908

sub33506-10020

main33506-14011iTE3#,51..MTM197408-197908

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-12100iTE3#,51..A40197408-197701

main33503-12101iTE3#,51..A40197701-197908

main33530-12131iKE3#197408-197510

main33530-12132iKE3#,50..K40197510-197908

main33530-12141iTE3#..T40197408-197510

main33530-12142iTE3#,51..T40197510-197908

main33530-12151iTE3#..T50197408-197510

main33530-12152iTE3#,51..T50197510-197908

main33530-12190iKE30..K50197608-197908

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-40124iKE3#,50..K40197408-197908

main90521-49001iKE30..K50197608-197908

33555BOOT, SHIFT LEVER

main33555-10010iKE30..K50197608-197908

main33555-12030iKE3#,50..K40197408-197908

main33555-12060iTE3#,51..A40197408-197701

main33555-12061iTE3#,51..A40197701-197908

main33555-14010iTE3#,51..MTM197408-197908

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-10010iKE30..K50197608-197908

main33584-12030iKE3#,50..K40197408-197908

main33584-14010iTE3#,51..MTM197408-197908

9161140825

main91611-40825

7 parts on this diagram · 5 diagrams in section
