CLUTCH & RELEASE FORK

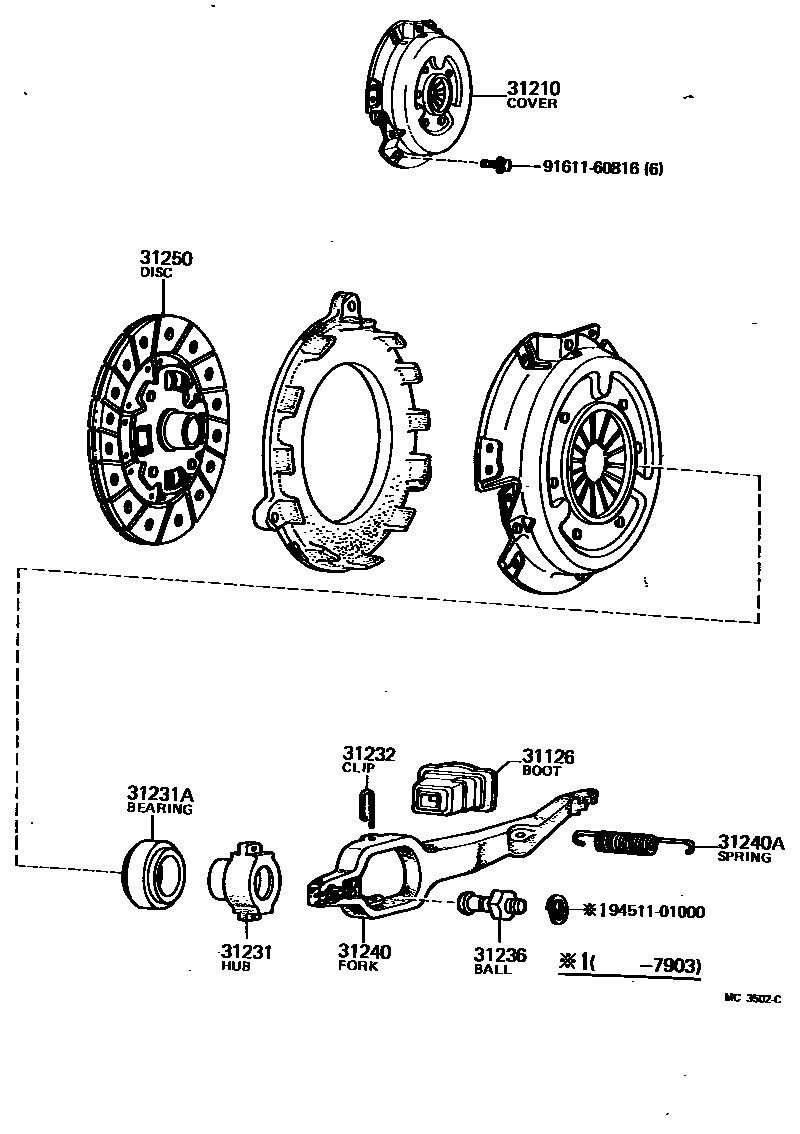

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-10030i197608-197903
sub31126-12040
main31126-12020i197408-197908
main31126-12040i197903-197908
main31126-20040i197408-197708
main31126-22040i197708-197908
31210COVER ASSY, CLUTCH
main31210-12040i197408-197708
sub31210-12041
main31210-12041i197708-197908
sub31210-12042
main31210-14012i197803-197907
sub31210-14013
main31210-14013i197907-197908
sub31210-14070
main31210-14080i197408-197803
sub31210-14012
31231HUB, CLUTCH RELEASE BEARING
main31231-12030i197408-197708
main31231-12031i197708-197908
sub31231-12032
main31231-14011i197408-197612
sub31231-14012
main31231-14012i197612-197708
main31231-14030i197708-197908
sub31231-14031
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
main90363-33002i197808-197908
sub90363-33004
main90363-33080i197408-197808
sub90363-33002
main90363-38084i197408-197708
main90363-40001i197708-197908
sub90363-40008
31232CLIP OR SPRING, RELEASE BEARING HUB
main31232-12010i197408-197908
main31232-22010i197708-197908
main31232-30010i197408-197708
31236BALL, RELEASE FORK
main31236-20020i197408-197908
sub31236-30060
main31236-30030i197408-197908
31240FORK ASSY, CLUTCH RELEASE
main31204-10040i197608-197908
main31204-12010i197408-197908
main31204-20040i197408-197708
main31204-22030i197708-197908
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
main90506-14139i197408-197908
main90506-16402i197408-197708
sub90506-16004
31250DISC ASSY, CLUTCH
main31250-12021i197408-197908
sub31250-12070
main31250-12040i197702-197708
sub31250-14090
main31250-14010i197408-197702
sub31250-12040
main31250-14090i197708-197908
sub31250-14091
9161160816
main91611-60816
9451101000
main94511-01000

11 parts on this diagram · 3 diagrams in section
