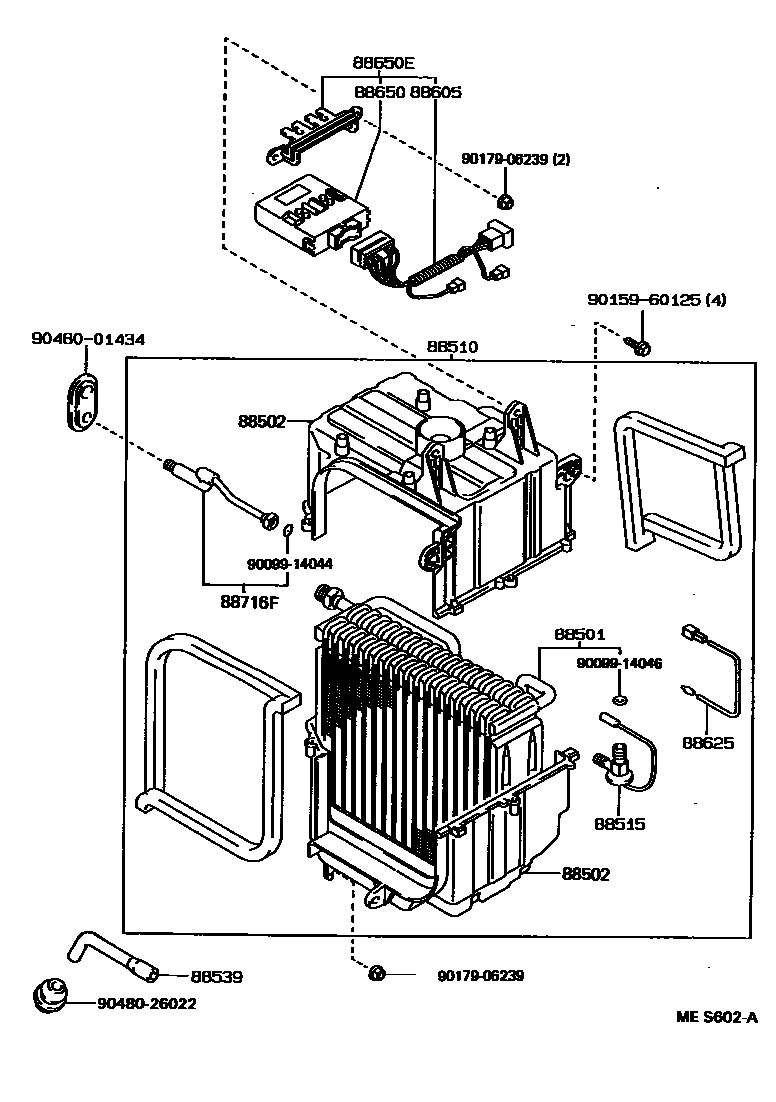

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12350iAE95199009-199308

88502CASE SUB-ASSY, COOLING UNIT

main88502-12120iAE95..CND199009-199308

UPR

main88502-12130iAE95..CND199009-199308

LWR

88510UNIT ASSY, COOLER

main88510-12770iAE95..USA199009-199208

main88510-12800iAE95..CND199009-199308

88515VALVE, COOLER EXPANSION

main88515-16040iAE95¥7,100199009-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12100iAE95199009-199308

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1E180iAE95..USA199009-199208

main88605-1E300iAE95..CND199009-199308

88625THERMISTOR, COOLER, NO.1

main88625-12230iAE95..USA199009-199208

main88625-32040iAE95..CND199009-199308

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12691iAE95199009-199308

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-12501iAE95..USA199009-199208

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12310iAE95199009-199308

9009914044

main90099-14044

9009914046

main90099-14046

9015960125

main90159-60125¥120

9017906239

main90179-06239¥140

9048001434

main90480-01434

9048026022

main90480-26022¥0

16 parts on this diagram · 1 diagram in section
