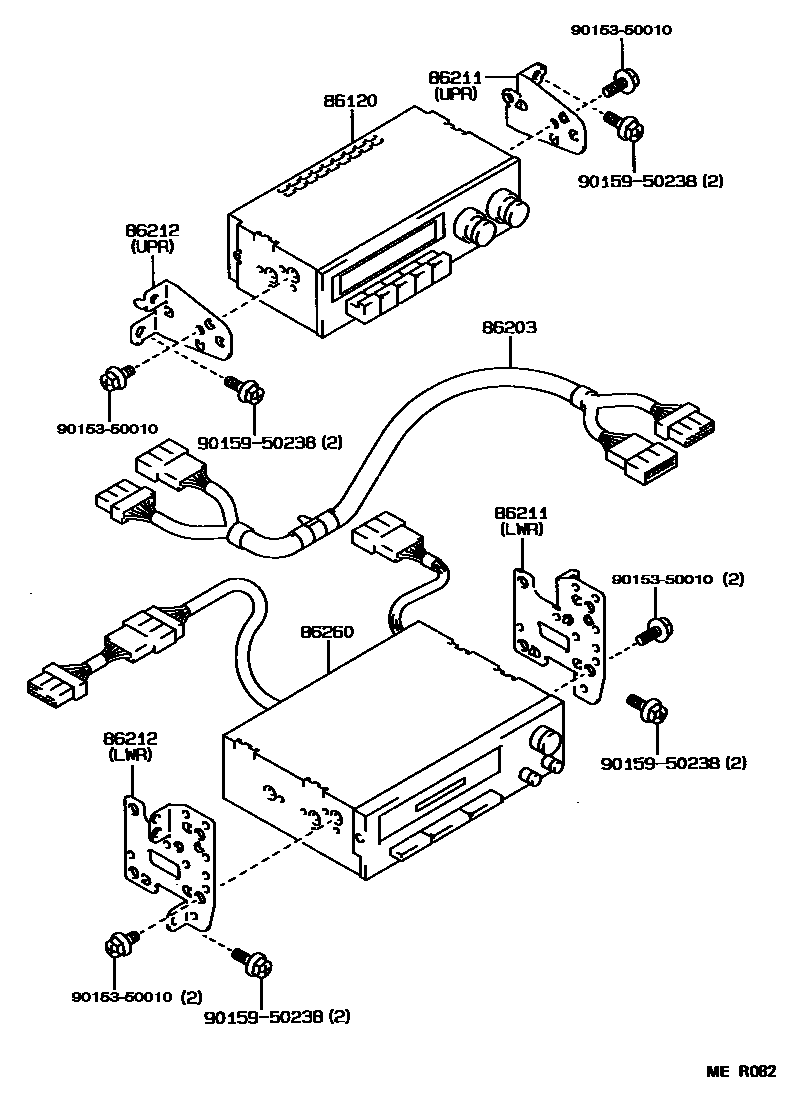

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-12730iAE95..USA199009-199108

AM/FM ETR,4-SPEAKERS

main86120-12840iAE95..DX199108-199308

FUJITSU TEN,AM/FM MPX ETR,4-SPEAKERS

main86120-12840iAE95..SR5199108-199208

FUJITSU TEN,AM/FM MPX ETR,4-SPEAKER

main86120-12850iAE95199108-199308

FUJITSU TEN,AM/FM MPX ETR,4-SPEAKERS,W(CASSETTE)

main86120-12860iAE95..DX199108-199308

MATSUSHITA,AM/FM ETR,2-SPEAKERS

main86120-16571iAE95199009-199108

AM/FM MPX ETR,4-SPEAKERS,W(CASSETTE)

main86120-28041iAE95..DX199009-199108

AM/FM MPX ETR,4-SPEAKERS

main86120-28041iAE95..DX199009-199108

AM/FM MPX ETR,4-SPEAKER

main86120-2B400iAE95..USA199108-199208

FUJITSU TEN,AM/FM ETR,4-SPEAKERS

main86120-32331iAE95..DX199009-199108

AM/FM ETR,2-SPEAKERS

86203WIRE, RADIO

main86203-12210iAE95..DX..USA199009-199208

86211BRACKET, RADIO, NO.1

main86211-12210iAE95199009-199308

UPR

main86211-12220iAE95199009-199308

LWR

86212BRACKET, RADIO, NO.2

main86212-12190iAE95199009-199308

UPR

main86212-12200iAE95199009-199308

LWR

86260TAPE PLAYER ASSY

main86260-12180iAE95..DX..USA199009-199208

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 2 diagrams in section
