CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-12030iAE95199009-199308

8401

88200BHOSE, CRUISE CONTROL VACUUM

main88283-12100iAE95199009-199308

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-12071iAE95199009-199308

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-12070iAE95199009-199308

88240COMPUTER ASSY, CRUISE CONTROL

main88240-12140iAE95199009-199308

88250APUMP ASSY, CRUISE CONTROL

main88251-12090iAE95199009-199308

88252CUSHION, VACUUM PUMP

main88252-14110iAE95199009-199308

sub88252-26010

88280CSWITCH ASSY, CLUTCH

main88280-12030iAE95..5F199009-199308

88288SWITCH, VACUUM SPEED CONTROL

main88288-12010iAE95199009-199308

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-12020iAE95199009-199308

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-12080iAE95199009-199308

NO.1

main88291-12100iAE95199009-199308

NO.2

7818612230SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12230

8827612080

main88276-12080

8827612090

main88276-12090

9017906045

main90179-06045

9017906070

main90179-06070

9046400220

main90464-00220

9165140612

main91651-40612

9165140614

main91651-40614

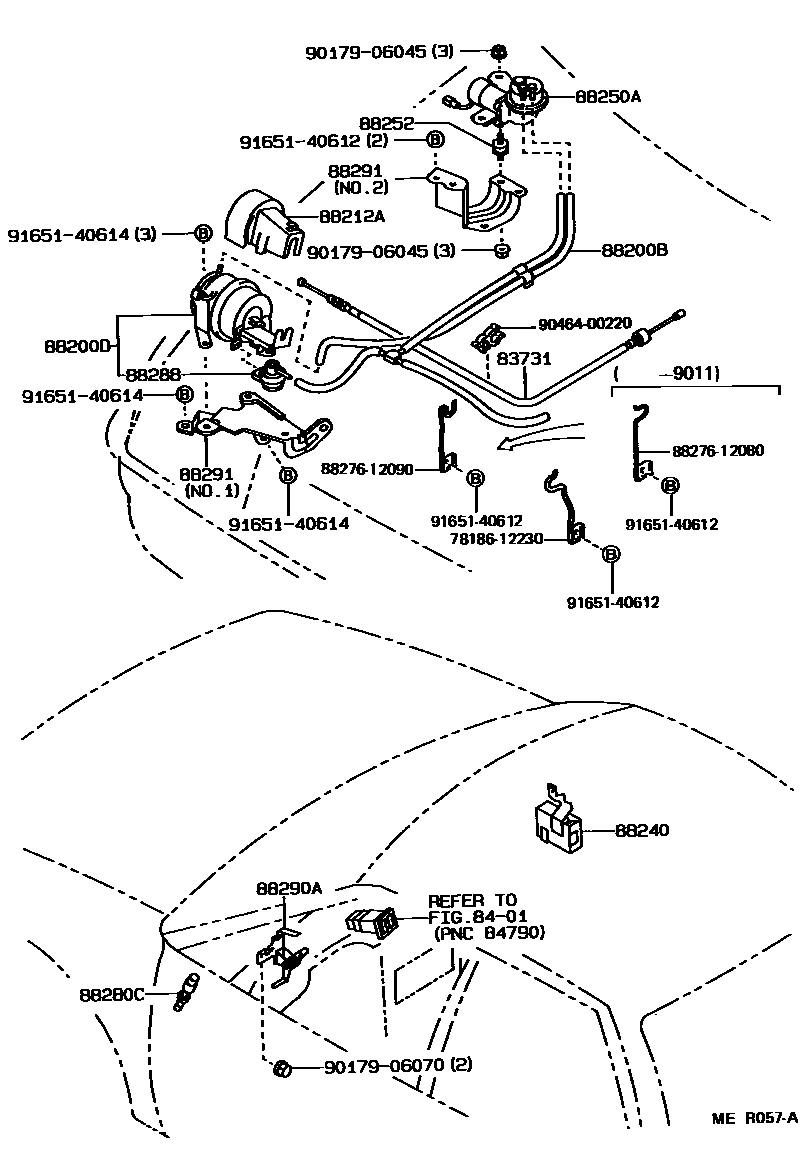

20 parts on this diagram · 1 diagram in section
