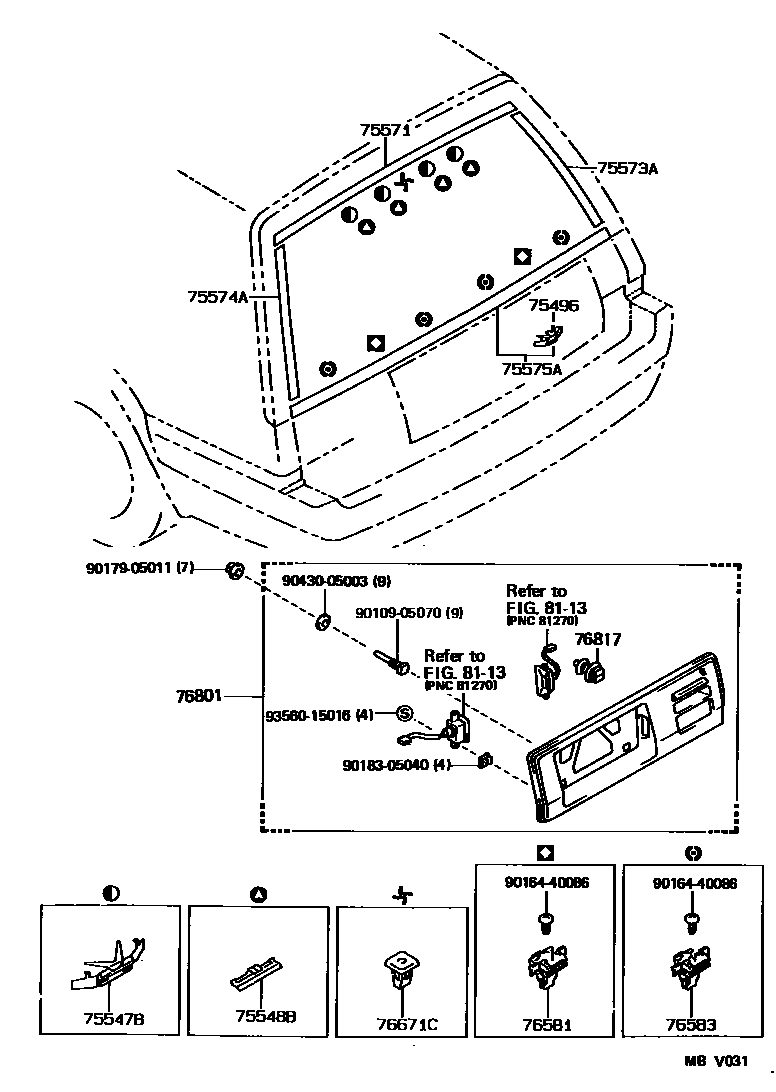

REAR MOULDING

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-12020×2iAE95199009-199308

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-12040×4iAE95199009-199308

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-16030×4iAE95199009-199308

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75507-12040iAE95199009-199308

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75573-12261iAE95199009-199308

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75574-12151iAE95199009-199308

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-12301iAE95199009-199308

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-12040×2iAE95199009-199308

76583RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH

main76583-12040×4iAE95199009-199308

76671CCLIP, BACK WINDOW MOULDING

main76671-12010iAE95199009-199308

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-13020iAE95199009-199308

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12040iAE95199009-199308

8113

9010905070

main90109-05070

9016440086

main90164-40086

9017905011

main90179-05011

9018305040

main90183-05040

9043005003

main90430-05003

9356015016

main93560-15016

19 parts on this diagram · 1 diagram in section
