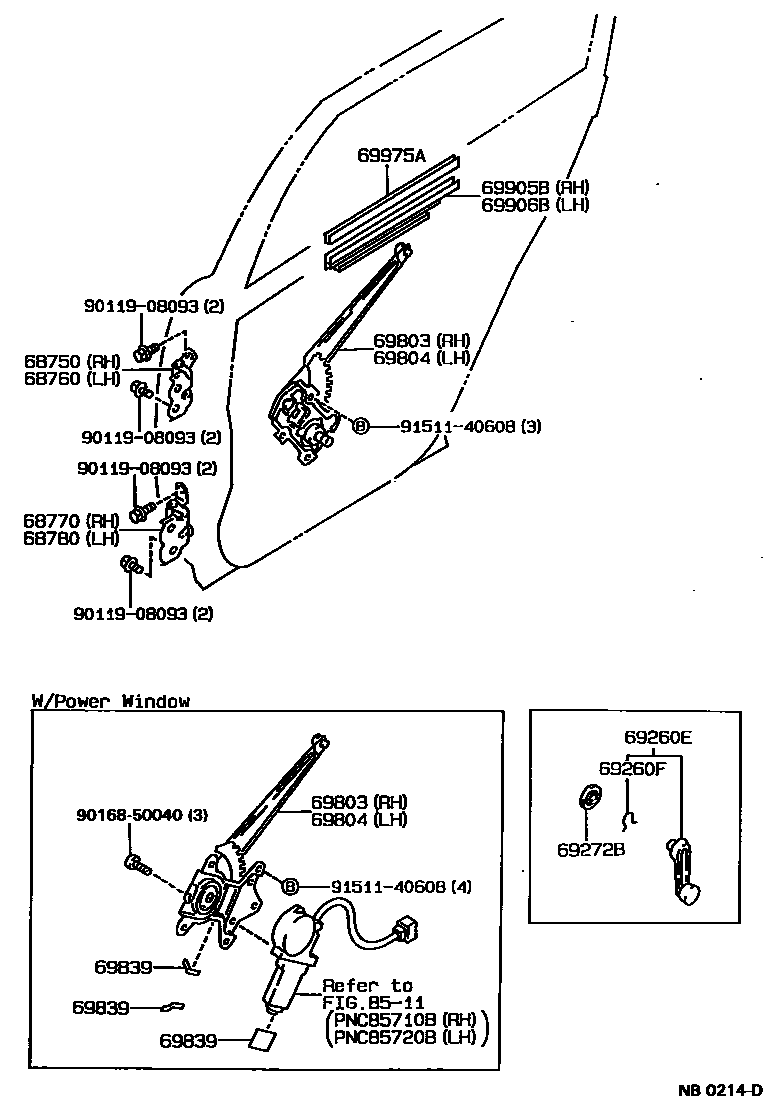

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12050iAE95199009-199308

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12050iAE95199009-199308

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-16030iAE95199009-199308

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-16030iAE95199009-199308

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-43iAE95..DX199009-199308

GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-58iAE95..DX199009-199308

DARK BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-12080-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

sub69260-12080

main69260-12080-04iAE95..SR5199009-199208

BLUE,TRIM8#

sub69260-12080

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE95..DX199009-199308

sub90520-01274

main90520-01005iAE95..SR5199009-199208

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE95..DX199009-199308

sub69268-20020

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12060iAE95..SR5199009-199208

W(POWER WINDOW)

main69830-12130iAE95199009-199308

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12060iAE95..SR5199009-199208

W(POWER WINDOW)

main69840-12130iAE95199009-199308

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010iAE95..SR5199009-199208

7 X 65

main69839-95800iAE95..SR5199009-199208

25 X 25

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110iAE95199009-199308

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100iAE95199009-199308

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010iAE95199009-199308

8511

9011908093

main90119-08093

9016850040

main90168-50040

9151140608

main91511-40608

17 parts on this diagram · 1 diagram in section
