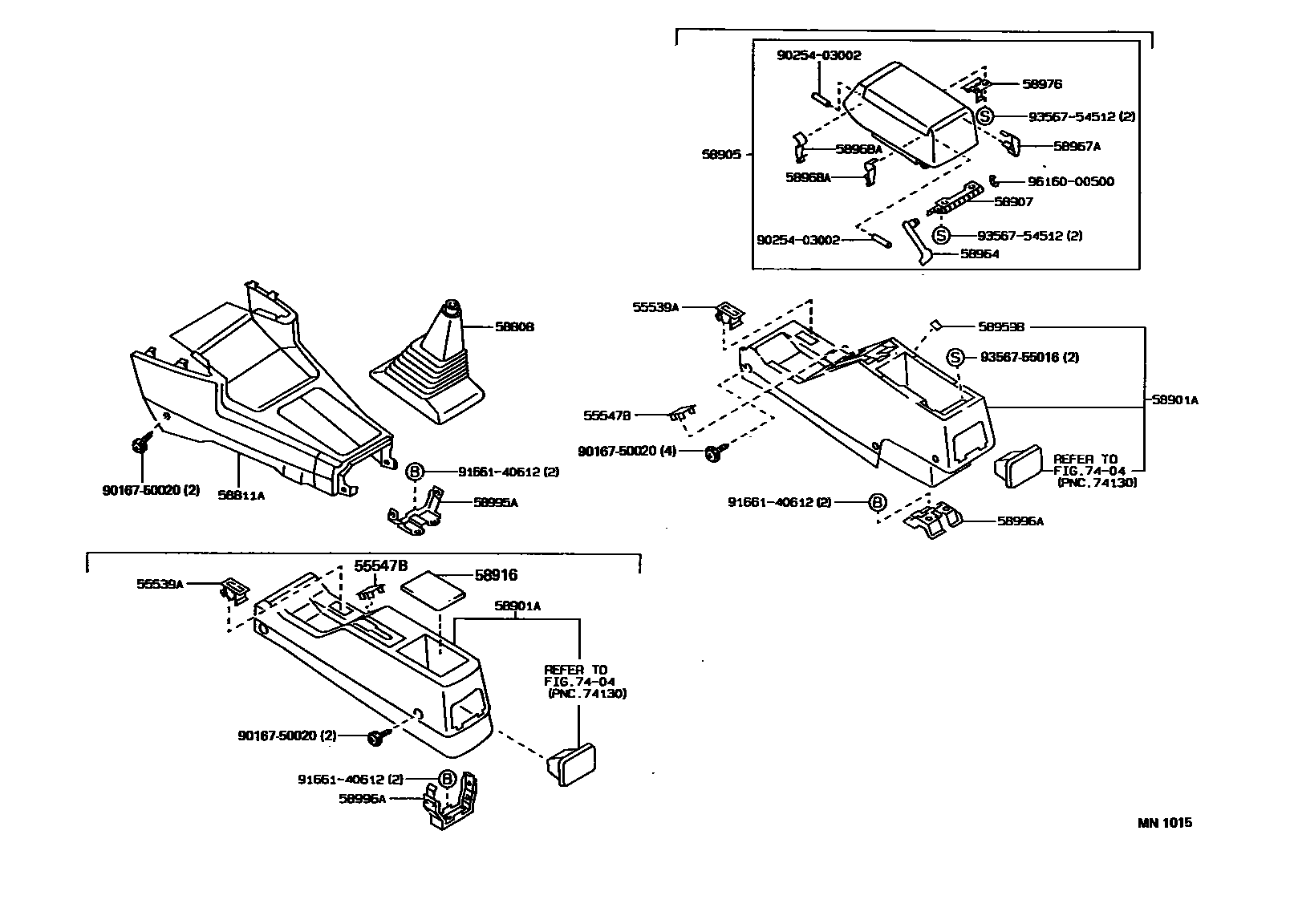

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
55547BCOVER, REMOTE CONTROL MIRROR HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
58811ABOX, CONSOLE, FRONT
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
58901ABOX SUB-ASSY, CONSOLE, REAR
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58967ASPRING, CONSOLE DOOR STOPPER
58968ABRACKET, CONSOLE DOOR STOPPER
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9016750020
main90167-50020
9025403002
main90254-03002
9166140612
main91661-40612
9356754512
main93567-54512
9356755016
main93567-55016
9616000500
main96160-00500
22 parts on this diagram · 1 diagram in section
