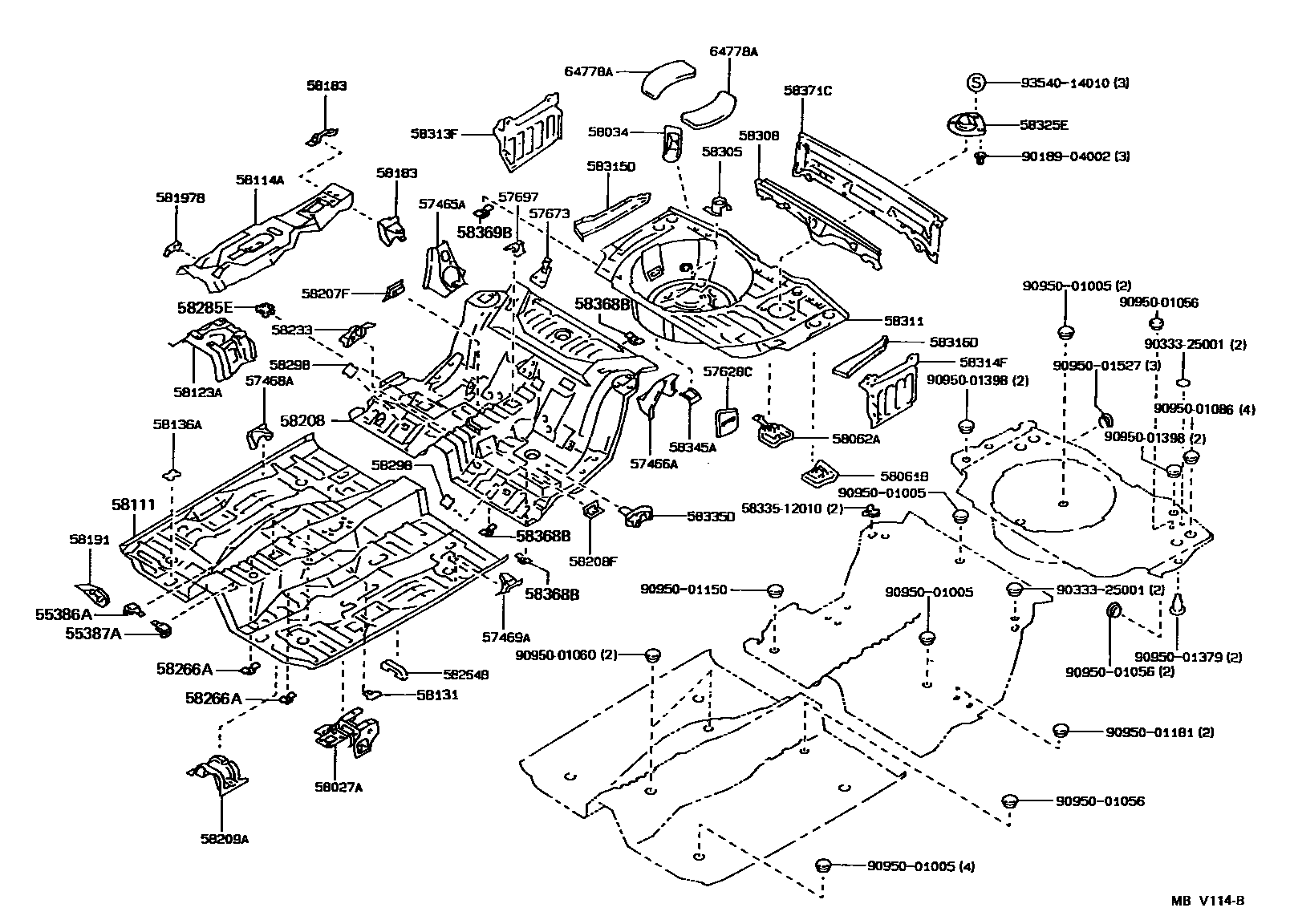

FLOOR PAN & LOWER BACK PANEL

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12050iAE95199009-199308

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12050iAE95199009-199308

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-12030iAE95199009-199308

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-12010iAE95199009-199308

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12040iAE95199009-199308

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12040iAE95199009-199308

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-12051iAE95199009-199308

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12030iAE95199009-199308

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE95199009-199308

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12040iAE95199009-199308

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-12020iAE95199009-199308

58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH

main58061-12020iAE95199009-199308

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-12030iAE95199009-199308

58111PAN, FRONT FLOOR

main58111-12211iAE95199009-199308

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12061iAE95199009-199308

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12050iAE95199009-199308

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12050iAE95199009-199308

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iAE95199009-199308

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12110iAE95199009-199308

RH

main58184-12120iAE95199009-199308

LH

58191FOOTREST, FRONT FLOOR

main58192-12040iAE95..SR5;AE95..DX..USA199009-199208

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010iAE95199009-199308

58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH

main58207-12050iAE95199009-199308

58208PAN, CENTER FLOOR

main58211-12241iAE95199009-199308

58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH

main58208-12050iAE95199009-199308

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-12030iAE95199009-199308

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12020iAE95199009-199308

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12050iAE95..CND199009-199308

sub58264-12060

main58264-12060iAE95..USA199009-199208

58266ABRACKET, FUEL TUBE CLAMP

main58266-22040iAE95199009-199308

58285ECOVER, CENTER FLOOR HOLE

main58285-12030iAE95199009-199308

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12020iAE95199009-199308

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12050iAE95199009-199308

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-12120iAE95199009-199308

58311PAN, REAR FLOOR

main58311-12190iAE95199009-199308

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12230iAE95199009-199308

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12230iAE95199009-199308

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12050iAE95199009-199308

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12050iAE95199009-199308

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12060iAE95199009-199308

58335DPACKING, REAR FLOOR SERVICE HOLE, RH

main58335-12010iAE95199009-199308

58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-12040iAE95199009-199308

58368BBRACKET, FUEL TUBE, NO.2

main58266-22040iAE95199009-199308

58369BBRACKET, FUEL TUBE, NO.3

main58266-22040iAE95199009-199308

58371CPANEL, BODY LOWER BACK, UPPER

main58371-12710iAE95199009-199308

64778APROTECTOR, SPARE WHEEL

main64778-12050iAE95..USA199009-199208

sub64778-12030

5833512010REINFORCEMENT, REAR BUMPER STAY, LH

main58335-12010

9018904002

main90189-04002

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001086

main90950-01086

9095001150

main90950-01150

9095001181

main90950-01181

9095001379

main90950-01379

9095001398

main90950-01398

9095001527

main90950-01527

9354014010

main93540-14010

57 parts on this diagram · 1 diagram in section
