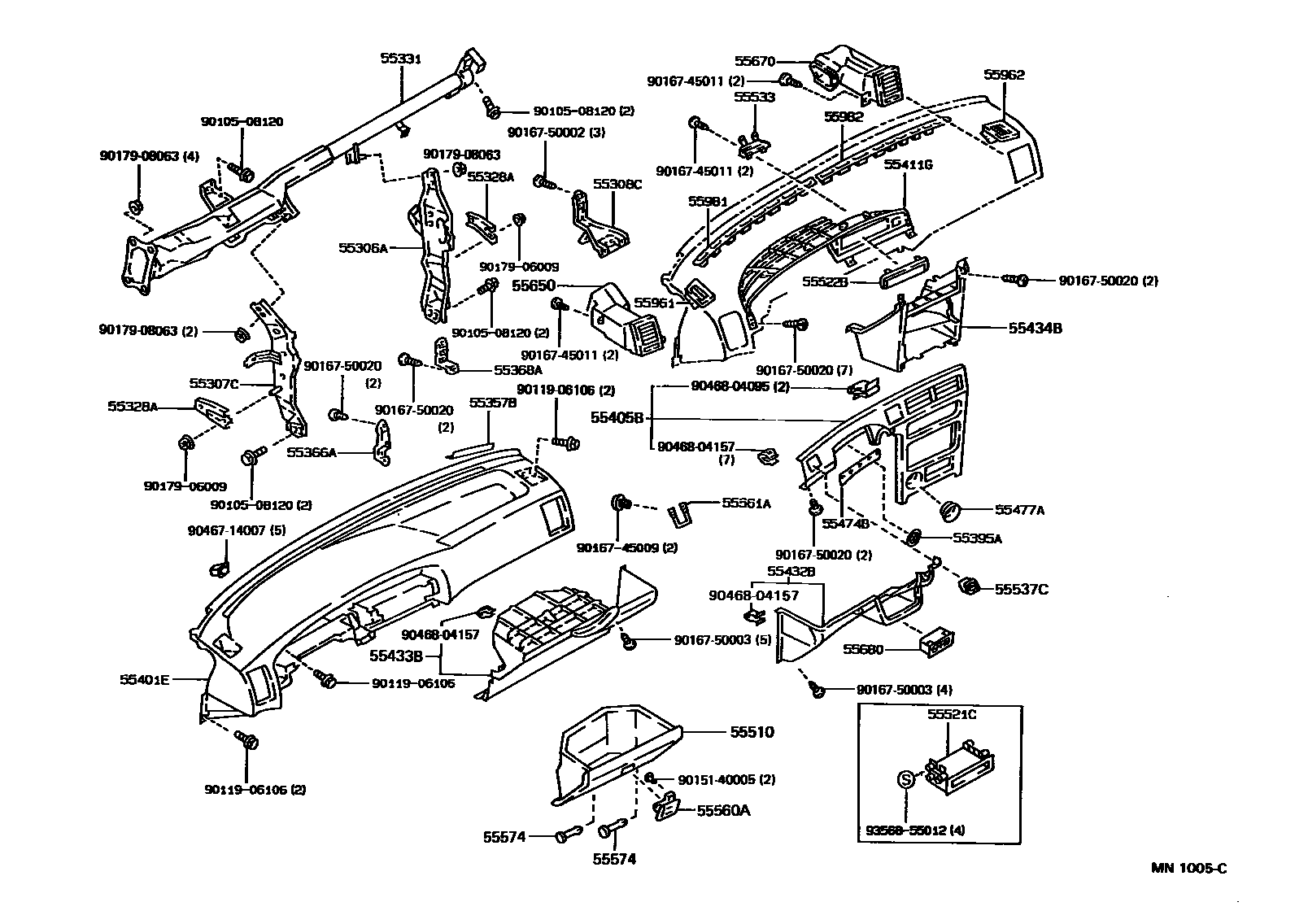

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328ASTAY, INSTRUMENT PANEL, NO.3
55331REINFORCEMENT, INSTRUMENT PANEL
55357BCUSHION, INSTRUMENT PANEL, NO.3
55366ABRACKET, RADIO MOUNTING, NO.1
55368ABRACKET, RADIO MOUNTING, NO.2
55395ARETAINER, INSTRUMENT PANEL CLAMP
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
55477ABEZEL, CIGARETTE LIGHTER HOLE
55510DOOR ASSY, GLOVE COMPARTMENT
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
55533COVER, AUTO CLOCK HOLE
55537CCOVER, REAR DEFOGGER SWITCH HOLE
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
55982GARNISH, DEFROSTER NOZZLE, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
9010508120
9011906106
9015140005
9016745009
9016745011
9016750002
9016750003
9016750020
9017906009
9017908063
9046714007
9046804095
9046804157
9356855012
46 parts on this diagram · 2 diagrams in section
