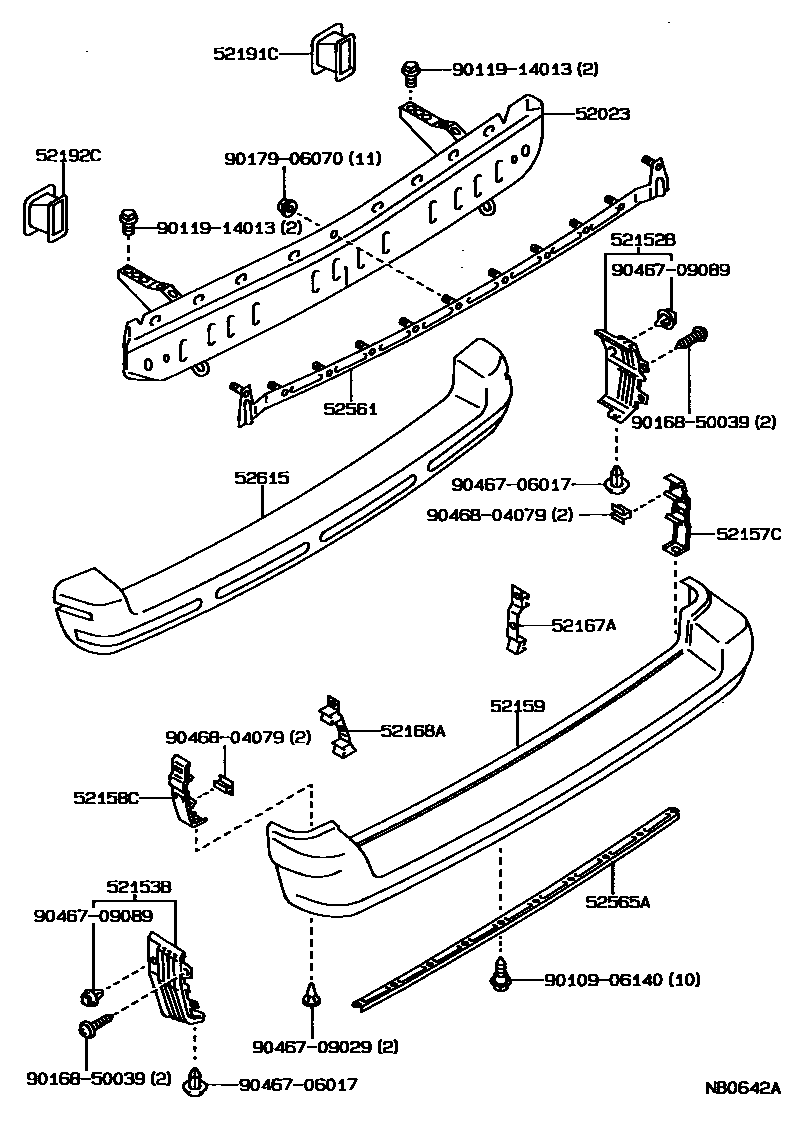

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
BLACK TYPE
COLORED TYPE
52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH
52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH
52191CSEAL, REAR BUMPER ARM, RH
52192CSEAL, REAR BUMPER ARM, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52615ABSORBER, REAR BUMPER ENERGY
9010906140
main90109-06140
9011914013
main90119-14013
9016850039
main90168-50039
9017906070
main90179-06070
9046706017
main90467-06017
9046709029
main90467-09029
9046709089
main90467-09089
9046804079
main90468-04079
21 parts on this diagram · 1 diagram in section
