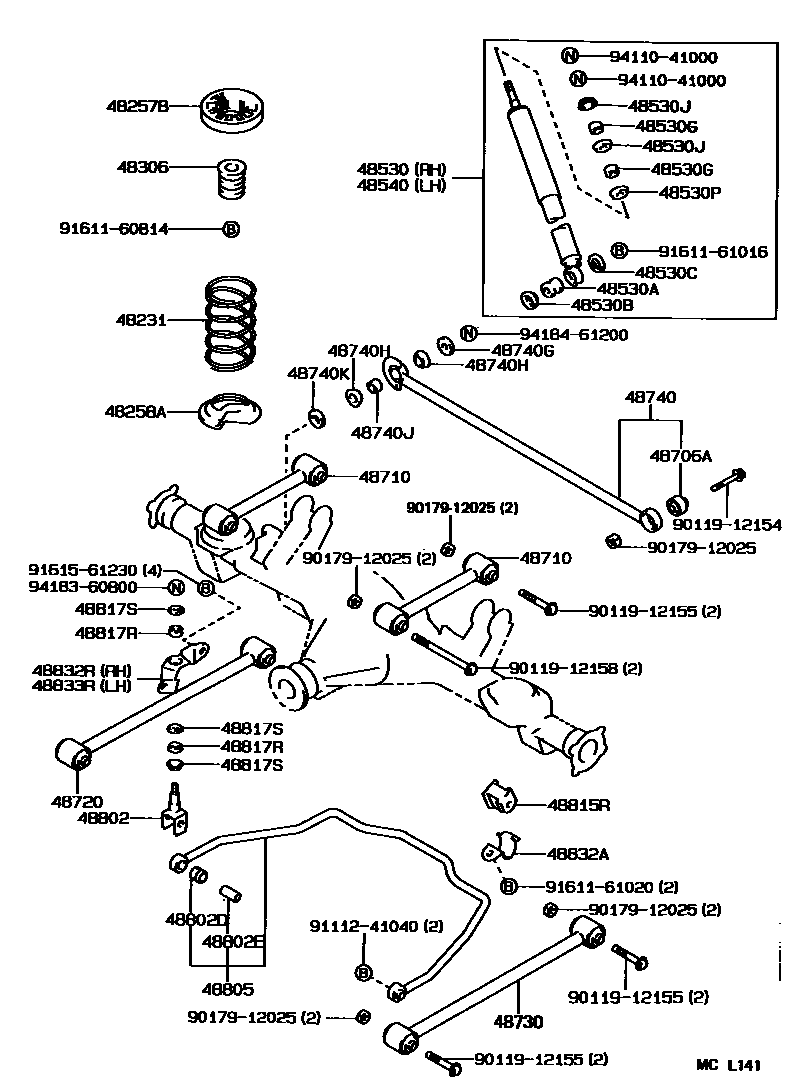

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-80437
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
RH
LH
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
UPR
LWR
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-80437
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)
48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
48740KWASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD)
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
sub48815-20021
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
UPR,LWR
CTR
48832ABRACKET, REAR STABILIZER BAR, NO.1
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9011912154
main90119-12154
9011912155
main90119-12155
9011912158
main90119-12158
9017912025
main90179-12025
9111241040
main91112-41040
9161160814
main91611-60814
9161161016
main91611-61016
9161161020
main91611-61020
9161561230
main91615-61230
9411041000
main94110-41000
9418360800
main94183-60800
9418461200
main94184-61200
43 parts on this diagram · 1 diagram in section
