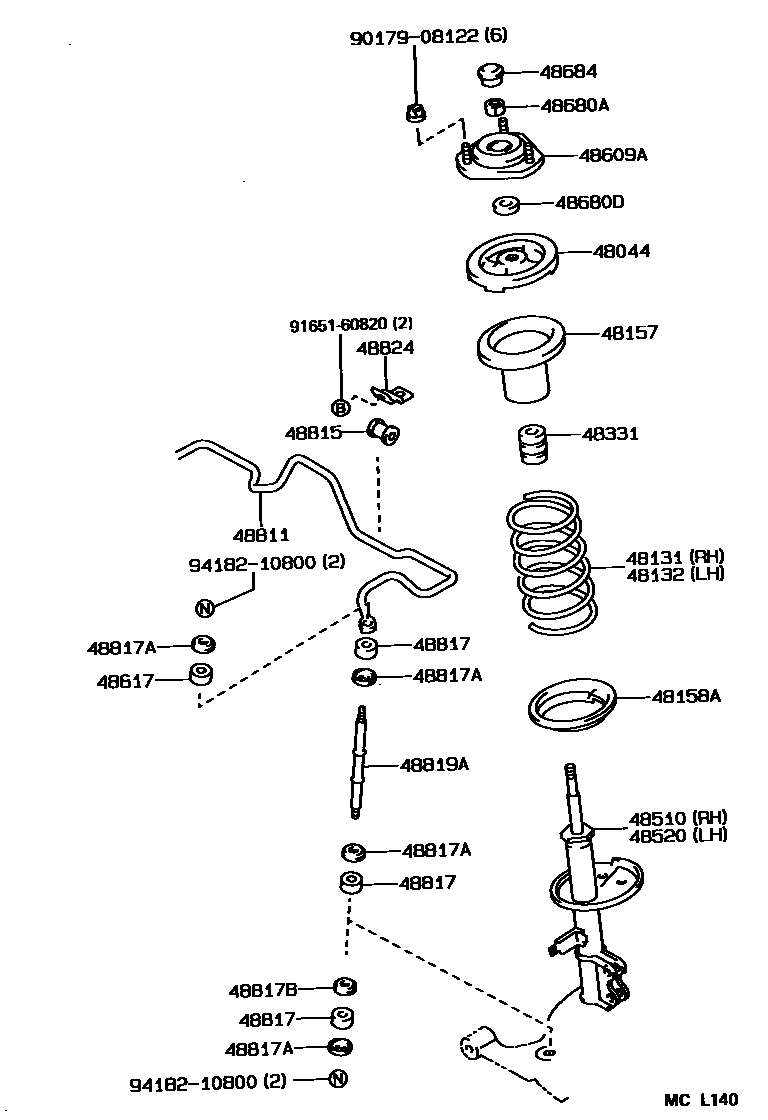

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-12090iAE95199009-199308

48131SPRING, FRONT COIL, RH

main48131-1K040iAE95..5F199009-199308

main48131-1K060iAE95..5F..USA199009-199208

W(AIR CONDITIONER)

main48131-1K060iAE95..4FC199009-199308

main48131-1K080iAE95..4FC..USA199009-199208

W(AIR CONDITIONER)

48132SPRING, FRONT COIL, LH

main48131-1K060iAE95..5F199009-199308

main48131-1K080iAE95..5F..USA199009-199208

W(AIR CONDITIONER)

main48131-1K080iAE95..4FC199009-199308

main48131-1K100iAE95..4FC..USA199009-199208

W(AIR CONDITIONER)

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12060iAE95199009-199308

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iAE95199009-199308

48331BUMPER, FRONT SPRING, NO.1

main48331-12130iAE95199108-199308

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12651iAE95199009-199308

sub48510-12650

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12521iAE95199009-199308

sub48520-12520

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-12192iAE95199009-199308

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAE95199009-199308

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE95199009-199308

48684COVER, BEARING DUST

main48684-32010iAE95199009-199308

48811BAR, STABILIZER, FRONT

main48811-12690iAE95199009-199308

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12180iAE95199009-199308

48817CUSHION, FRONT STABILIZER

main48817-30020iAE95199009-199308

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE95199009-199308

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE95199009-199308

48819ABOLT, FRONT STABILIZER

main48819-20030iAE95199009-199308

48824BRACKET, STABILIZER, FRONT

main48824-12090iAE95199009-199308

9017908122

main90179-08122

9165160820

main91651-60820

9418210800

main94182-10800

22 parts on this diagram · 1 diagram in section
