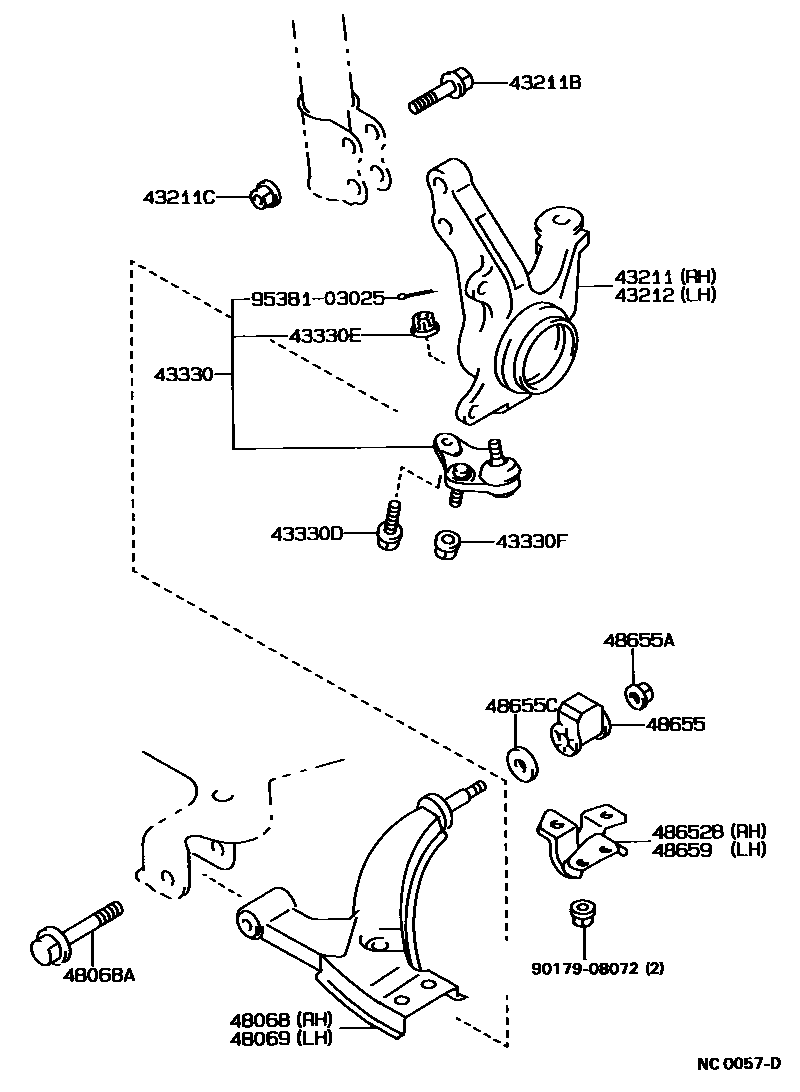

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12110iAE95..DX199009-199308

main43211-12120iAE95..SR5199009-199208

main43211-12120iAE95..DX199009-199308

W(POWER STEERING)

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001iAE95199009-199308

43211CNUT (FOR ABSORBER SETTING)

main90179-15001iAE95199009-199308

43212KNUCKLE, STEERING, LH

main43212-12070iAE95..DX199009-199308

main43212-12080iAE95..DX199009-199308

W(POWER STEERING)

main43212-12080iAE95..SR5199009-199208

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19066iAE95199009-199308

RH

main43340-19016iAE95199009-199308

LH

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12156iAE95199009-199308

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14003iAE95..DX199009-199208

main90171-14003iAE95..DX199009-199308

W(POWER STEERING)

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-12070iAE95199009-199308

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12110iAE95199009-199308

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-14023iAE95199009-199308

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12110iAE95199009-199308

48652BBRACKET, FRONT LOWER ARM, RH

main48652-12010iAE95199009-199308

48655BUSH, LOWER ARM, NO.2

main48655-12010iAE95199009-199106

sub48655-12060

main48655-12060iAE95199106-199308

48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)

main90179-14006iAE95199009-199308

48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02061iAE95199009-199308

48659BRACKET, FRONT LOWER ARM, LH

main48659-12010iAE95199009-199308

9017908072

main90179-08072

9538103025

main95381-03025

18 parts on this diagram · 1 diagram in section
