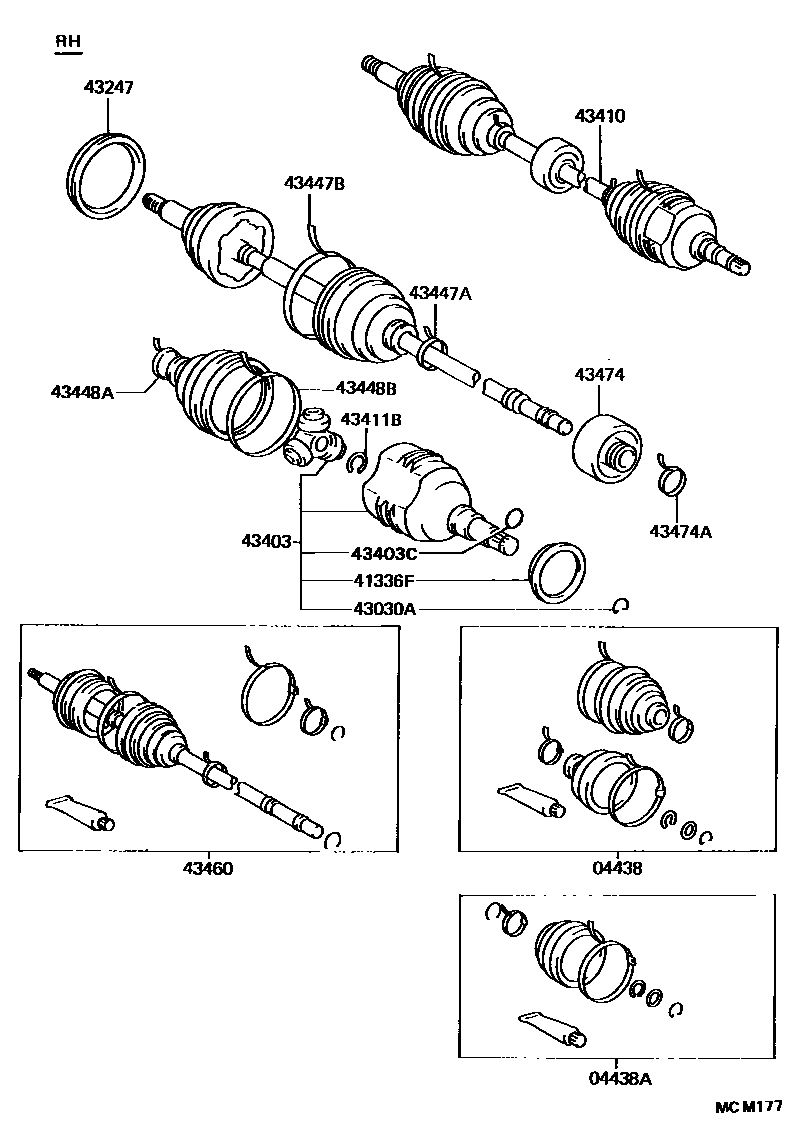

FRONT DRIVE SHAFT

0001 1 0002 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12300iAE95199208-199308

RH

sub04438-12301

main04438-12300iAE95199010-199208

sub04438-12301

main04438-32171iAE95199009-199010

sub04438-12301

main04438-32171iAE95199208-199308

LH

sub04438-12301

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-32161iAE95199009-199308

sub04438-32230

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12040iAE95199009-199308

RH

main41336-20040iAE95199009-199308

LH

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE95199009-199308

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011iAE95199009-199106

sub43247-33010

main43247-33010iAE95199106-199308

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12050iAE95199009-199308

43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)

main90301-26006iAE95199009-199308

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12180iAE95199009-199010

sub43410-12230

main43410-12250iAE95199010-199106

sub43410-12251

sub43525-20030

sub90179-22020

main43410-12251iAE95199106-199308

sub43410-42030

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE95199009-199308

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iAE95199009-199308

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAE95199009-199308

sub42345-12160

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078iAE95199009-199308

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01076iAE95199009-199308

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-19266iAE95199009-199010

sub43470-19267

sub43525-20030

sub90179-22020

main43470-19745iAE95199010-199308

sub43470-49015

43474DAMPER, DRIVE SHAFT

main43474-12030iAE95199010-199308

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01696iAE95199010-199308

16 parts on this diagram · 2 diagrams in section
