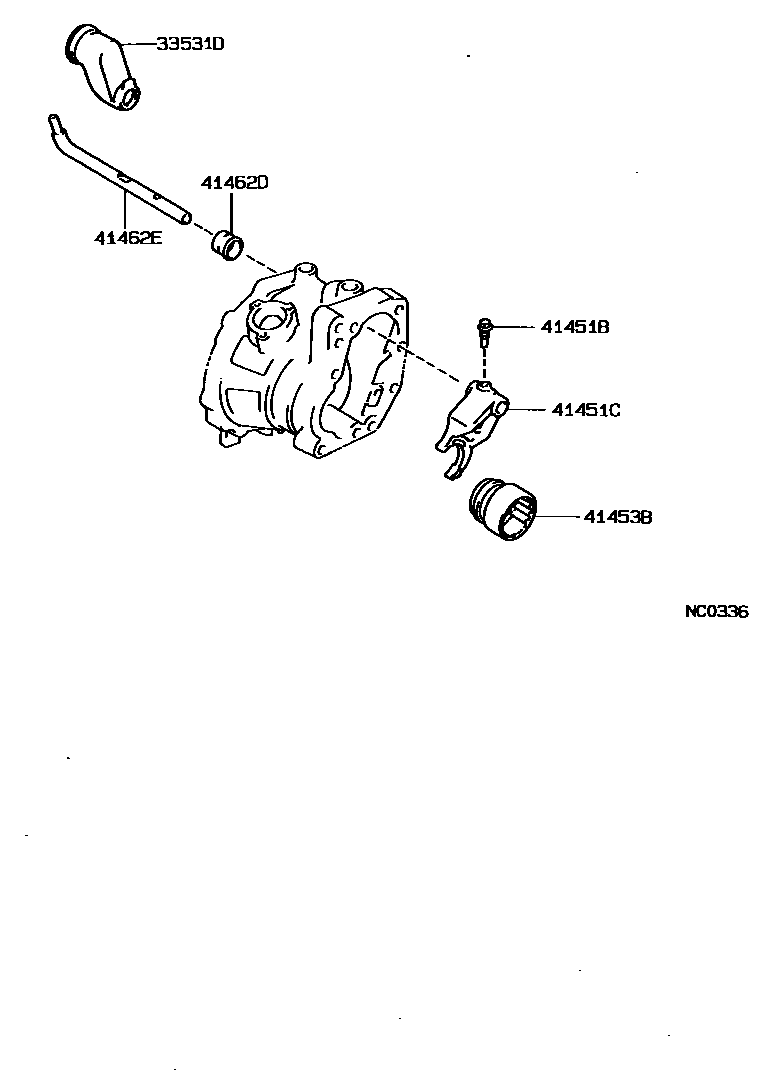

TRANSFER LEVER & SHIFT ROD

0001 1E57F5 0002 1A241H

33531DBOOT, DUST (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main33531-12010iAE95..5F199009-199308

41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)

main90105-06094iAE95..5F199009-199308

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-12010iAE95..5F199009-199308

main41451-12030iAE95..4FC199009-199308

41453BSLEEVE, DIFFERENTIAL LOCK

main41453-12010iAE95..5F199009-199308

main41453-12030iAE95..4FC199009-199308

41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main90311-14007iAE95..5F199009-199308

41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK

main41462-12010iAE95..5F199009-199308

main41462-12030iAE95..4FC199009-199308

6 parts on this diagram · 2 diagrams in section
