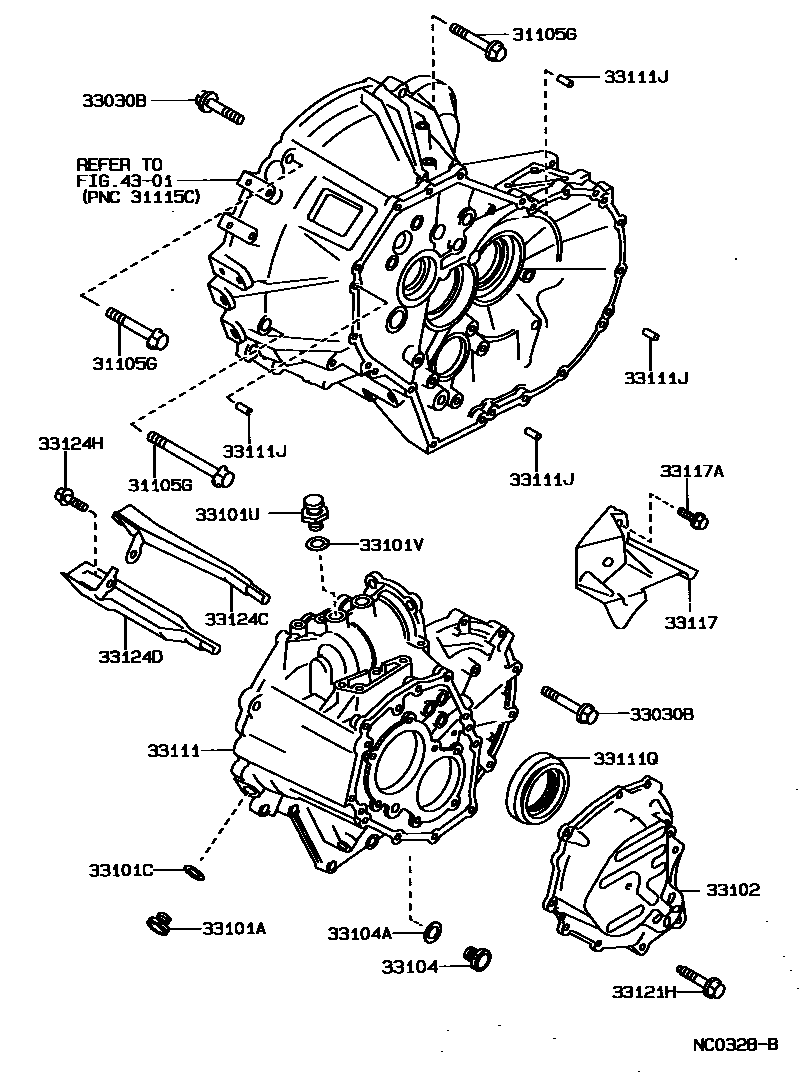

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077i199009-199308

*10-1.25PX43-26

main90119-12128i199009-199308

*12-1.25PX96-30

main90119-12168i199009-199308

*12-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08126i199009-199308

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033i199009-199308

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199009-199308

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111i199009-199308

sub90930-03148

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008i199009-199308

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12030i199009-199106

sub33102-12040

main33102-12040i199106-199205

sub33102-12041

sub33124-12041

main33102-12041i199205-199308

sub33102-12042

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199009-199308

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199009-199308

33111CASE, MANUAL TRANSMISSION

main33101-12151i199009-199201

sub33101-12160

sub33261-12070

sub90364-15003

main33101-12160i199201-199308

sub33101-12161

sub90311-50027

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i199009-199308

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-44003i199009-199308

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020i199009-199308

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040i199009-199308

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630i199009-199308

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12030i199009-199308

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12040i199009-199205

sub33124-12041

main33124-12041i199205-199308

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648i199009-199308

sub90119-08830

4301

19 parts on this diagram · 1 diagram in section
