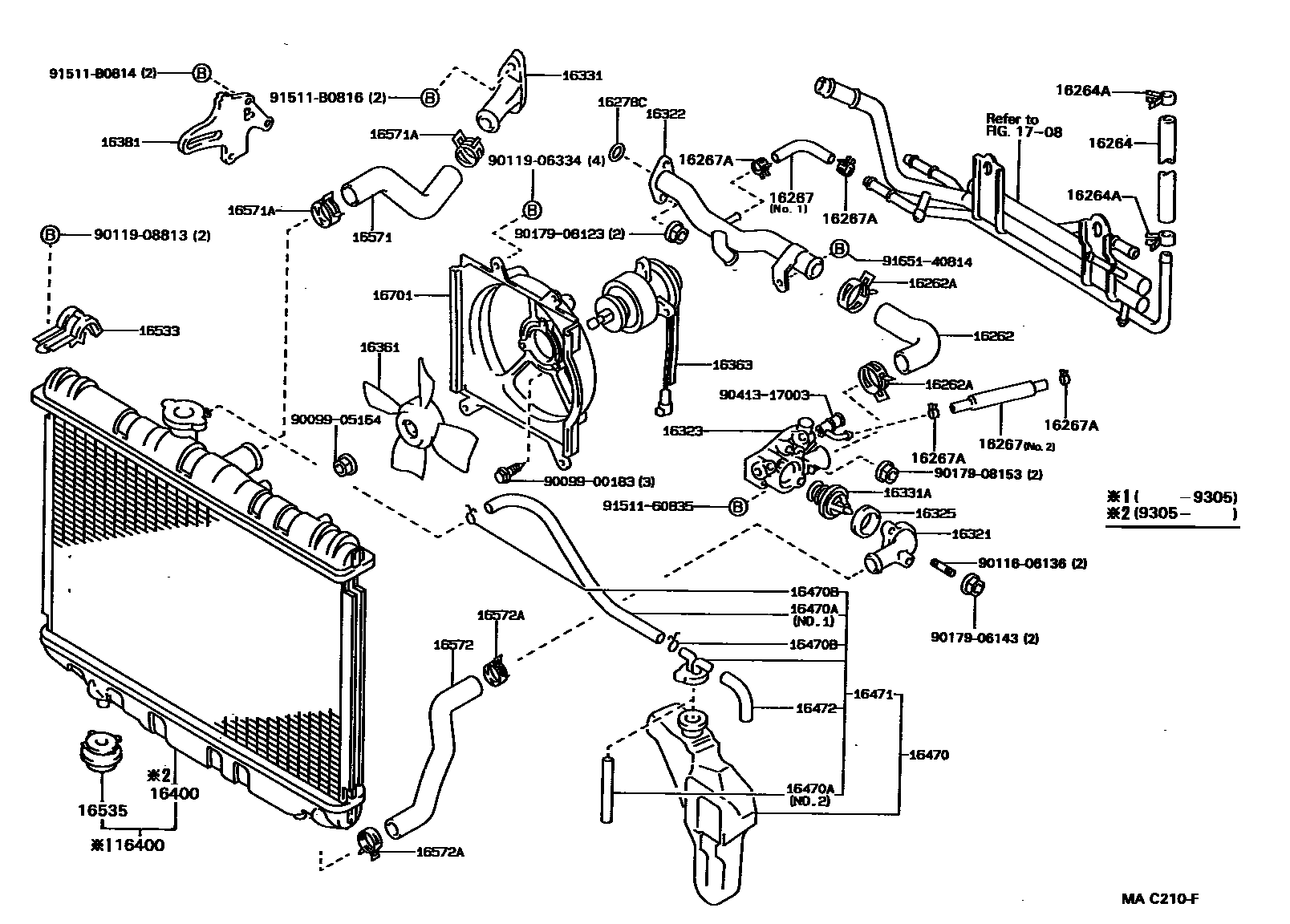

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16264HOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
NO.1
NO.1
NO.2
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16321INLET, WATER
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600,NO.2
L=460,NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16701SHROUD SUB-ASSY, FAN
1708
9009900183
main90099-00183
9009905164
main90099-05164
9011606136
main90116-06136
9011906334
main90119-06334
9011908813
main90119-08813
9017906143
main90179-06143
9017908123
main90179-08123
9017908153
main90179-08153
9041317003
main90413-17003
9151160835
main91511-60835
91511B0814
main91511-B0814
91511B0816
main91511-B0816
9165140814
main91651-40814
43 parts on this diagram · 2 diagrams in section
