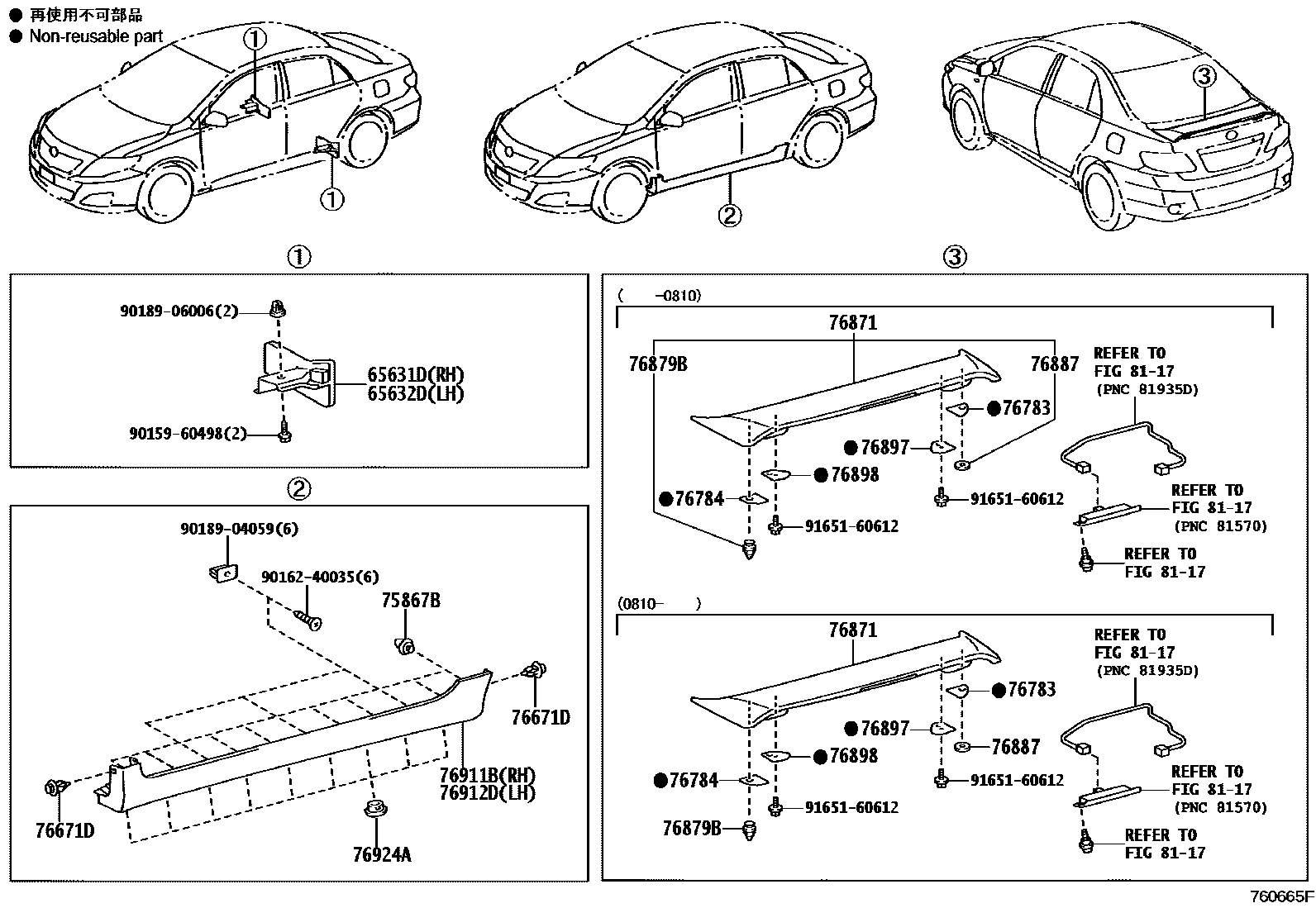

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75867BCLIP, ROCKER PANEL MOULDING
76671DCLIP, SIDE MUDGUARD
76783TAPE, REAR SPOILER, LOWER RH
76784TAPE, REAR SPOILER, LOWER LH
76871SPOILER, REAR
76879BCLIP, REAR SPOILER, NO.2
76887SEAL, REAR SPOILER
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76911BMUDGUARD, SIDE, RH
76912DMUDGUARD, SIDE, LH
76924ARETAINER, SIDE MUDGUARD, NO.2
8117
9015960498
main90159-60498
9016240035
main90162-40035
9018904059
main90189-04059
9018906006
main90189-06006
9165160612
main91651-60612
20 parts on this diagram · 2 diagrams in section
