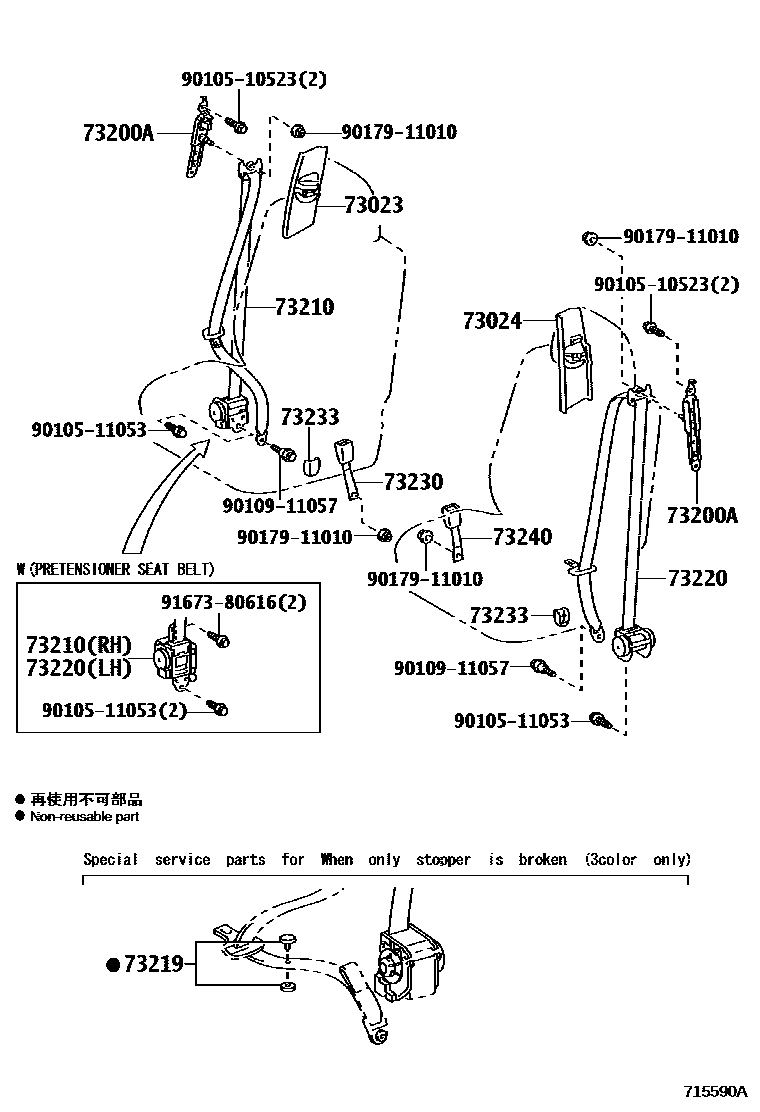

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B2iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

sub73023-33020¥2,070

main73023-33020-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

sub73023-33020¥2,070

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B2iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

sub73024-33020¥2,070

main73024-33020-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

sub73024-33020¥2,070

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02120iZRE14#;ZZE142..CNG200803-201105

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02440-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201008

GRAY,TRIM1#

sub73210-02441

main73210-02440-E0iZRE143,ZZE142..ALT,CE,SEG200803-201008

GREGE,TRIM4#

sub73210-02441

main73210-02441-B0iZZE142..VEN201009-201105

GRAY,TRIM1#

main73210-02441-E0iZRE143,ZZE142..ALT,CE,SEG201009-201103

GREGE,TRIM4#

main73210-02442-B0iZRE142..ATM..XEI;ZRE142,ZZE142..CNG,HTWCF201103-201411

GRAY,TRIM1#

main73210-02442-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main73210-02442-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main73210-02442-E0iZRE14#..ALT,SEG201103-201403

GREGE,TRIM4#

main73210-02451-B0iZRE142..XLI201103-201403

GRAY,TRIM1#

main73210-02470-B0iZZE142..VEN200809-201011

GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-02010iZRE14#;ZZE142..CNG¥80201103

BLACK,BLACK

main73219-02010iZZE142..CNG¥80200803-201105

BLACK

main73219-02020iZRE143¥80200803-201105

GRAY

main73219-02020iZRE14#;ZZE142..CNG¥80201103

GRAY,GRAY

main73219-02030iZZE142..SEG..HTWCF¥80200803-201105

BEIGE

main73219-02030iZRE14#;ZZE142..CNG¥80201103

BEIGE,BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02400-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201008

GRAY,TRIM1#

sub73220-02401

main73220-02400-E0iZRE143,ZZE142..ALT,CE,SEG200803-201008

GREGE,TRIM4#

sub73220-02401

main73220-02401-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)201009-201105

GRAY,TRIM1#

main73220-02401-E0iZRE143,ZZE142..ALT,CE,SEG201009-201103

GREGE,TRIM4#

main73220-02402-B0iZRE143..XEI;ZRE142..MTM..XEI201103-201411

GRAY,TRIM1#

main73220-02402-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main73220-02402-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main73220-02402-E0iZRE14#..ALT,SEG201103-201403

GREGE,TRIM4#

main73220-02411-B0iZRE142..XLI201103-201403

GRAY,TRIM1#

main73220-02430-B0iZZE142..VEN200809-201011

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02530-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201008

GRAY,TRIM1#

sub73230-02531

main73230-02530-E0iZRE143,ZZE142..ALT,CE,SEG200803-201008

GREGE,TRIM4#

sub73230-02531

main73230-02531-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)201009-201105

GRAY,TRIM1#

main73230-02531-E0iZRE143,ZZE142..ALT,CE,SEG201009-201103

GREGE,TRIM4#

main73230-02532-B0iZRE143..XEI;ZRE142..MTM..XEI201103-201411

GRAY,TRIM1#

main73230-02532-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main73230-02532-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main73230-02532-E0iZRE14#..ALT,SEG201103-201403

GREGE,TRIM4#

main73230-02540-B0iZZE142..VEN200809-201011

GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

DK.GRAY,TRIM1#

sub73233-60020¥500

main73233-12050-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

sub73233-60020¥500

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02530-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201008

GRAY,TRIM1#

sub73230-02531

main73230-02530-E0iZRE143,ZZE142..ALT,CE,SEG200803-201008

GREGE,TRIM4#

sub73230-02531

main73230-02531-B0iZRE143,ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)201009-201105

GRAY,TRIM1#

main73230-02531-E0iZRE143,ZZE142..ALT,CE,SEG201009-201103

GREGE,TRIM4#

main73230-02532-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main73230-02532-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI201103-201411

GRAY,TRIM1#

main73230-02532-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main73230-02532-E0iZRE14#..ALT,SEG201103-201403

GREGE,TRIM4#

main73230-02540-B0iZZE142..VEN200809-201011

GRAY,TRIM1#

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911057

main90109-11057¥160

9017911010

main90179-11010¥110

9167380616

main91673-80616¥60

14 parts on this diagram · 2 diagrams in section
